BKL Electrical Junction Box

Name: BKL Electrical Junction Box
Brand: KAIWEI
SKU: 106338889
Availability: InStock

Shanghai Kaiwei Electric Equipment Co., Ltd.

US$ 36 - 296 MOQ: 1 Set

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KAIWEI

Model Number:

BKL1515080304

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KAIWEI

Model Number BKL1515080304

Protection Level Other, IP56

Type Junction Box

External Size 150mm*150mm*80mm

Specifications

BKL electrical junction box
1.Multiple Protection grooves can prevent the entry of dirt or water
2.IP56

Product Description

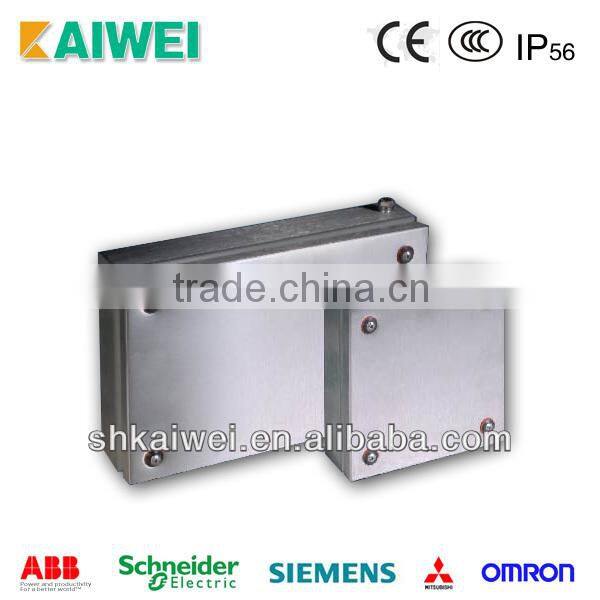

BKL electrical junction box

1. Material: SUS304(Other material can be optional)

2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing

Item Name:		BKL electrical junction box
Material:		SUS304(Other material can be optional)
Thickness:		Box Body:1.5mm Door Plate:1.5mm Mounting Plate:2.5mm

Standard Configuration:		Box Body,Door Plate,Sealing Strip,Cover Screw,Mounting Plate(optional)

Surface Treatment:		Wire Drawing,Mounting Plate is Galvanized


Class of Protection:		IP56(According to GB4205-1993) PU Foaming Sealing

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

Details:

Main advantage of BKL electrical junction box :

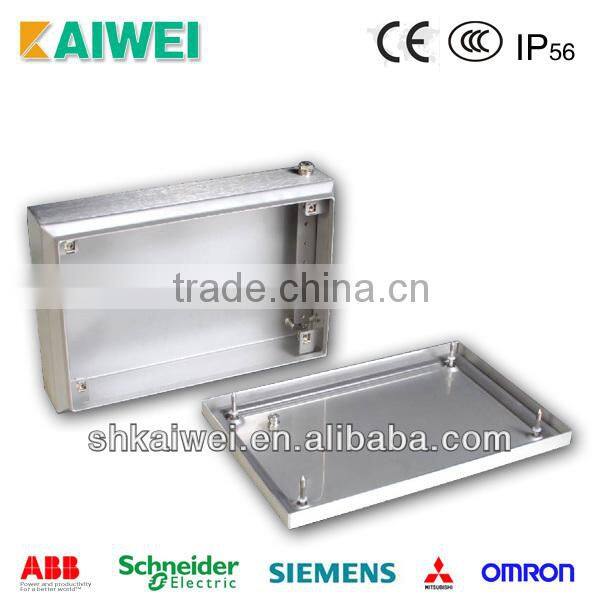

The door plate and box body are installed with special screws and retainers in accordance with common standards, which can ensure the protection class and operation and maintenance in the narrow space in the box.
Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened.
PU foaming sealing strip ensures a protection class of IP56 to box body.
The grounding line can be connected to box body and door plate.

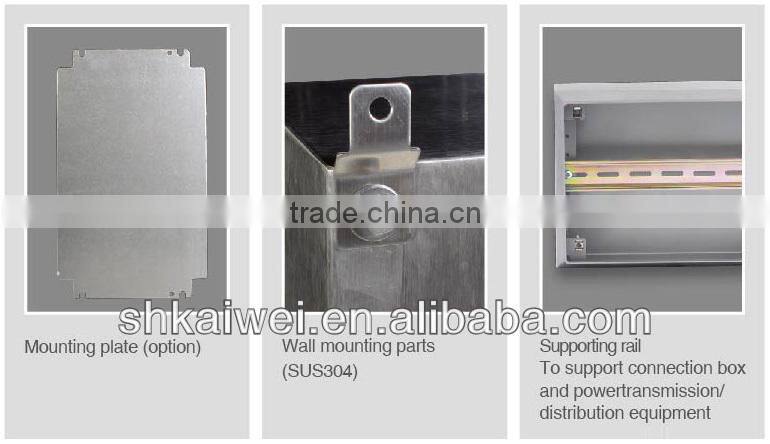

Racks with screw holes are provided on both sides of the box to ensure the max mounting height and ensures the installation of supporting rail or mounting plate.
The special plastic insulating sleeve can provide sealing and prevent door plate screw loosening, and guide screws when they are tightened.
Surface wire drawing treatment(sand blasting is available in high-class box)
