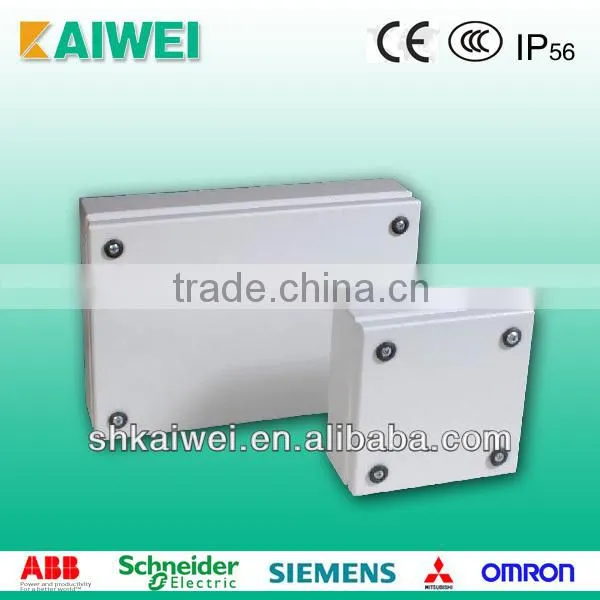

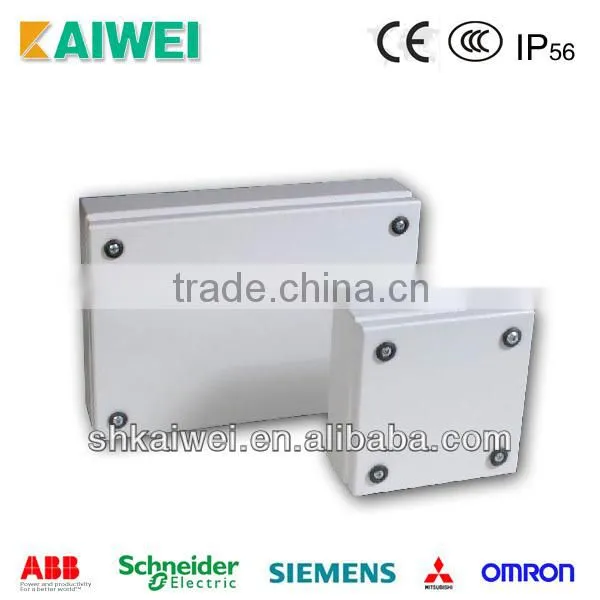

KL Electrical Distribution Box

Name: KL Electrical Distribution Box
Brand: KAIWEI
SKU: 106338797
Availability: InStock

US$ 12 - 100 MOQ: 100 Sets

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KAIWEI

Model Number:

KL151508002

Shanghai Kaiwei Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KAIWEI

Model Number KL151508002

Protection Level IP55

Type Junction Box

External Size 150mm*150mm*80mm

Specifications

1.Multiple Protection grooves can prevent the entry of dirt or water
2.PU foaming sealing strip ensures a protection class IP56

KL electrical distribution box

1. Material: Cold Rolled Steel Sheet

2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035.

3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing

Item Name:		KL electrical distribution box
Material:		Cold Rolled Steel Sheet
Thickness:		Box Body:1.5mm Door Plate:1.5mm Mounting Plate:2.5mm

Standard Configuration:		Box Body,Door Plate,Sealing Strip,Cover Screw,Mounting Plate(optional)

Surface Treatment:		Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035


Class of Protection:		IP56(According to GB4205-1993) PU Foaming Sealing

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

Details:

Main advantage of KL electrical distribution box:

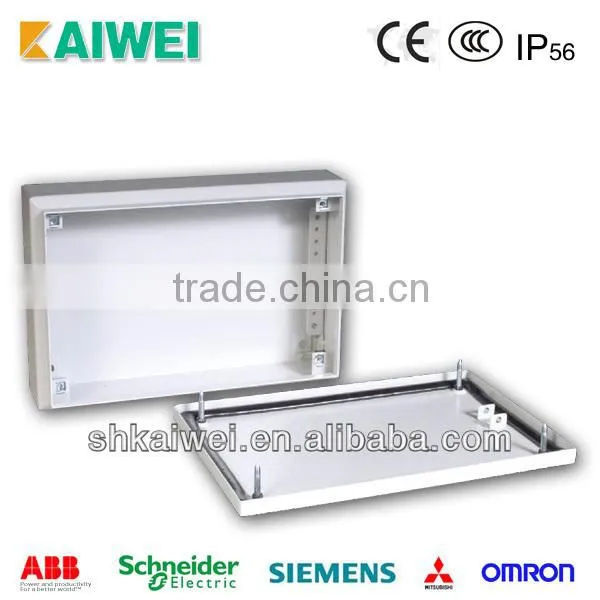

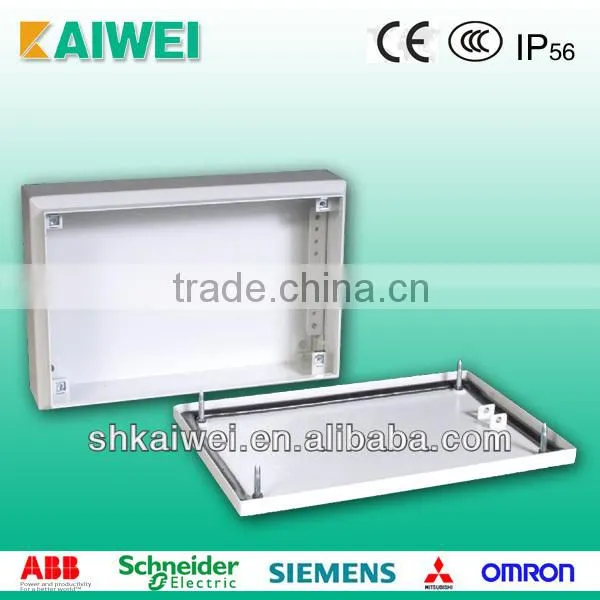

The door plate and box body are installed with special screws and retainers in accordance with common standards, which can ensure the protection class and operation and maintenance in the narrow space in the box.
Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened.
PU foaming sealing strip ensures a protection class of IP56 to box body.
The grounding line can be connected to box body and door plate.

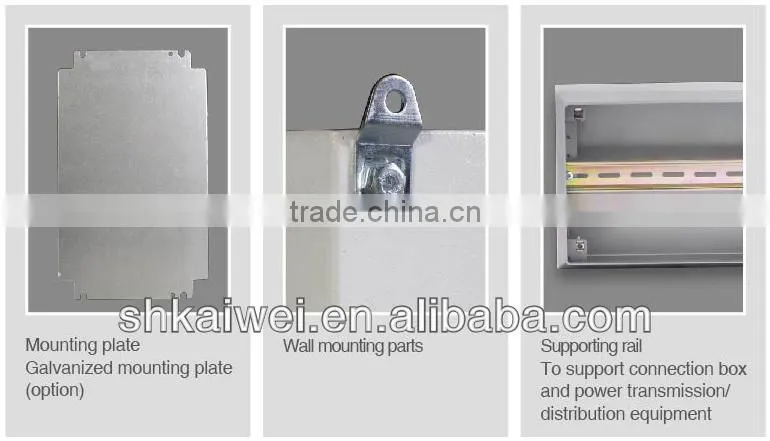

Racks with screw holes are provided on both sides of the box to ensure the max mounting height and ensures the installation of supporting rail or mounting plate.
The special plastic insulating sleeve can provide sealing and prevent door plate screw loosening, and guide screws when they are tightened.
