Home > Electrical & Electronics > Telecommunication & Broadcasting > Network Cabinet > PS Combination Desk and Cabinet

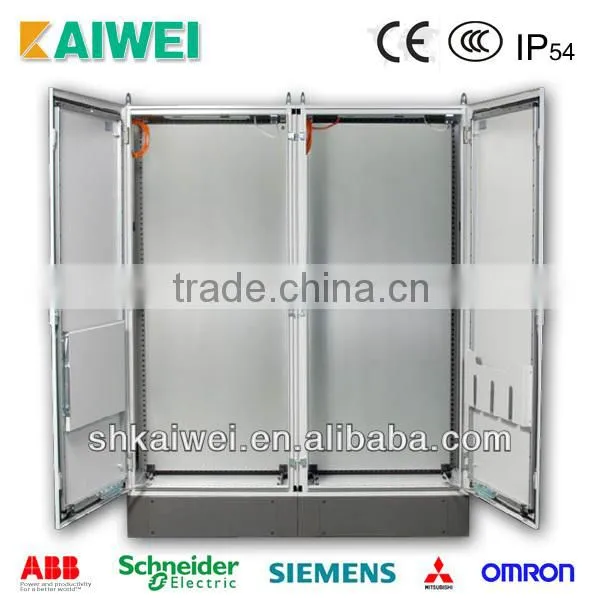

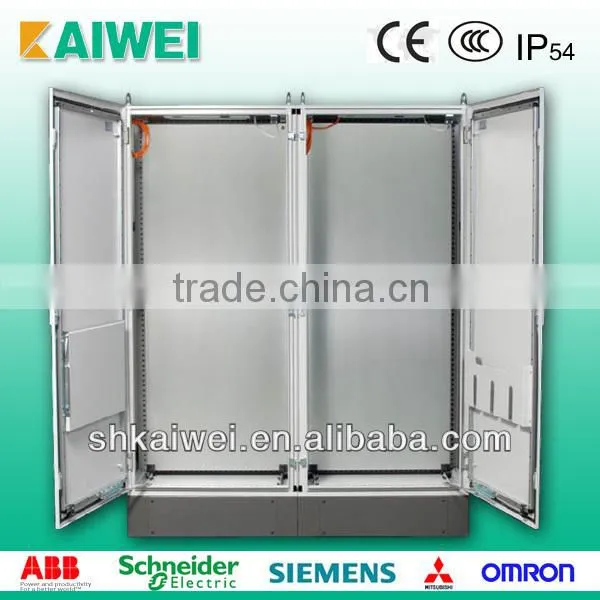

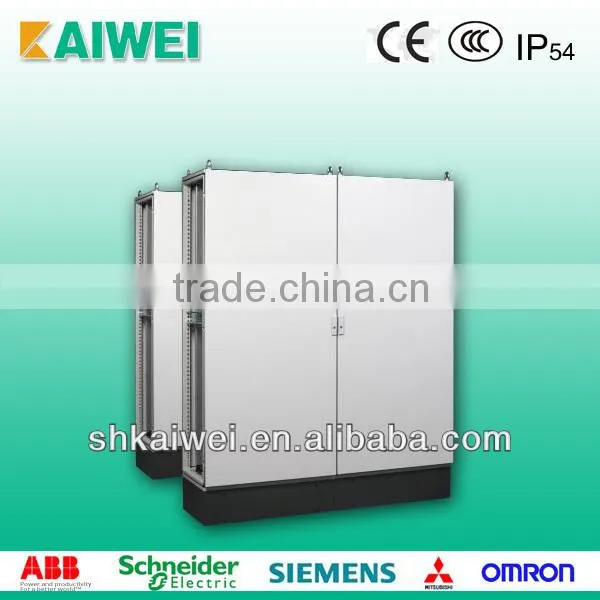

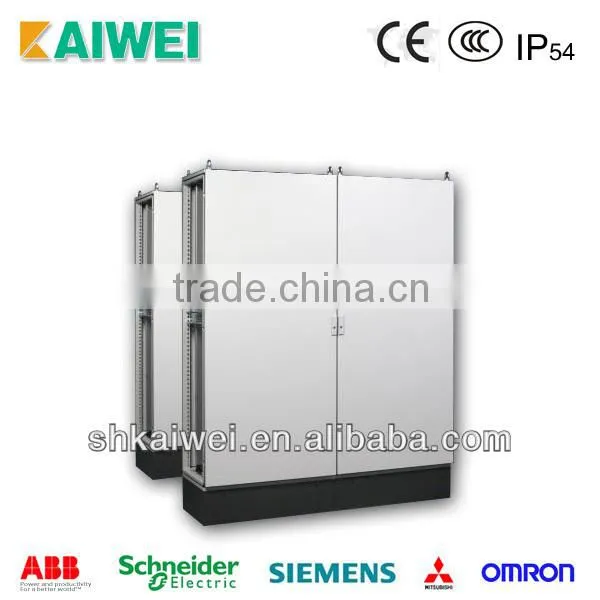

PS Combination Desk and Cabinet

Name: PS Combination Desk and Cabinet
Brand: KAIWEI
SKU: 106338065
Availability: InStock

PS Combination Desk and Cabinet thumbnail-1

PS Combination Desk and Cabinet thumbnail-2

PS Combination Desk and Cabinet thumbnail-3

PS Combination Desk and Cabinet thumbnail-4

US$ 376 - 619 MOQ: 100 Sets

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

KAIWEI

Model Number:

PS601840002

Contact Supplier Request Quote Chat Now

Shanghai Kaiwei Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name KAIWEI

Model Number PS601840002

Protection Level IP54

Type Other, Control Cabinet

External Size 600mm*1800mm*400mm

Specifications

1.Unique main body frame integrally welded with 5-fold section ensures high strength and IP56
2.Easy disassembly and transport

PS combination desk and cabinet

1. Material: Cold Rolled Steel Sheet

2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP54(According to GB4205-1993)

Item Name:		PS combination desk and cabinet
Material:		Cold Rolled Steel Sheet
Thickness:		Frame:9-fold Sections 1.5mm Door Plate:2.0mm Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)

Standard Configuration:		Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip,Side Plate(optional)

Surface Treatment:		Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.


Class of Protection:		IP54(According to GB4205-1993)

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

No.	Order number of cabinet body(RAL7032)	Order number of side plate(RAL7032)	Order number of cabinet body(RAL7035)	Order number of side plate(RAL7035)	Width	Height	Depth
No.	Order number of cabinet body(RAL7032)	Order number of side plate(RAL7032)	Order number of cabinet body(RAL7035)	Order number of side plate(RAL7035)	Width	Height	Depth
1	PS601840002	PS1840002	PS601840005	PS1840005	600	1800	400
2	PS801840002	PS1840002	PS801850005	PS1850005	800	1800	400
3	PS101840002	PS1840002	PS101840005	PS1840005	1000	1800	400
4	PS121840002	PS1840002	PS121840005	PS1840005	1200	1800	400
5	PS601850002	PS1850002	PS601850005	PS1850005	600	1800	500
6	PS801850002	PS1850002	PS801850005	PS1850005	800	1800	500
7	PS121850002	PS1850002	PS121850005	PS1850005	1200	1800	500
8	PS601860002	PS1860002	PS601860005	PS1860005	600	1800	600
9	PS801860002	PS1860002	PS801860005	PS1860005	800	1800	600
10	PS121860002	PS1860002	PS121860005	PS1860005	1200	1800	600
11	PS602040002	PS2040002	PS602040005	PS2040005	600	2000	400
12	PS802040002	PS2040002	PS802040005	PS2040005	800	2000	400
13	PS122040002	PS2040002	PS122040005	PS2040005	1200	2000	400
14	PS602050002	PS2050002	PS602050005	PS2050005	600	2000	500
15	PS802050002	PS2050002	PS802050005	PS2050005	800	2000	500
16	PS102050002	PS2050002	PS102050005	PS2050005	1000	2000	500
17	PS122050002	PS2050002	PS122050005	PS2050005	1200	2000	500
18	PS602060002	PS2060002	PS602060005	PS2060005	600	2000	600
19	PS802060002	PS2060002	PS802060005	PS2060005	800	2000	600
20	PS102060002	PS2060002	PS102060005	PS2060005	1000	2000	600
21	PS122060002	PS2060002	PS122060005	PS2060005	1200	2000	600
22	PS602080002	PS2080002	PS602080005	PS2080005	600	2000	800
23	PS802080002	PS2080002	PS802080005	PS2080005	800	2000	800
24	PS122080002	PS2080002	PS122080005	PS2080005	1200	2000	800
25	PS602260002	PS2260002	PS602260005	PS2260005	600	2200	600
26	PS802260002	PS2260002	PS802260005	PS2260005	800	2200	600
27	PS122260002	PS2260002	PS122260005	PS2260005	1200	2200	600

Details:

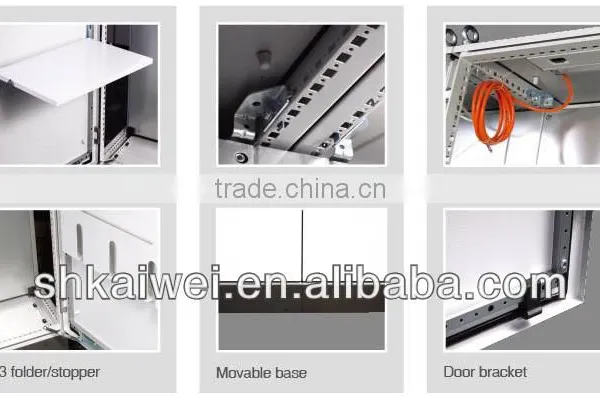

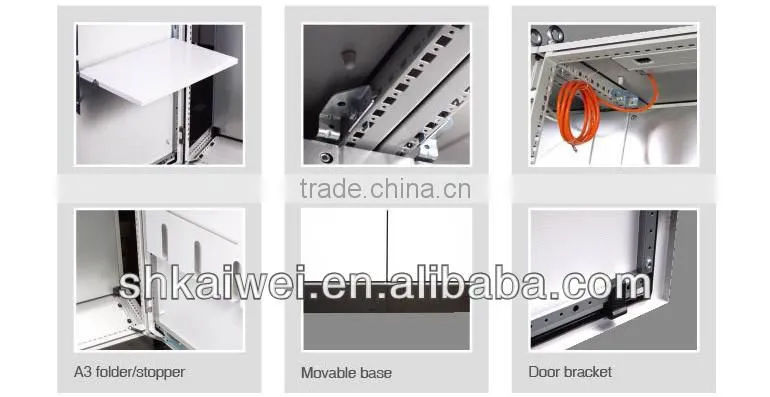

Main advantage of PS combination desk and cabinet :

Combined electric cabinet, suitable for combination.
The top plate can be removable and the side plate is demountable, make working easier and simpler.
High door plate (approx 25mm from the ground), to ensure smooth door opening.
Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.
Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.
