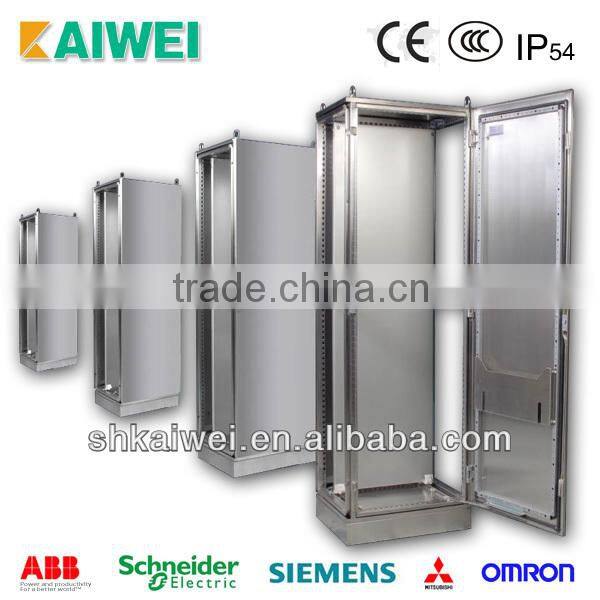

BPS Outdoor Stainless Steel Cabinets

Name: BPS Outdoor Stainless Steel Cabinets
Brand: KAIWEI
SKU: 106337515
Availability: InStock

Shanghai Kaiwei Electric Equipment Co., Ltd.

US$ 1,185 - 2,907 MOQ: 100 Sets

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

KAIWEI

Model Number:

BPS6018400304

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name KAIWEI

Model Number BPS6018400304

Protection Level IP54

Type Other, Control Cabint

External Size 600mm*1800mm*400mm

Specifications

1.Unique main body frame integrally welded with 9-fold section ensures high strength and IP56
2.Easy disassembly and transport

BPS outdoor stainless steel cabinets

1. Material: SUS304(Other material can be optional)

2. Surface Treatment: Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP54(According to GB4205-1993)

Item Name:		BPS outdoor stainless steel cabinets
Material:		SUS304(Other material can be optional)
Thickness:		Frame:9-fold Sections 1.5mm Door Plate:2.0mm Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)

Standard Configuration:		Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip,Side Plate(optional)

Surface Treatment:		Wire Drawing,Mounting Plate is Galvanized


Class of Protection:		IP54(According to GB4205-1993)

MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized

Details:

Main advantage of BPS outdoor stainless steel cabinets:

Combined electric cabinet, suitable for combination.
The top plate can be removable and the side plate is demountable, make working easier and simpler.
High door plate (approx 25mm from the ground), to ensure smooth door opening.
Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.

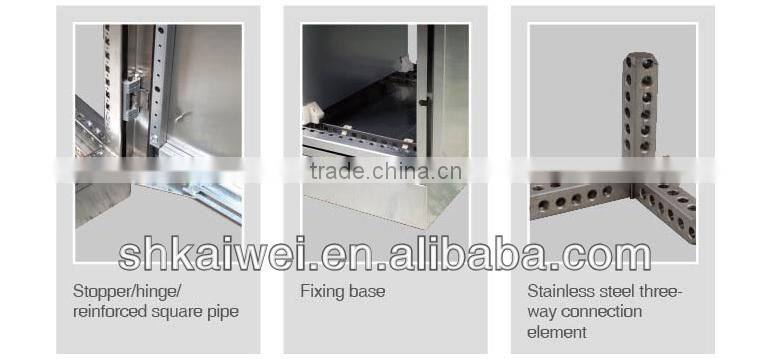

Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.
Professional stainless steel turnoff lock, stainless steel bearing suspension loops and other accessories having various functions show luxury character of the cabinet box.
