Distribution Box Type Outdoor Stainless Steel Cabinet With Hinge Low Price OEM CE Certificate

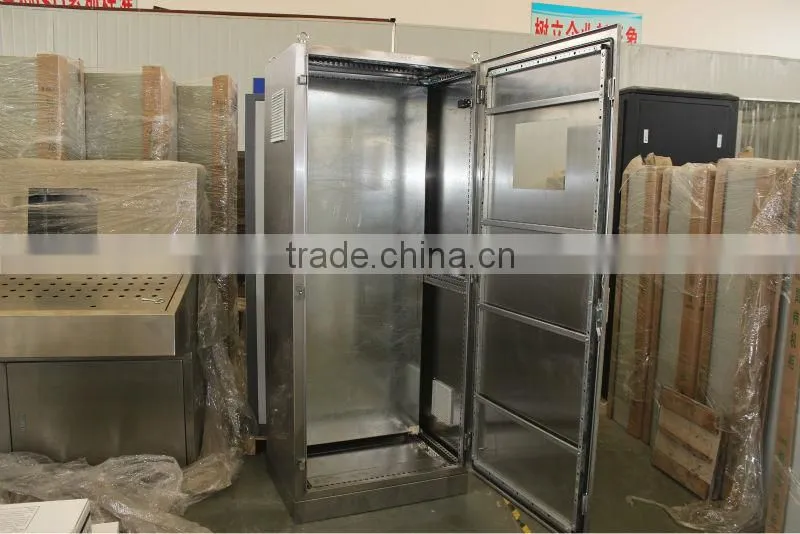

Distribution Box Type Outdoor Stainless Steel Cabinet With Hinge Low Price OEM CE Certificate photo-1
US$ 60 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
BPS6018400304
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name KAIWEI
Model Number BPS6018400304
Protection Level IP54
Type Other, Control Cabinet
External Size 600mm*1800mm*400mm

Specifications

BPS modular cabinet
1.High strength and IP54
2.Easy disassembly and transport


Product Description

BPS outdoor stainless steel cabinet

1. Material:  SUS304(Other material can be optional)

2. Surface Treatment:  Wire Drawing,Mounting Plate is Galvanized

3. Class of Protection: IP54(According to GB4205-1993)

 distribution box type outdoor stainless steel cabinet with hinge low price OEM CE certificatedistribution box type outdoor stainless steel cabinet with hinge low price OEM CE certificatedistribution box type outdoor stainless steel cabinet with hinge low price OEM CE certificate


Item Name: BPS outdoor stainless steel cabinet
Material: SUS304(Other material can be optional)
Thickness: Frame:9-fold Sections 1.5mm Door Plate:2.0mm   Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)
Standard Configuration: Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip,Side Plate(optional)
Surface Treatment: Wire Drawing,Mounting Plate is Galvanized
Class of Protection: IP54(According to GB4205-1993)
MOQ: 100 PCS
Supply Ability: 10000 PCS/Month
Delivery Time: 10-15 days
Remark: Special Demands Can Be Customized






No.

Order number of cabinet body
Order number of side plate
Width

Height

Depth
1 BPS6018400304 BPS18400304 600 1800 400
2 BPS8018400304 BPS18400304 800 1800 400
3 BPS1018400304 BPS18400304 1000 1800 400
4 BPS1218400304 BPS18400304 1200 1800 400
5 BPS6018500304 BPS18500304 600 1800 500
6 BPS8018500304 BPS18500304 800 1800 500
7 BPS1218500304 BPS18500304 1200 1800 500
8 BPS6018600304 BPS18600304 600 1800 600
9 BPS8018600304 BPS18600304 800 1800 600
10 BPS1218600304 BPS18600304 1200 1800 600
11 BPS6020400304 BPS20400304 600 2000 400
12 BPS8020400304 BPS20400304 800 2000 400
13 BPS1220400304 BPS20400304 1200 2000 400
14 BPS6020500304 BPS20500304 600 2000 500
15 BPS8020500304 BPS20500304 800 2000 500
16 BPS1020500304 BPS20500304 1000 2000 500
17 BPS1220500304 BPS20500304 1200 2000 500
18 BPS6020600304 BPS20600304 600 2000 600
19 BPS8020600304 BPS20600304 800 2000 600
20 BPS1020600304 BPS20600304 1000 2000 600
21 BPS1220600304 BPS20600304 1200 2000 600
22 BPS6020800304 BPS20800304 600 2000 800
23 BPS8020800304 BPS20800304 800 2000 800
24 BPS1220800304 BPS20800304 1200 2000 800
25 BPS6022600304 BPS22600304 600 2200 600
26 BPS8022600304 BPS22600304 800 2200 600
27 BPS1222600304 BPS22600304 1200 2200 600


 Details:

Main advantage of  BPS outdoor stainless steel cabinet :

  1. Combined electric cabinet, suitable for combination.
  2. The top plate can be removable and the side plate is demountable, make working easier and simpler.
  3. High door plate (approx 25mm from the ground), to ensure smooth door opening.
  4. Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.
  5. Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
  6. Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
  7. Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.
