Light Weight H20 Timber Beam with Spruce Wood for Formwork GirderH20 Timber Beam Table formwork
Concrete Slab Formwork
Introduction
Plywood 18mm as the skin, timber beam H20 as the primary and secondary beam, steel prop or scaffolding as the support system.
Advantages:
Easy operation, save material and time.
High rigidity and repeat rate.
High standard components make low cost available.
The construction site is safe and fast.

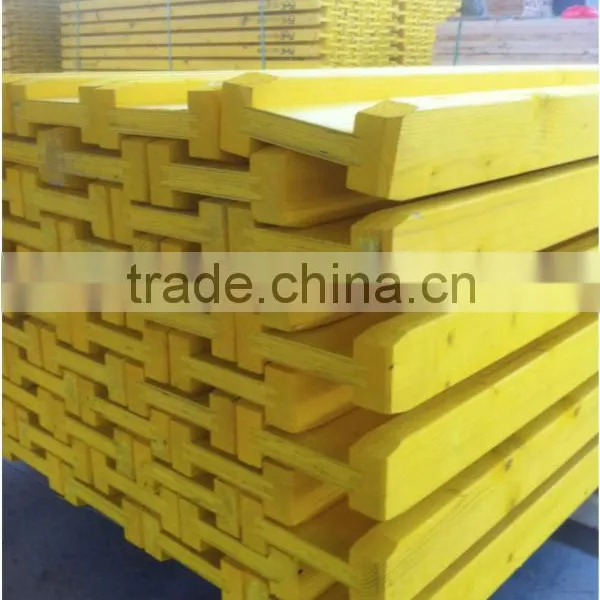

H20 Timber Beam Specifications:
Product Name |
|
Height |
200mm |
Flange |
Wide*Thickness=80mm*40mm |
Spruce, Pine, a mixture of wood species permitted | |
Web |
Thickness:27-30mm |
3-plywood or plywood | |
Surface Protection |
The complete beam is waterproofed using a water-repellent color glaze |
Weight |
4.6-5.2kg |
Standard Lengths |
2.45m,2.65m,2.9m,3.3m,3.6m,3.9m,4.5m,4.9m,5.9m, (Max.length:6.00m) |
Shear Force |
q=11KN |
Permissible Bending Moment |
m=5.0KN*M |
Package |
Customized Package,or In Bulk |
Used for |
Slab Formwork System,Vertical Formwork(Wall,Column,Hydraulic Climbing etc.), Adjustable Arced Formwork etc |
The aluminum beam is composed of aluminum frame, wood and connectors.It is easy to assemble, less weight than steel beam and the girders is good choice for slab formwork.
Competitive Advantage:
1. Easy assemble with simple structure.
2. Especially designed for formwork used in slab.
3. High stability with “” section.
4. Filled wood structure increased strength of girder and it make easier connector for plywood by means of nails.
5. As the second beam for slab formwork, it is easier to connect with main beam by means of the neat fastenings from it.
6. The aluminum material is made from brand of 6063T5, good materials guarantee good products.
Package:
Applications:
As a kind of girder, it is an important constituent part for formwork and it is widely used in concrete formwork construction.
