2.70*70mm 110*110mm,160*160mm Marking Area Optional
3.10W 20W 30W laser power optional
4.Desktop or Hand-held model Optional
Fastest marking
With high repeat of the pulse,power outputsteadily,energy surge of single pulse is lower
than 1%,can achieve high speed marking,and control the depth and shape of the facu
The processing speed is 2-3 times than the traditional marking machine.
Compact
The size of the macine is very small, portable, suitable for both mobile and fixed working.
10 years life,ultra-low running cost
Long life,ultra-low power consumption,the conversion efficiency is more than 30%,
the unit power of the machine is no more than 0.5kw.
Wide range of application
The machine can marking on all themetal materials and some of nonmetal materials.
Easily Operating
Afford the specific marking software based on Windows,
which is real-time adjust the laser power and pulse frequency.
You can input and output by computer according to edit in the both of the specific marking software
and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
Machine Parameter Specification
Model | VLM 10F/20F/30F |
Laser power | 10W/20W/30W |
Laser Wavelength | 1065±10nm |
Q-frequency | 20KHz~100KHz |
Divergence | 0.3mard |
Marking range | 110*110mm/205*205mm/290*290mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 7000mm/s |
Marking depth | 0 ~0.5mm |
Engraving line speed | ≤7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc. |
Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
working voltage | 220V±10%/50Hz/4A |
Unit power | <0.5kw |
Working environment | Clean and dust free or dust less |
Workingcondition:Humidity | 5%-75%,free of condensed water |
Laser module life | >100000 hours |
Net weight | 35kg |
Packing size | 0.77*0.25*0.6m |

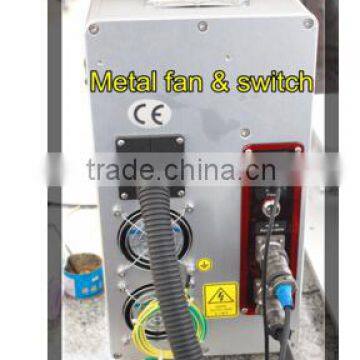

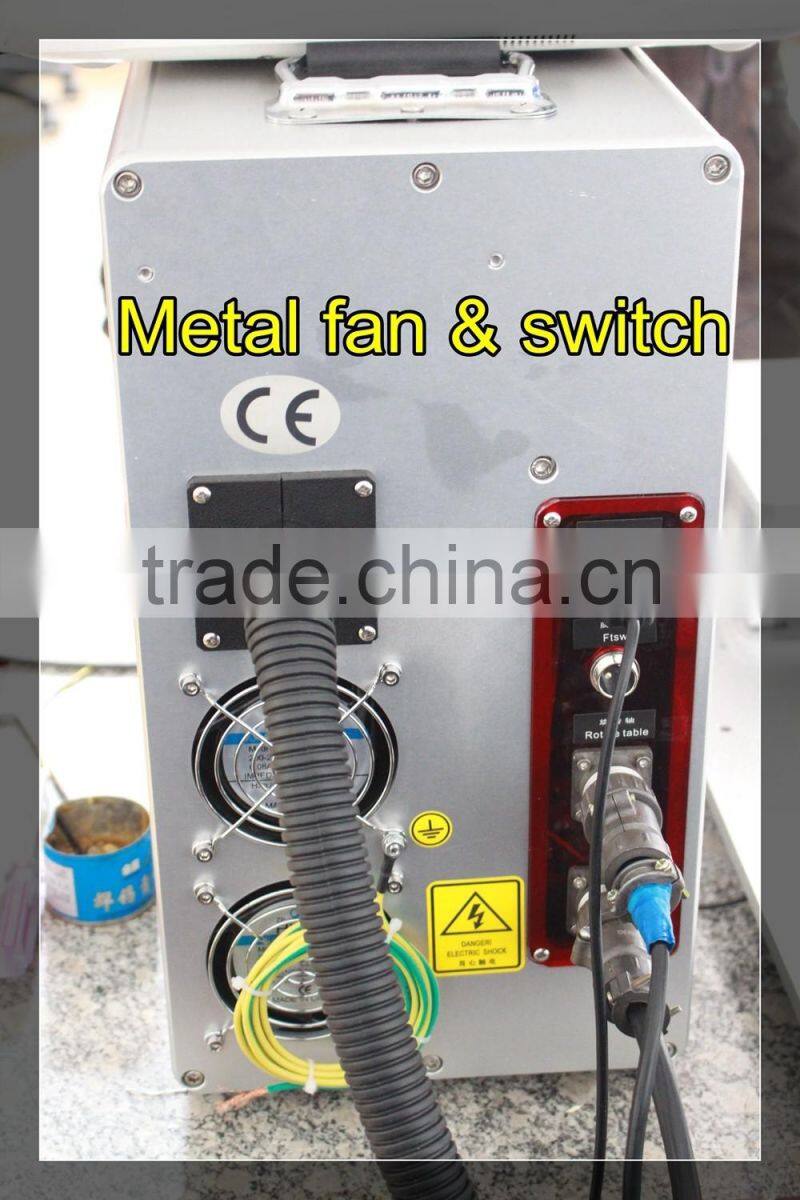

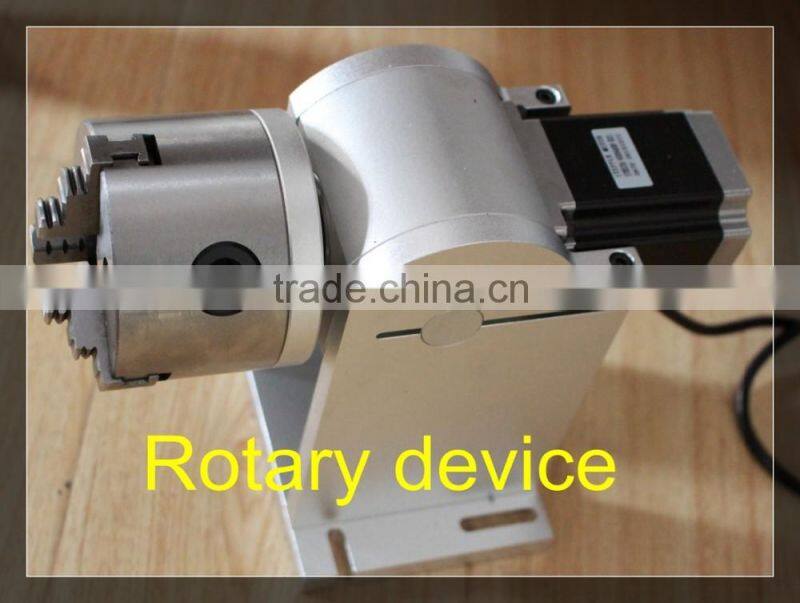

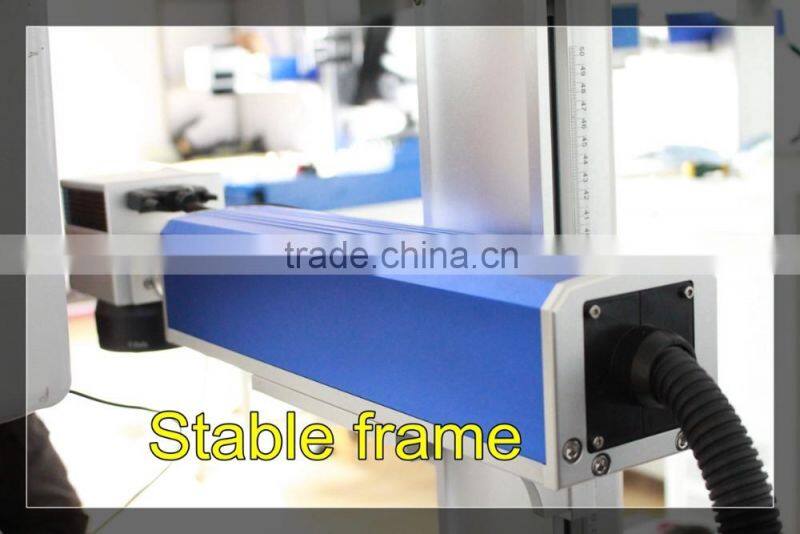

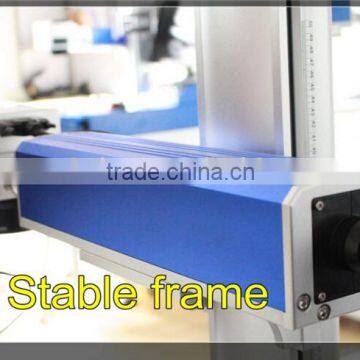

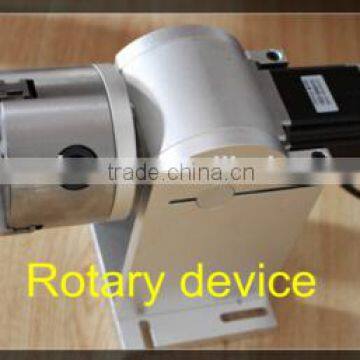

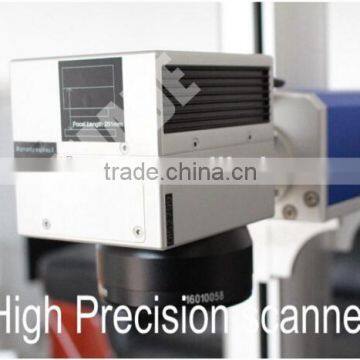

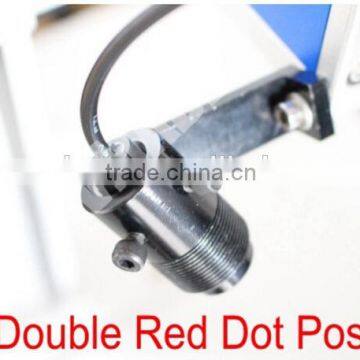

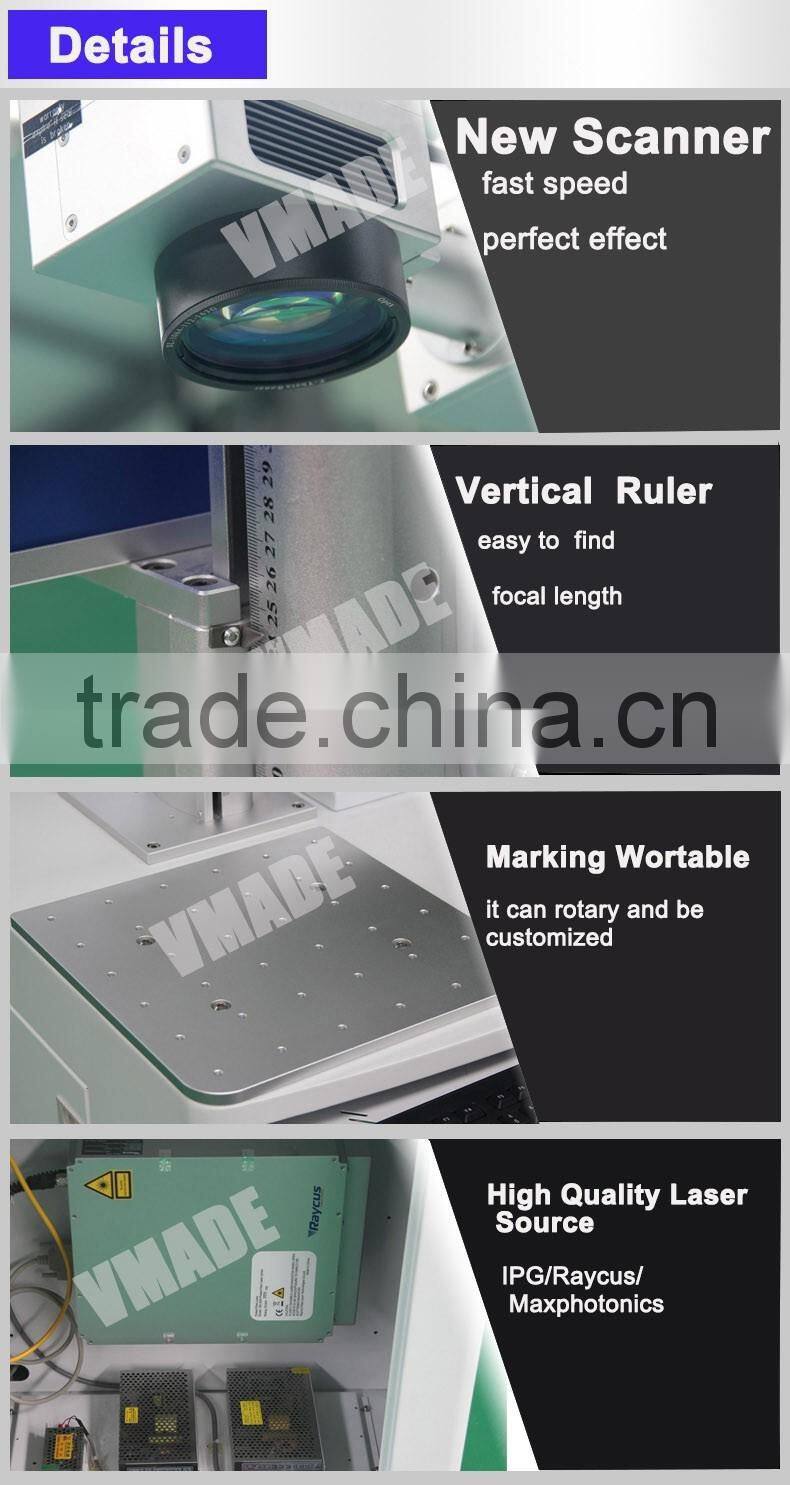

Composition
Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials

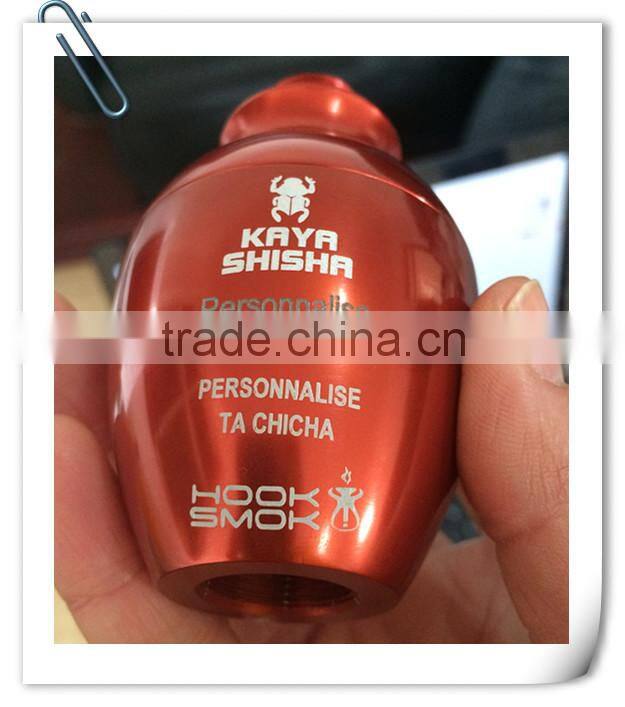

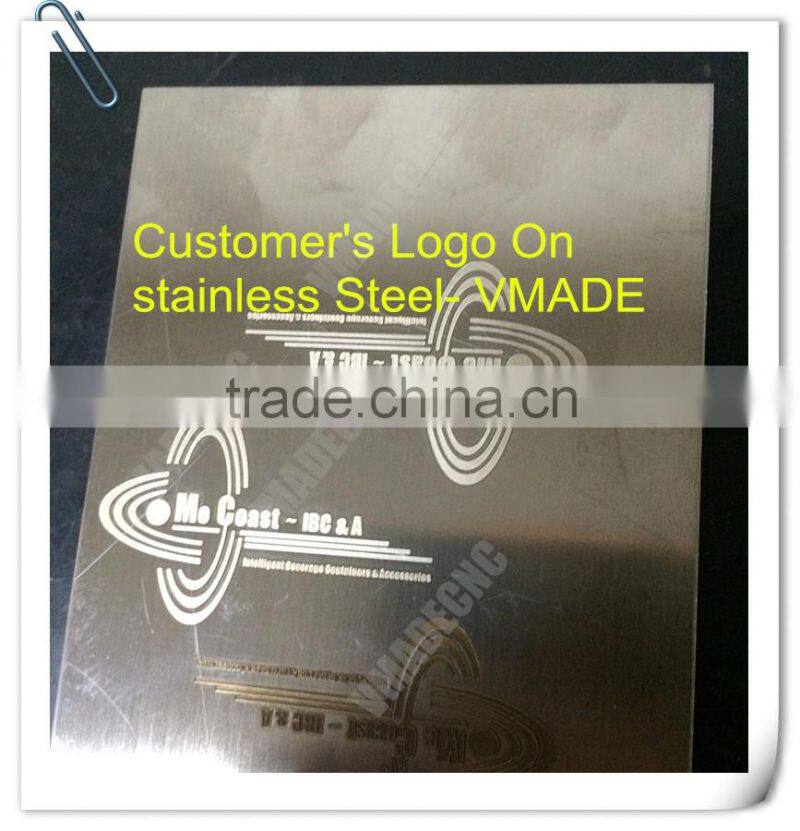

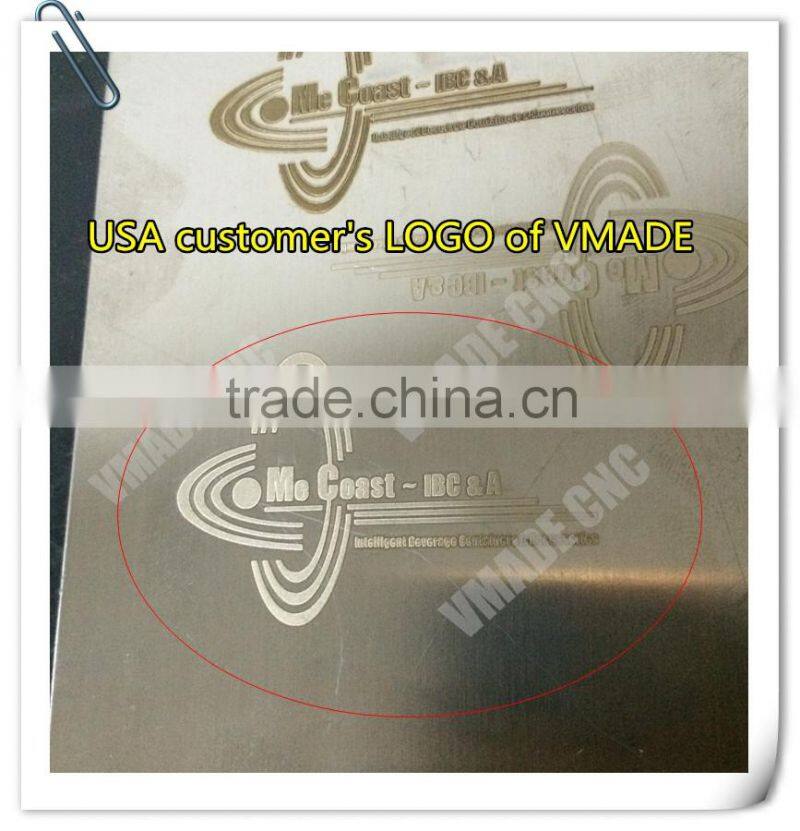

Samples
5-7 working days for shipment

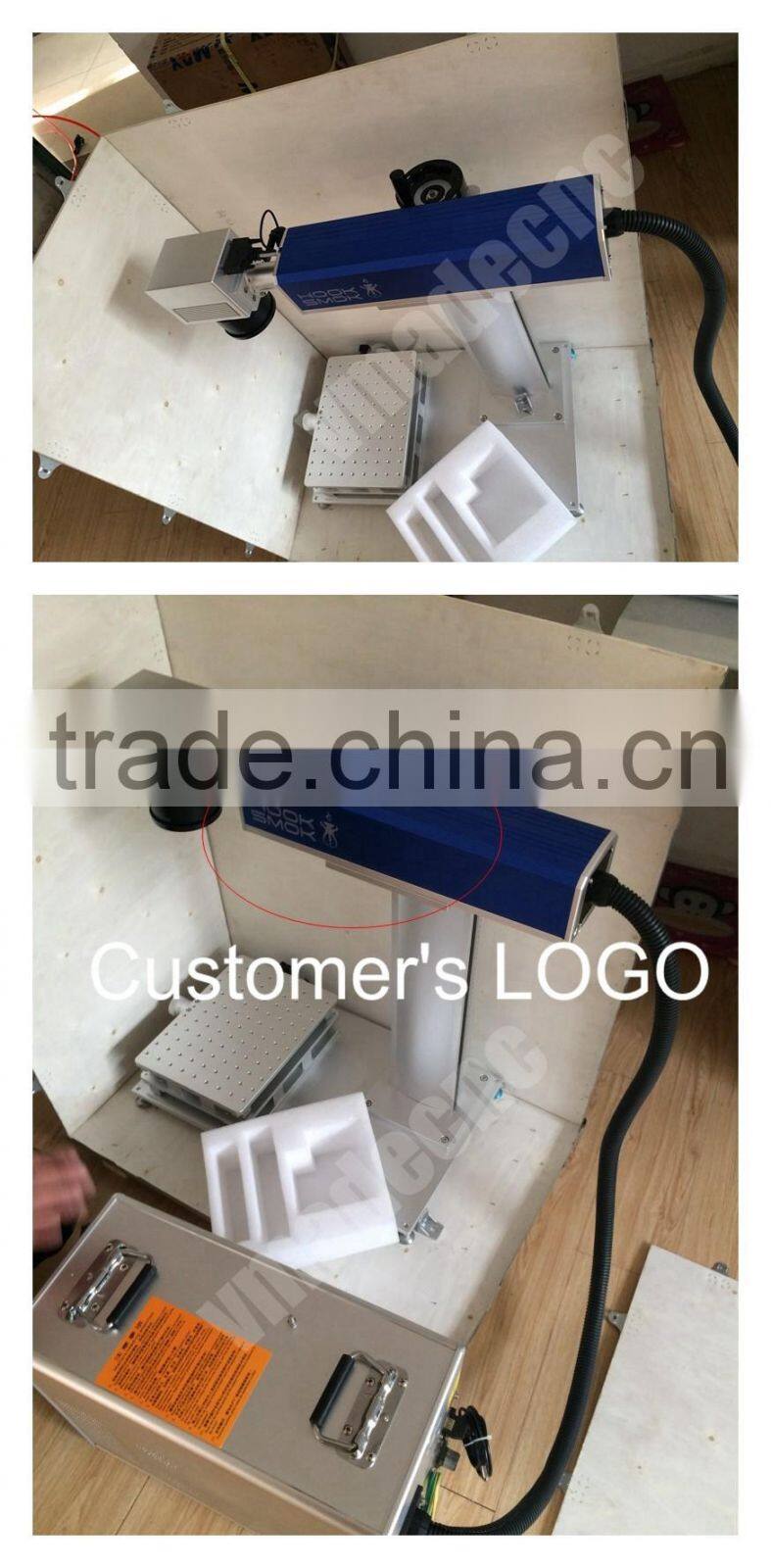

wooden packaging with ship and planes
- One year warranty for the whole machine.
- Teach video and detailed manual sent with the machine.
- 24 hours online support.
- Professional technical support
- Free design and guide for customer
- Free software update
- We can supply the new machine parts or fix the old one.
Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.
It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep
delicate andattentive attitude on every step and always keep to learn the most advanced technology and
create more humanized products to all our customers.
We are a big family~Welcome to join us
