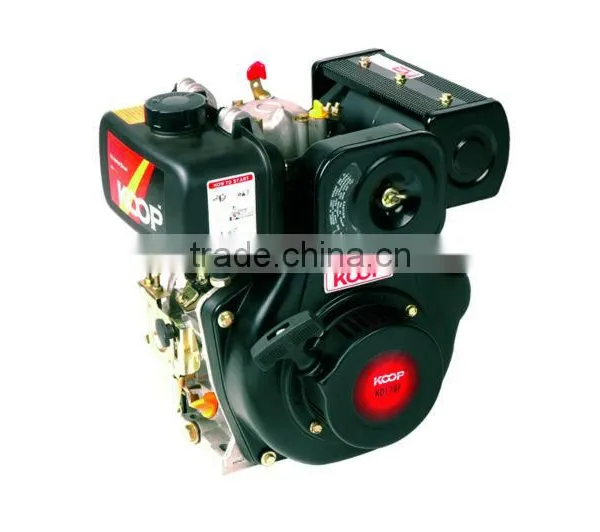

Air Cooled Single Cylinder Diesel Engine

Air Cooled Single Cylinder Diesel Engine thumbnail-1
Air Cooled Single Cylinder Diesel Engine photo-1
US$ 100 - 800 MOQ: 10 Sets
Key Specifications
Get Latest Price
Condition:
New
Usage:
Automobile
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Changzhou Koop Power Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Automobile
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Air-cooled
Start Electric Start
Place of Origin Jiangsu, China
Brand Name KOOP
Model Number KD170F/F(E)
Dimension(L*W*H) 335x380x415
Weight 31
Certification CE
Warranty 12 month

Specifications

Compact In Structure and Small In Size
Standup the Hard Work
Long Service Time & Easy Maintance
CE certificate

Model KD170F/FE KD178F/FE KD186F/FE KD186FA/FAE KD188FB/FBE
Type Vertical,1-Cylinder,4-Stroke, Air Cooled
Combustion System Direct Injection Direct Injection Direct Injection Direct Injection Direct Injection
BorexStroke[mm(in)] 70x55(2.76x2.11) 78x62(3.07x2.44) 86x70(3.39x2.76) 86x72(3.39x2.83) 88x75(3.46x2.95)
Displacement[L(cc)] 0.211(211) 0.296(296) 0.406(406) 0.418(418) 0.456(456)
Compression Ratio 20:01 20:01 19:1 19:1 19:1
Rated Power KW/rpm 2.5/3000,2.8/3600 3.7/3000,4.0/3600 5.7/3000,6.3/3600 6/3000,6.6/3600 6.6/3000,6.9/3600
Rated Power HP/rpm 3.4/3000,3.8/3600 5.0/3000,5.5/3600 7.7/3000,8.6/3600 8/3000,9/3600 9/3000,9.4/3600
Rated Speed(rpm) 3000/3600 3000/3600 3000/3600 3000/3600 3000/3600
Starting System F:Recoil Starter, E: Electric Starter
Fuel Tank [L(US.gal)] 2.5(0.66) 3.5(0.92) 5.5(1.45) 5.5(1.45) 5.5(1.45)
Lube[L(US.gal)] 0.75(0.2) 1.1(0.29) 1.65(0.44) 1.65(0.44) 1.65(0.44)
Fuel Consumpition[g(ml)/kwh] 3000rpm:280(330) 3000rpm:276(328) 3000rpm:275(327) 3000rpm:275(327) 3000rpm:275(327)
3600rpm:288(342) 3600rpm:285(339) 3600rpm:281(334) 3600rpm:281(334) 3600rpm:281(334)
Fuel 0#(Summer),-10#(Winter) diesel oil
Lube SAE10W30(Above CD grade)
Overall Dimension[mm(in)](LxWxH) 335x380x415 (13.19x14.96x16.34) 400x420x450 (15.75x16.54x17.72) 420x440x495 (16.53x17.32x19.49) 420x440x495 (16.53x17.32x19.49) 420x440x495           (16.53x17.32x19.49)
Net Weight[kg(lbs)] Recoil Starter Type:27(59.4) Recoil Starter Type:33(72.6) Recoil Starter Type:48(105.6) Recoil Starter Type:48(105.6) Recoil Starter Type:48(105.6)
Electric Starter Type:31(68.2) Electric Starter Type:33(83.6) Electric Starter Type:53(116.6) Electric Starter Type:53(116.6) Electric Starter Type:53(116.6)
Rotation Direction(View from Flywheel) Clockwise
