Specifications

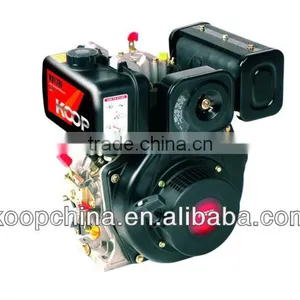

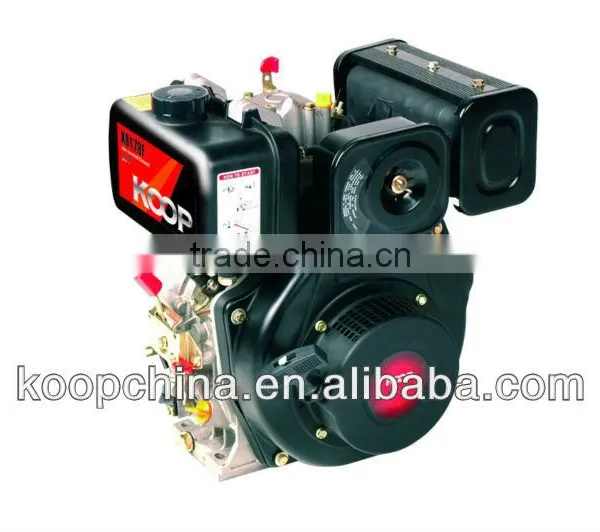

8.6HP diesel engine, vertical,single-cylinder,4-stroke,air-cooled,recoil or electric startingModel: KD186FA/FAE Air-cooled diesel engine EPA
Type: Vertical, . Single cylinder, 4-stroke, air-cooled diesel engine
Combustion System Direct injection
Bore×storke [mm(in)]: 86×72 (3.39×2.83)
Displacement [L(cc)]: 0.406 (406)
Compression ratio:19:1
Rated power [KW/rpm]:6.3/3600
Rated power [HP/rpm];8.6/3600
Rated speed (rpm):3600
Starting Mode: Manual starting/ electric starting or manual starting
Fuel tank capacity [L(US.gal)]:5.5 (1.45)
Lube capacity [L(US.gal)]:1.65 (0.44)
Fuel/ Lubricate: Use 0# in summer, use -10# in winter, diesel oil/ SAE 10W30
Net weight [kg(lbs)]:Recoil starter type: 48 (105.6)
Electric starter type: 53 (116.6)
Overall dimension [mm(in)](L×W×H): 420×440×495 (16.53×17.32×19.49)
Rotaion direction (view from flywheel):Clockwise
