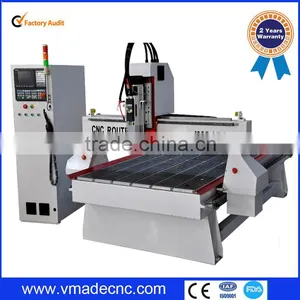

1325 wood cnc router machinery/disk atc cnc router for woodworking/wood door making cnc router cutting
| Name | Vmade funiture door cabinet atc cnc router 1325 atc cnc router |
Optional parts |
| X,Y,Z working area | 1300*2500*300,mm | 1530 2030 2040 |
| Table size | 1500*3040mm | |
| Spindle | Italy HSD9 kw auto tool change air cooling spindle 24000rpm (ES929) | HSD4.5kwATC Spindle |
| Tool magazine | Carrousel type | Linear type |
| Tool holder | 8 pcs ISO30-ER32 tool holders | HSK F63 optional |
| Tool Diameter | Φ 3.175, Φ 4, Φ 6, Φ 12.7mm | |
| Tool change time | 8seconds (Carrousel type tool magazine) | |
| Calibration | Auto | |
| Frequency converter | Japan Omron 11kw VFD | Taiwan Delta 11kw |
| Motor | 4sets JapanYaskawa AC servo motor SGMGV-09ADC61model 850w servo motor | |
| Drive | 4sets Japan Yaskawa SGDV-7R6A01A00200 model 1kw drive | |
| XYZ Travelling Potioning Accuracy | ±0.05/300mm | |
| Max Rapid Travel Rate | 50,000mm/min | |
| Max working speed | 30,000mm/min | |
| Table surface | Bakelite Vacuum Table +Aluminum T-slot Extrusion | |
| Vacuum System | Independed divided part vaccum area with Electronic switch | Manual switch |
| Frame | Steel Square Tubes up to 8mm, T type | |
| X, Y structure | Helical Rack & gear transmission ,Hiwin 30MMrail linear bearing (HGR30) | |
| Z structure | TBI 3210 ballscrew,Hiwin 30MM rail linear bearing (HGR30) | |
| Lubrication | Auto | Manual |
| Control system | Synetc 6MB control system | |
| Command languages | G code | |
| Software compatability | Origin Artcam+Dongles / Type 3 | |
| Switch and emergency stop | SCHNERDER switch, Omron emergency stop from Japan | |
| Working voltage | AC220v/3phase 380v3phase | |
| Net weight | 2100KG | |
| Gross weight | 2500KG | |
| Packing size | 3300*2200*2200mm, | |
| Extra parts | ||
| Vacuum pump | Germany Becker KVT3.140 (140cbm/h) | China dry pump 160cbm/h |
| Mist sprayer | Soft metal working | |
| Dust collector 3KW with 2 bag | 35-40m/second, 3150cbm/h |
C. Machine parts of cnc router:
HSD ES 929 9kw atc spindle on cnc router
Carrousel type tool magazine save tool change time
Linear type tool magazine atc cnc router with 8pcs tool holder

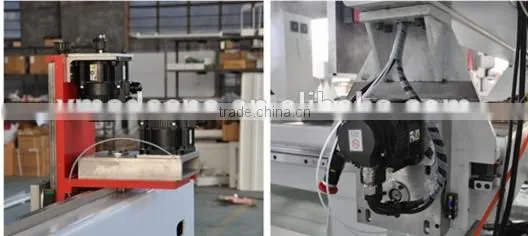

Japan Yaskawa 850w servo motor on 3axis
Helical rack forX,Y axis,TBI 3210 ball screw for Z axis,Hiwin 30mm rail for 3 axis on cnc router
Tanwan Synetc 6MB PCI control system on cnc router
Germany Becker KVT3.140 140cbm/h for ATC cnc router
Japan Omron , France Schneider and other famous brand electronic parts on CE standard control cabinet.
1.Outside Package:Standard export wooden cases2.Inner package:strech film
12 months for the whole machine.
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery oversea
According to your requirement,we will recommend the best suitable machine for you:
1.What is your ing area?
2.What material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.
According to your sample,we will recommend the best suitable machine for you.
