ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine

ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-1
ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-2
ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-3
ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-4

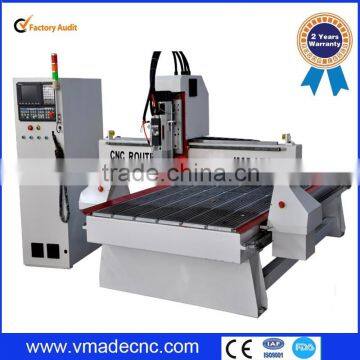

ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-5

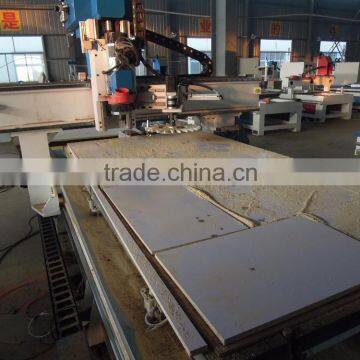

ATC CNC Router Machine/China 1325 Disk Type 8 Auto Tool Changer 3 Axis Cnc Router Engraver Machine photo-6
US$ 12,000 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name vmade
Model Number 1325ATC
Voltage 220V
Power(W) 9.0KW
Dimension(L*W*H) 1300*2500*200mm
Weight 2500KG
Certification CE FDA
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Wood routing; Solid wood, craft doors, kitchen cabinets, panel furniture, Decoration industry/Musical instrument industry/mould industry/Advertising industry

Product Name
Vmade funiture door cabinet atc cnc router 1325 ATC cnc router
X,Y,Z working area
1300*2500*300,mm
Table size
1500*3040mm
Spindle
Italy HSD9 kw auto tool change air cooling spindle 24000rpm (ES929)
Tool magazine
8 pcs ISO30-ER32 tool holders
Tool Diameter
Φ 3.175, Φ 4, Φ 6, Φ 12.7mm
Tool change time
8seconds (Carrousel type tool magazine)
Calibration
Auto
Frequency converter
Japan Omron 11kw VFD
Motor
4sets JapanYaskawa AC servo motor SGMGV-09ADC61model 850w servo motor
Drive
4sets Japan Yaskawa SGDV-7R6A01A00200 model 1kw drive
XYZ Travelling Potioning Accuracy
±0.05/300mm
Max Rapid Travel Rate
50,000mm/min
Max working speed
30,000mm/min
Table surface
Bakelite Vacuum Table +Aluminum T-slot Extrusion
Vacuum System
Independed divided part vaccum area with Electronic switch
Frame
Steel Square Tubes up to 8mm, T type
X, Y structure
Helical Rack & gear transmission ,Hiwin 30MMrail linear bearing (HGR30)
Z structure
TBI 3210 ballscrew,Hiwin 30MM rail linear bearing (HGR30)
Lubrication
Auto
Control system
Synetc 6MB control system
Command languages
G code
Software compatability
Origin Artcam+Dongles / Type 3
Switch and emergency stop
SCHNERDER switch, Omron emergency stop from Japan
Working voltage
AC220v/3phase 380v3phase
Gross weight
2500KG
Packing size
3300*2200*2200mm,
Products Show
Detailed picture

High quality

Round type

High quality

Linear type

High quality

Italy HSD9 kw auto tool change air cooling spindle 24000rpm (ES929)

Our Company

Japan Yaskawa

Helical rack forX,Y axis,TBI 3210 ball screw for Z axis,Hiwin 30mm rail for 3 axis on cnc router

Tanwan Synetc 6MB PCI control system


Packing & Delivery

Packing Details  : Standard woden box for export

Delivery Details : Within 10 working days




Our Service

24 months for the whole machine.

1, Technical support by phone, email or MSN/Skype around the clock

2, Friendly English version manual and operation video CD disk

3, Engineer available to service machinery oversea

Customer Photo

Favorable Comment


According to your work need, recommend the most suitable machine to you.
Two years quality insurance
English engineer are available anytime

.1.What is your ing area?

 2.What material will you work on?
3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
4.You also can send your product samples to us.

Favorable Comment

According to your work need, recommend the most suitable machine to you.

Two years quality insurance

English engineer are available anytime

 1.What is your ing area?
 2.What material will you work on?
 3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
 4.You also can send your product samples to us.

Favorable Comment

According to your work need, recommend the most suitable machine to you.
Two years quality insurance
English engineer are available anytime

 1.What is your ing area?
 2.What material will you work on?
 3.Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
 4.You also can send your product samples to us.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
