Digital Stepper Motor Driver Using New 32-bit DSP With High Performance, Low Power Consumption, High Torque, and Low Noise

Name: Digital Stepper Motor Driver Using New 32-bit DSP With High Performance, Low Power Consumption, High Torque, and Low Noise
Brand: DEWO
SKU: 106294477
Availability: InStock

Changzhou Dewo International Trade Co., Ltd.

Digital Stepper Motor Driver Using New 32-bit DSP With High Performance, Low Power Consumption, High Torque, and Low Noise thumbnail-1

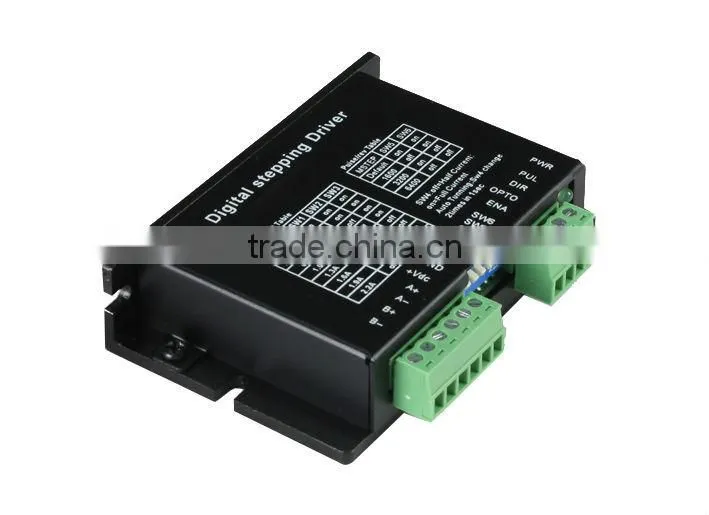

Digital Stepper Motor Driver Using New 32-bit DSP With High Performance, Low Power Consumption, High Torque, and Low Noise photo-1

US$ 15 - 30 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

DEWO

Model Number:

DM422D

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name DEWO

Model Number DM422D

Motor Type Other, stepper motor driver

Product Description

DM422D

Stepper Motor Driver Specification

Overview

The DM422D is a new generation high-performance digital stepper driver based on DSP with advanced control algorithm. The motors driven by DM422D can run with much smaller noise and much less vibration than other drivers in the market. The DM422D possess the feature of lower noise, lower vibration, and lower heating. The DM422D’s voltage is DC 20V-40V. It is suitable for all the 2 phases hybrid stepper motor whose current is less than 2.2A. The maximum step number of DM422D is 51200 steps/rev (microstep is 1/256 ). Its current range 0.5A-2.2A. DM422D has automatic semi-flow, over-voltage, under voltage and over-current protection function.

Current selection

Peak	RMS	SW1	SW2	SW3
Default		ON	ON	ON
0.5A	0.35A	OFF	ON	ON
0.70A	0.50A	ON	OFF	ON
1.0A	0.70A	OFF	OFF	ON
1.30A	0.90A	ON	ON	OFF
1.60A	1.20A	OFF	ON	OFF
1.90A	1.40A	ON	OFF	OFF
2.20A	1.60A	OFF	OFF	OFF

Microstep selection

Pulse/Rev	SW6	SW8
Default	ON	ON
1600	OFF	ON
3200	ON	OFF
6400	OFF	OFF

Default: The pulse can be customized according to customers’ requirements.

Common indicator

Phenomenon	Reason	Solution
The red indicator is on.	1.A short circuit of motor wires.	Inspect or change wires
	2.The external voltage is over or lower than the driver’s working voltage.	Adjust the voltage to a reasonable rang
	3.Unknown reason	Return the goods

Applications

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Driver functions descriptions

Driver function	Operating instructions
Output current setting	Users can set the driver output current by SW1-SW3 three switches. The setting of the specific output current, please refer to the instructions of the driver panel figure.
Microstep setting	Users can set the driver Microstep by the SW5-SW6 switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure.
Automatic half current function	Users can set the driver half flow function by SW4. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW4 to "OFF", in order to reduce motor and driver heating and improve reliability.
Signal interfaces	PUL is the setting pulse input; DIR is the stepper motor direction input; OPTO is the power supply for signal port + 5V; ENA is the motor free input.
Motor interfaces	A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed.
Power interfaces	It uses DC power supply. Recommended operating voltage is 20VDC-40VDC, and power consumption should be greater than 100W.
Indicator lights	There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off.

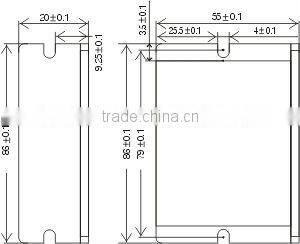

Installation instructions	Driver dimensions:86×55×20mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation.

Packaging & Shipping

ard packing for stepper motor, however, customized packing or OEM is also acceptable.

We deliver our goods by sea, air and courier service.

You may contact us to check the shipping status of your order.

Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.

Our Services

Company Profile :

Changzhou Dewo International Trade Co., Ltd., exporting stepper motors, motor drivers, BLDC motor and PM motor. We spcialize in this field for many years, with the strength of high quality and competitive price in China.

We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.

We can provide complete technical proposal for your project.

Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!

AFTER SALE-SERVICE:

Terrific after-sales service: 24hours around the clock & 12 months Warranty

Life-long maintenance service for the product

FAQ

Question 1: How to choose the suitable stepper motor?

Answer: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.

Question 2: Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.

Question 3: When can I get the drawing of stepper motor?
Answer: We will provide drawings of stepper motor after you place the order.

For more information of stepper motor, please feel free to contact me!
