DM860D stepper motor driver
The DM860D is a new generation high-performance digital stepper driver based on DSP and PID control algorithm with microstep control technology. The motors driven by DM860D can run with much smaller noise and much less vibration than other drivers in the market. The DM860D possess the feature of lower noise, lower vibration, and lower heating. The DM860D’s voltage is DC24V-80V. It is suitable for all the 2-phase hybrid stepper motor whose current is less than 6.0A. There are 16 kinds of microstep of DM860D. The maximum step number of DM860D is 51200 steps/rev (microstep is 1/256 ). Its current range 2.0A-6.0A, and its output current has 8 stalls.DM860D has automatic semi-flow, over-voltage, under voltage and over-current protection function.
Current selection
REF |
Peak |
SW1 |
SW2 |
SW3 |
2.00A |
2.40A |
ON |
ON |
ON |
2.57A |
3.08A |
OFF |
ON |
ON |
3.14A |
3.77A |
ON |
OFF |
ON |
3.71A |
4.45A |
OFF |
OFF |
ON |
4.28A |
5.14A |
ON |
ON |
OFF |
4.86A |
5.83A |
OFF |
ON |
OFF |
5.43A |
6.52A |
ON |
OFF |
OFF |
6.00A |
7.20A |
OFF |
OFF |
OFF |
Microstep selection
Pulse/REV |
SW5 |
SW6 |
SW7 |
SW8 |
Default |
ON |
ON |
ON |
ON |
800 |
OFF |
ON |
ON |
ON |
1600 |
ON |
OFF |
ON |
ON |
3200 |
OFF |
OFF |
ON |
ON |
6400 |
ON |
ON |
OFF |
ON |
12800 |
OFF |
ON |
OFF |
ON |
25600 |
ON |
OFF |
OFF |
ON |
51200 |
OFF |
OFF |
OFF |
ON |
1000 |
ON |
ON |
ON |
OFF |
2000 |
OFF |
ON |
ON |
OFF |
4000 |
ON |
OFF |
ON |
OFF |
5000 |
OFF |
OFF |
ON |
OFF |
8000 |
ON |
ON |
OFF |
OFF |
10000 |
OFF |
ON |
OFF |
OFF |
20000 |
ON |
OFF |
OFF |
OFF |
40000 |
OFF |
OFF |
OFF |
OFF |

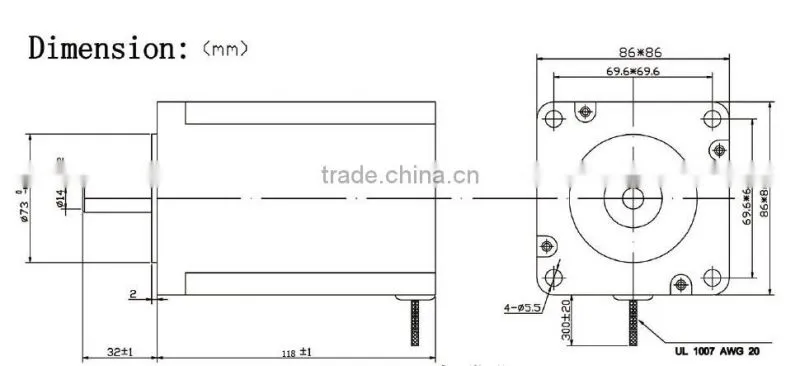

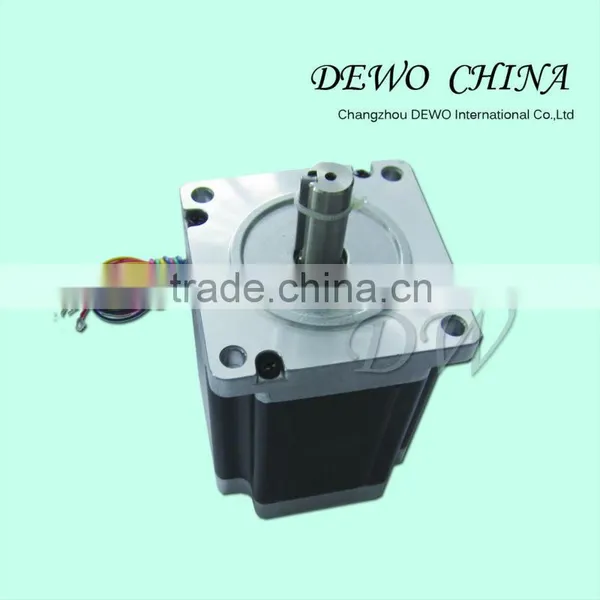

Stepper motor 1232 OZ-IN
1, Technical Specifications
Part No.: 34HS1456
Frame Size: NEMA34
Step Angle: 1.8 degree
Voltage: 3.08V
Current: 5.6A/phase
Resistance: 0.55 Ohm/phase
Inductance: 5.5 mH/phase
Holding torque: 8.4N.m 1232 OZ.IN
Rotor inertia: 2700g-cm
Number of wire leads: 4
Weight: 3.8 kg
Length: 118mm
Wire :
RED A+
GREEN A-
YELLOW B+
BLUE B-
