1.8 Degree Nema 23 Micro Motor Gear Low Speed

1.8 Degree Nema 23 Micro Motor Gear Low Speed thumbnail-1
1.8 Degree Nema 23 Micro Motor Gear Low Speed photo-1
US$ 44 - 65.5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DEWO
Model Number:
DW57HS76-3004
Contact Supplier Request Quote Chat Now
Changzhou Dewo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai for 1.8 degree nema 23 micro motor gear low speed
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name DEWO
Model Number DW57HS76-3004
Phase 2
Type Other, Hybrid, Hybrid stepepr motor
Certification CE, ROHS
Step Angle(degrees) 1.8
Holding Torque 18 kg.cm
Current / Phase 3.0 A

                      1.8 degree nema 23 micro motor gear low speed

Product Description



1.8 degree nema 23 micro motor gear low speed

Technique Parameter

Step Angle

1.8°

Step Angle Accuracy

±5% (full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80°CMax.(rated current,2 phase on)

Ambient Temperature

-10°C-+50°C

Insulation Resistance

100MΩMin.  500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)

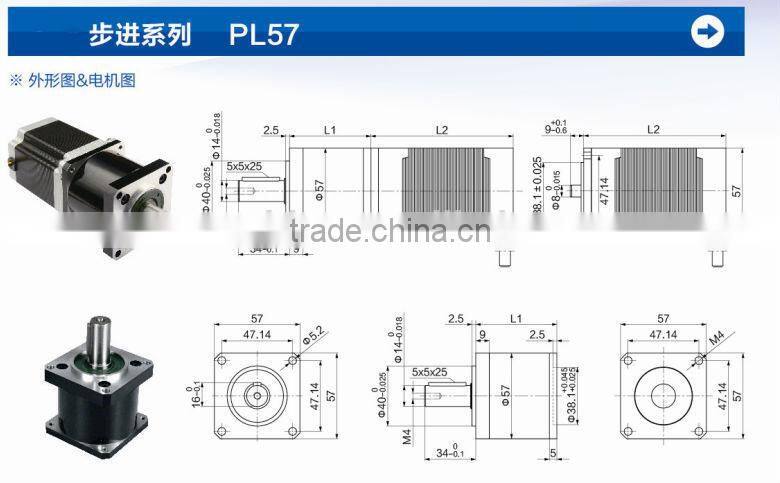

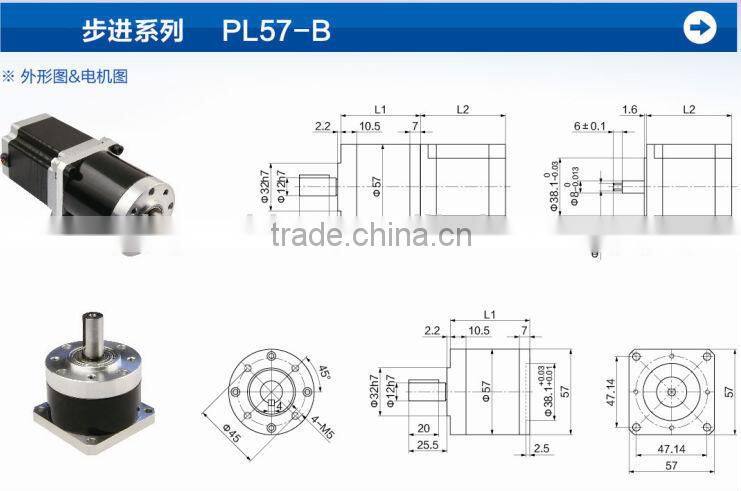

gearbox for nema 23 stepper motor
TYPE gear ratio first grade gear ratio second grade gear ratio third grade
PL57 4;5;7;9;10 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100
PL57-B 3.60;4.25 13;15;18 47;55;65;77



 1.8 degree nema 23 micro motor gear low speed



1.8 degree nema 23 micro motor gear low speed

DW57HS Motor Name List(High Torque)



Type Phase No. Step Angle Current(A) Resistance(ohm±10%) Inductance(mH±20%) Holding Torque(kg.cm) Wires No. Weight(kg) Body Length(mm)
DW57HS41-0406 3 1.8° 0.4 30 30 4 6 0.47 41
DW57HS41-1004 2 1.8° 1 5.4 9.5 5.5 4 0.47 41
DW57HS41-1504 2 1.8° 1.5 1.8 3.3 5 4 0.47 41
DW57HS41-1804 2 1.8° 1.8 1.35 1.2 4 4 0.47 41
DW57HS41-2004 2 1.8° 2 1 2.2 5.2 4 0.47 41
DW57HS41-2804 2 1.8° 2.8 0.8 1.4 5.5 4 0.47 41
DW57HS41-3004 2 1.8° 3 0.6 1.2 5.5 4 0.47 41
DW57HS41-3006 3 1.8° 3 0.5 0.6 3.9 6 0.47 41
DW57HS51-0806 3 1.8° 2 14 15 8 6 0.65 51
DW57HS51-1504 2 1.8° 2 1.6 4.2 8.2 4 0.65 51
DW57HS51-1606 3 1.8° 1.6 2.6 5 9 6 0.65 51
DW57HS51-2004 2 1.8° 2 1.2 3 9 4 0.65 51
DW57HS51-2006 3 1.8° 2 1.1 1.6 7 6 0.65 51
DW57HS51-3004 2 1.8° 3 0.8 2.4 7 4 0.65 51
DW57HS54-1006 3 1.8° 1 6.8 13.5 8.5 6 0.68 54
DW57HS54-1704 2 1.8° 1.7 2 6.2 10 4 0.68 54
DW57HS54-2004 2 1.8° 2 1.2 4 9 4 0.68 54
DW57HS54-2006 3 1.8° 2 1.7 3.5 9 6 0.68 54
DW57HS54-2504 2 1.8° 2.5 0.9 2.8 10.5 4 0.68 54
DW57HS54-3004 2 1.8° 3 0.9 2.5 12 4 0.68 54
DW57HS54-4008 4 1.8° 4 0.8 1.25 9 8 0.68 54
DW57HS54-4204 2 1.8° 4.2 0.41 1.3 12.2 4 0.68 54
DW57HS56-1204 2 1.8° 1.2 1.5 6.5 9 4 0.7 56
DW57HS56-1504 2 1.8° 1.5 3.8 12 12 4 0.7 56
DW57HS56-2004 2 1.8° 2 0.9 2.8 9 4 0.7 56
DW57HS56-2006 3 1.8° 2 1.8 2.8 9 6 0.7 56
DW57HS56-2504 2 1.8° 2.5 1 4 11 4 0.7 56
DW57HS56-2804 2 1.8° 2.8 0.9 3 12.6 4 0.7 56
DW57HS56-3004 2 1.8° 3 0.9 2.8 11 4 0.7 56
DW57HS56-3508 4 1.8° 3.5 1.1 2.6 12.5 8 0.7 56
DW57HS56-4204 2 1.8° 4.2 0.4 1.2 12 4 0.7 56
DW57HS64-2004 2 1.8° 2 1 4 12 4 0.75 64
DW57HS64-3004 2 1.8° 3 1.3 2.2 12 4 0.75 64
DW57HS64-4204 2 1.8° 4.2 0.45 1.3 15 4 0.75 64
DW57HS76-1004 2 1.8° 1 6 20 20 4 1 76
DW57HS76-1006 3 1.8° 1 8.6 14 13.5 6 1 76
DW57HS76-2004 2 1.8° 2 4.3 16.2 24 4 1 76
DW57HS76-2306 3 1.8° 2.3 2.5 5.3 13 6 1 76
DW57HS76-2504 2 1.8° 2.5 1.8 6.5 18 4 1 76
DW57HS76-2804 2 1.8° 2.7 1.1 3.6 18 4 1 76
DW57HS76-3004 2 1.8° 3 1.1 2.3 15 4 1.1 76
DW57HS76-3004 2 1.8° 3 1 1.6 18 4 1 76
DW57HS76-3006 3 1.8° 3 1 1.6 13.5 6 1 76
DW57HS76-4004 2 1.8° 4 0.6 2.2 18 4 1 76
DW57HS76-4208 4 1.8° 4.2 1.2 2.2 15 8 1 76
DW57HS82-1004 2 1.8° 1 10 44 22 4 1.3 82
DW57HS82-2506 3 1.8° 2.5 2.2 3.8 18 6 1.1 82
DW57HS82-3004 2 1.8° 3 1.4 5 20 4 1.1 82
DW57HS82-4004 2 1.8° 4 0.55 4 19.5 4 1.1 82
DW57HS82-4006 3 1.8° 4 1.2 2.5 22 6 1.1 82
DW57HS82-4204 2 1.8° 4.2 0.9 4 25 4 1.1 82
DW57HS82-4208 4 1.8° 4.2 1.2 2.5 21 8 1.1 82
DW57HS93-3004 2 1.8° 3 1 4.2 25 4 1.1 93
DW57HS93-3006 3 1.8° 3 1.5 2.6 25 6 1.1 93
DW57HS93-4004 2 1.8° 4 0.8 2.5 25 4 1.1 93
DW57HS100-3004 2 1.8° 3 1.4 5.5 25 4 1.5 100
DW57HS100-3504 2 1.8° 3.5 0.8 3 22 4 1.5 100
DW57HS100-4004 2 1.8° 4 0.6 1.8 20 4 1.5 100
DW57HS100-4208 4 1.8° 4.2 1.1 1.8 20 8 1.5 100
DW57HS112-3004 2 1.8° 3 1.3 6.5 30 4 2 112
DW57HS112-4004 2 1.8° 4 0.9 4 30 4 2 112
DW57HS112-5008 4 1.8° 5 1.4 3 28 8 2 112

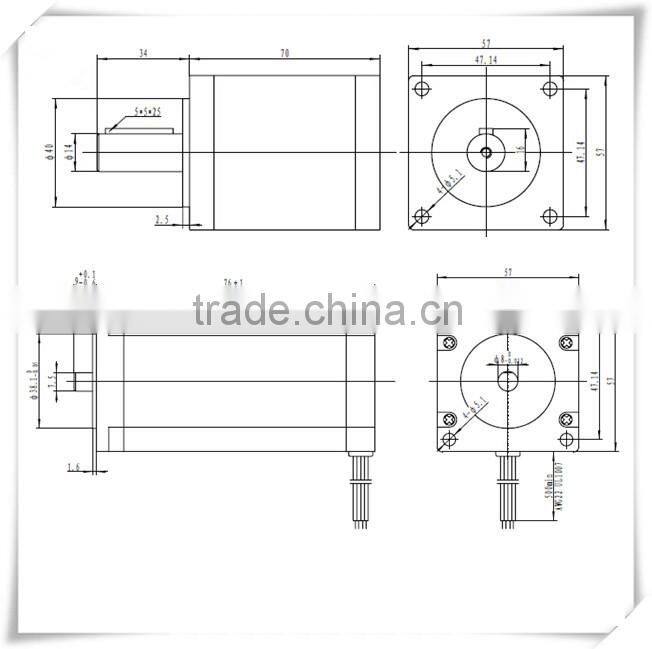

Dimension:

 1.8 degree nema 23 micro motor gear low speed

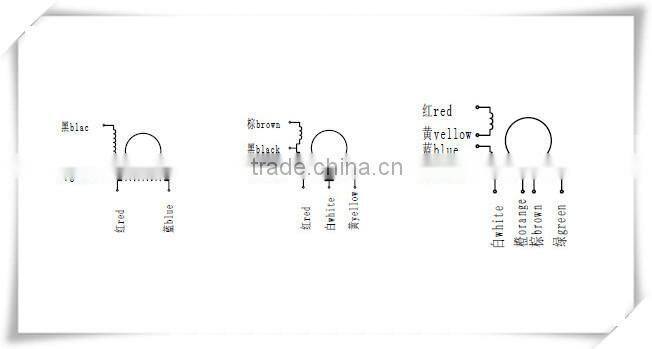

 Wiring:

 1.8 degree nema 23 micro motor gear low speed



Tips: the shaft and motor details can be customerized.

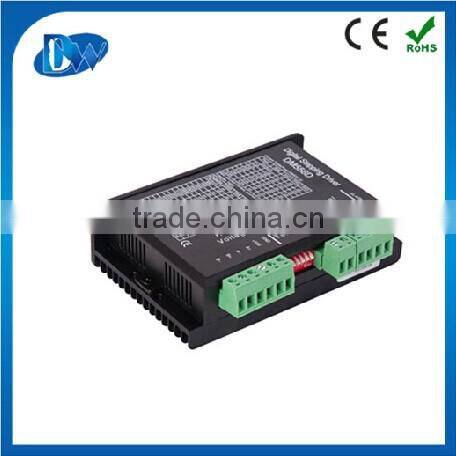

Suitful driver & driver board and controller



1.8 degree nema 23 micro motor gear low speed









 1.8 degree nema 23 micro motor gear low speed







Packaging & Shipping

  We provide standard packing for stepper motor, however, customized packing or OEM is also acceptable.



We deliver our goods by sea, air and courier service.





You may contact us to check the shipping status of your order.



Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.





Our Services

Terrific after-sales service: 24hours around the clock & 12 months Warranty

Life-long maintenance service for the product

If you need more information, Pls contact to me.

Our contact information:

Changzhou Dewo International Co.,Ltd

Contact Person : Christal

Tel:86-519-88996960   Fax: 0519-88996960

Skype: christal.bai

More Quantity . More Discount !!!

Company Information



Changzhou Dewo International Trade Co., Ltd., exporting stepper motors, motor drivers, BLDC motor and PM motor. We spcialize in this field for many years, with the strength of high quality and competitive price in China.

We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!



Our team and  Exhibition:

 1.8 degree nema 23 micro motor gear low speed

our certification:

our friend:



FAQ



Question 1: How to choose the suitable stepper motor?

Answer: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.

Question 2: Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.

Question 3: When can I get the drawing of stepper motor?
Answer: We will provide drawings of stepper motor after you place the order.
