reprap nema17 stepper motor, 2-phase screw motor for reprap industry 61 Oz-in/ 48mm/1.68A CNC stepper motor
Technique Parameter
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step,no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80°CMax.(rated current,2 phase on) |
Ambient Temperature |
-10°C~+50°C |
Insulation Resistance |
100MΩMin. 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.06Max.(450 g-load) |
Shaft Axial Play |
0.08Max.(450 g-load) |
Production testing process
DW42HS Motor Name List(High Torque)
Model No |
Current/Phase |
Resistance/Phase |
Inductance/Phase |
Holding Torque |
#Of Leads |
Rotor Inertia |
Detent Torque |
Weight |
Length |
||
A |
Ω |
mH |
Oz-in |
Kg-cm |
g-cm2 |
(kg.cm) |
Kg |
mm |
mm |
||
DW42HS25-0804 |
0.80 |
3.7 |
5 |
21 |
1.5 |
4 |
20 |
150 |
0.24 |
25 |
Φ5*24 |
DW42HS25-0404 |
0.40 |
24 |
36 |
24 |
1.7 |
4 |
20 |
150 |
0.24 |
25 |
Φ5*24 |
DW42HS34-0404 |
0.40 |
30 |
37 |
36 |
2.6 |
4 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-0226 |
0.22 |
55 |
30 |
19.44 |
1.4 |
6 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-0804 |
0.8 |
6.5 |
4.6 |
31.94 |
2.3 |
4 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-1704 |
1.7 |
1.2 |
1.5 |
30.55 |
2.2 |
4 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-2004 |
2 |
0.7 |
1.1 |
34.72 |
2.5 |
4 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-0586 |
0.58 |
13.6 |
7.8 |
28 |
2 |
6 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-1334 |
1.33 |
2.1 |
2.5 |
31 |
2.2 |
4 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS34-0406 |
0.40 |
30 |
21 |
35 |
2.5 |
6 |
35 |
200 |
0.24 |
34 |
Φ5*24 |
DW42HS40-0806 |
0.80 |
7.5 |
6.7 |
36 |
2.6 |
6 |
54 |
220 |
0.27 |
40 |
Φ5*24 |
DW42HS40-1206 |
1.20 |
3 |
3.2 |
36 |
2.6 |
6 |
54 |
220 |
0.27 |
40 |
Φ5*24 |
DW42HS40-1704 |
1.70 |
2 |
3 |
47 |
3.4 |
4 |
54 |
220 |
0.27 |
40 |
Φ5*24 |
DW42HS48-0406 |
0.40 |
30 |
25 |
44 |
3.2 |
6 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-0806 |
0.80 |
7.5 |
6.3 |
44 |
3.17 |
6 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-1204 |
1.20 |
3 |
5 |
62 |
4.5 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-1684 |
1.68 |
1.65 |
2.8 |
61 |
4.4 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-0186 |
0.18 |
120 |
90 |
42 |
3 |
6 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-0304 |
0.3 |
54 |
98 |
70 |
5 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-0606 |
0.6 |
19.5 |
13.5 |
53 |
3.8 |
6 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-1006 |
1 |
4.3 |
4.2 |
44 |
3.2 |
6 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS481504 |
1.5 |
2.6 |
5.5 |
83 |
6 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-2004 |
2 |
1.5 |
3 |
60 |
4.3 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-3004A |
3 |
0.5 |
0.8 |
58 |
4.2 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS48-250 |
2.50 |
1.25 |
1.8 |
67 |
4.8 |
4 |
76 |
280 |
0.34 |
48 |
Φ5*24 |
DW42HS60-1206 |
1.20 |
6 |
7 |
90 |
6.5 |
6 |
102 |
350 |
0.5 |
60 |
Φ5*24 |

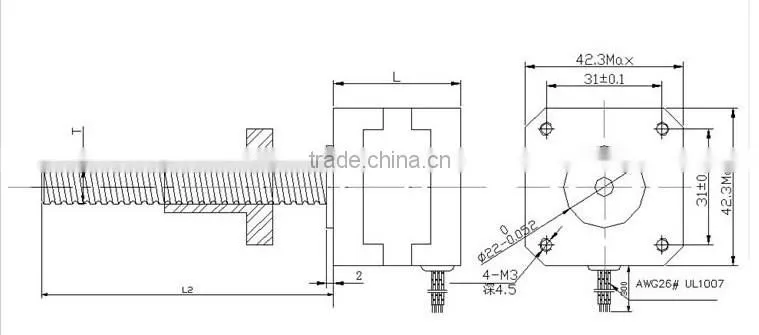

Dimension of stepper motor :
Details of screw brass nuts:
Wiring:
Tips: the shaft and motor details can be customerized.
We provide standard packing for products.
Plastic foam will be put in carton boxes.
We deliver our goods by sea, air and courier service.
You may contact us to check the shipping status of your order.
Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.
Except stepper motor , we also supply breakout board, power supply and so on ,pls check following items.
Terrific after-sales service: 24hours around the clock & 12 months Warranty
Life-long maintenance service for the product.
If you need more information, Pls contact to me.
Our contact information:
Changzhou Dewo International Co.,Ltd
Contact Person : wendy wang
Mobile:86-18018256960
Skype: 816
More Quantity . more discount !!!
Changzhou Dewo International Trade Co., Ltd., exporting stepper motors, motor drivers, BLDC motor and PM motor. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
our certification:
Our team and Exhibition:
our friend:
Question 1: How to choose the suitable stepper motor?
Answer: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Question 2: Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.
Question 3: When can I get the drawing of stepper motor?
Answer: We will provide drawings of stepper motor after you place the order.
