Help CenterCNC Kit Tb6600 Stepper Motor Driver Tb6600 3 Axis Driver + 3 x Nema 17 Stepper Motor 48oz-in + Parallel Cable Quality Choice
Related Products
-
Axis 3.5A Stepping Motor Driver 4 Axis Speed Stepper Driver ControlUS$ 35.99 - 40.99MOQ: 1 Piece -
Axis 3.5A Stepping Motor Driver 4 Axis Speed Breakout Board Stepper Driver ControlUS$ 35.99 - 40.99MOQ: 1 Piece
-
4 Axis Stepper Motor Controller Mach 3 BreakoutboardUS$ 49.99 - 54.99MOQ: 1 Piece
-
4 Axis Board Motor TB6560 Stepper Motor Driver BoardUS$ 49.99 - 54.99MOQ: 1 Piece
-
4 Axis CNC Controller TB6560 3 Axis .4 Axis and 5 Axis AvaliableUS$ 49.99 - 54.99MOQ: 1 Piece

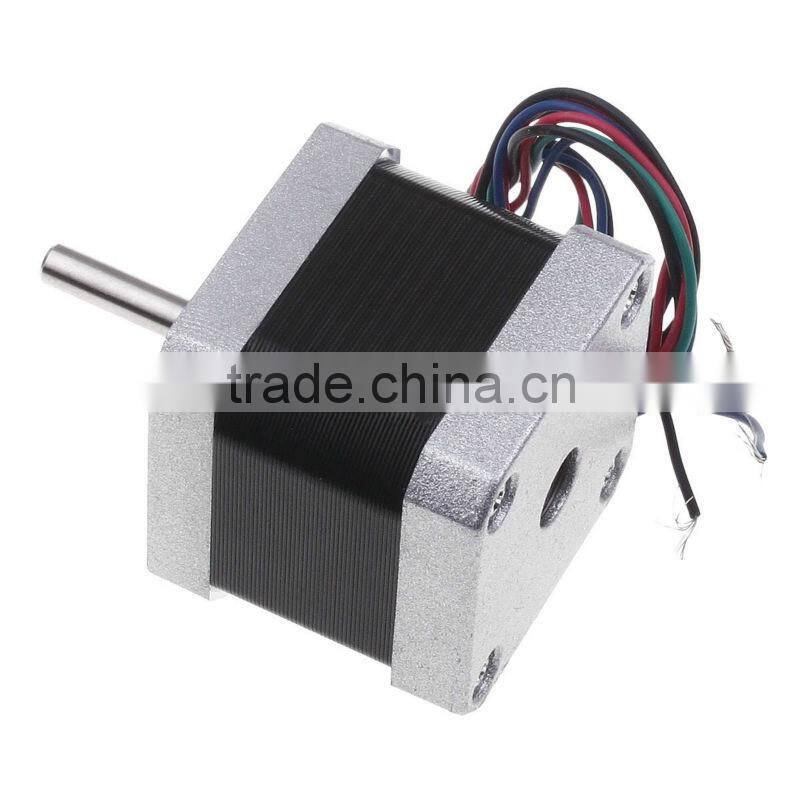

NEMA 17 STEPPER MOTOR :
| Model Type | Step angel (°) | Motor Length L(mm) | Rate Voltage (V) | Rate Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (oz.in) | Lead Wire (NO.) | Rotor Inertia (g.cm2) | Detent Torque (kg.cm) | Motor Weight (kg) |
| DW42HS40-1704A | 1.8 | 40 | 3.4 | 1.7 | 2 | 3 | 48 | 4 | 54 | 0.22 | 0.24 |

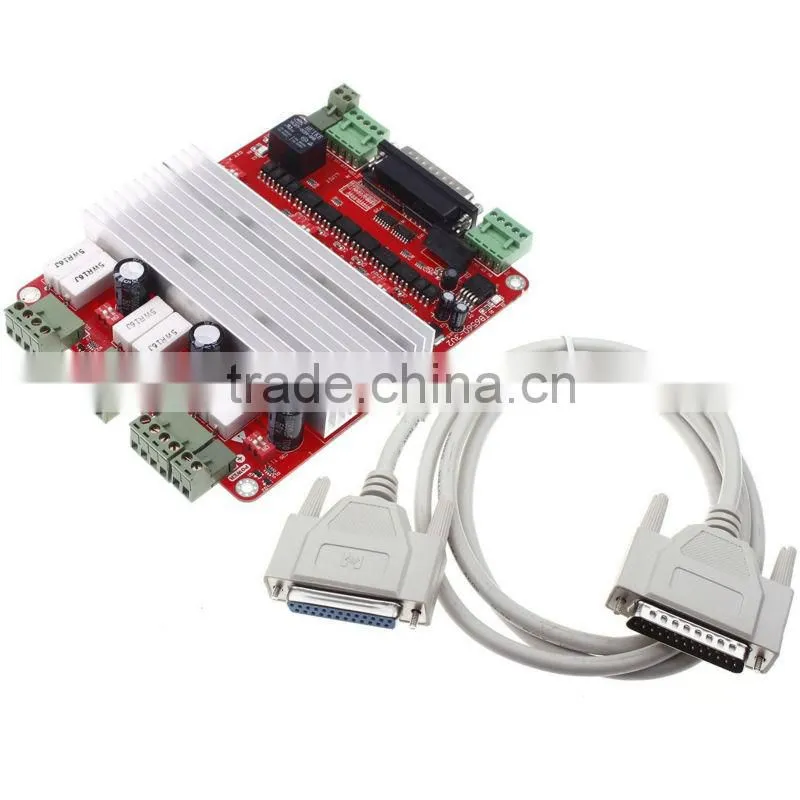

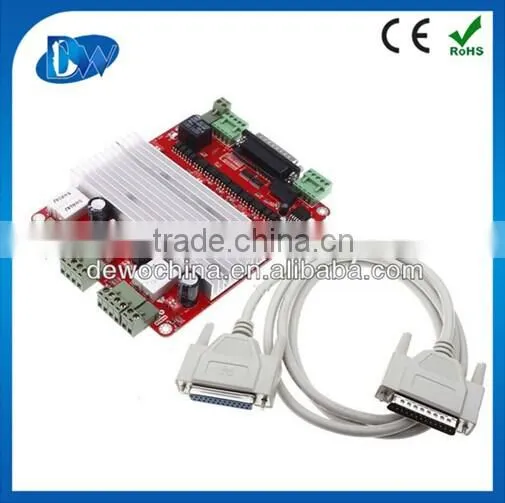

3 Axis TB6560 Driver:
1. it can drive three axis,The 4th axis expansion, to facilitate your needs 4-axis machining when working
2. Spindle relay output, easy to use software such as mach3 to control spindle start and stop.
3. Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum.
4. Interface with a fan, you can add fan under your choice.
5. With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive;
6. Standard parallel port interface, support for MACH2, KCAM4 series software;
7. With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment;
8. with limit switch,can connection 4 aixs limit switch
9. Support four microstepping 1, 1/2, 1/8 ,1/16;

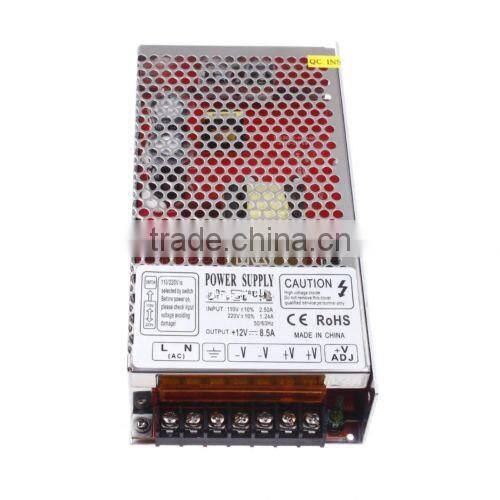

Switch Power Supply:
12V 8.5A
PACK LINE:
