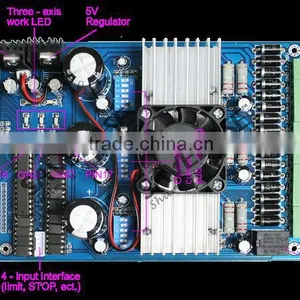

TB6560 CNC Stepper Motor Driver Board Controller 3 Axis
US$ 28 - 35
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mach 3 Breakout Control Board ,hot-sale New Product ,smaller SizeUS$ 9 - 12MOQ: 1 Piece -
Axis 3.5A Stepping Motor Driver 4 Axis Speed Breakout Boards Stepper Driver ControlUS$ 35.99 - 40.99MOQ: 1 Piece
-
4 Axis 3.5A TB6560 Stepping Motor Driver 4 Axis Stepper Motor ControllerUS$ 36 - 47MOQ: 1 Piece
-
Four Axis 3.5A Stepper Motor Driver 4 Axis Stepper Motor ControllerUS$ 49.99 - 54.99MOQ: 1 Piece
-
Four Axis 3.5A Stepper Motor Driver 4 Axis TB6560 Stepper Motor ControllerUS$ 49.99 - 54.99MOQ: 1 Piece
Condition
New
CNC or Not
CNC
Place of Origin
China
Brand Name
DEWO
Model Number
3 axis
Voltage
12-30V DC
Dimension(L*W*H)
18 * 14 * 4 cm
Weight
0.65KG
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
- 1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step
- Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
*Attention: This driver is 1.5A-3A version, which is specially designed for stepper motors with rated current from 1.5A to 3A. It's NOT compatible with stepper motors with rated current below 1.5A or above 3A.
If the rated current your stepper motors is below 1.5A, you can choose the 0.5A-2.5A version. - Please let us know which version (1.5A-3A version is default) you need immediately after placing an order.
- Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment.
- On board current switching - Power output can be set according to specific user requirement.
- Full closed-type optical isolation to protect the user's computer and equipment.
- Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
- 4 channel inputs interface- Can be used for XYZ limit and emergency stop.
- Professional design - Two stage signal processing with super anti-jamming.
- Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect.
- Four-input Control; Allow setting the Limit, Emergence-Stop, Midpoint-Alignment, Cutter-Alignment.
- Universal architecture - Supports most parallel software MACH3,KCAM4 etc.
*For compatibility with other softwares, please feel free to contact us.
Dip settings:
| Current Setting | 1 | 2 | Decay Mode Settings | 3 | 4 | MicroStep Settings | 5 | 6 |
| 100% | ON | ON | FAST | ON | ON | 1 | ON | ON |
| 75% | ON | OFF | 25% | ON | OFF | 1/2 | ON | OFF |
| 50% | OFF | ON | 50% | OFF | ON | 1/8 | OFF | ON |
| 25% | OFF | OFF | SLOW | OFF | OFF | 1/16 | OFF | OFF |
Further Details:
- Power supply DC 12-30V (not included, please feel free to contact us if you need !)
*The stepper motor directly gets the power from the stepper driver, it doesn't require a separate power source..
*Voltage Selection:
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
(High voltage will burn up the chips or stepper motors!!!)
*Ampertage Selection:
Output current of the power supply can be calculated by the following expressions:
Output current = Rated current of your stepper motors * quantity + 2A
(For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
If you are not sure about the selection of power supply, please feel free to contact us for help) - The power output of 12V shall be applied to the radiator fan of 12V
- Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
- Suitable for unipolar or bipolar stepper motors.
- Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
