2014 Best Hot-sale 1.8 Degree ,86*86mm Closed Loop Hybrid Stepping Motor Manufacturing

2014 Best Hot-sale 1.8 Degree ,86*86mm Closed Loop Hybrid Stepping Motor Manufacturing thumbnail-1
2014 Best Hot-sale 1.8 Degree ,86*86mm Closed Loop Hybrid Stepping Motor Manufacturing photo-1
US$ 57.39 - 65.99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DEWO
Model Number:
DW86HS118-4504A-40MP
Contact Supplier Request Quote Chat Now
Changzhou Dewo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name DEWO
Model Number DW86HS118-4504A-40MP
Phase 2
Type Hybrid
Certification CE, ISO, ROHS, UL
Step Angle(degrees) 1.8°
Holding Torque 895 in-Oz/ 62kg.cm
Current / Phase 4.5A



2014 best hot-sale 1.8 degree ,86*86mm closed loop hybrid stepping motor manufacturing

2014 best hot-sale 1.8 degree ,86*86mm closed loop hybrid stepping motor manufacturing2014 best hot-sale 1.8 degree ,86*86mm closed loop hybrid stepping motor manufacturing

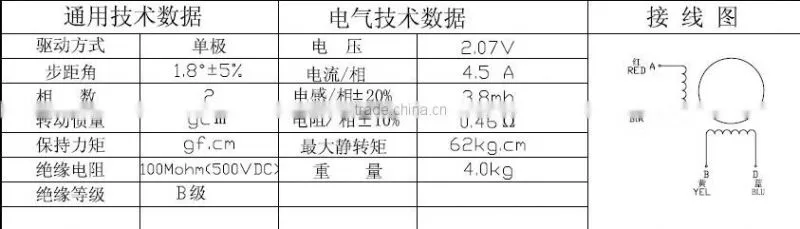

Technique parameter

Item

Specification

Step Angle

1.8°

Step Angle Accuracy

±5% (full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80°CMax.(rated current,2 phase on)

Ambient Temperature

-10°C~+50°C

Insulation Resistance

100MΩMin.  500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)

DW86HS Motor Name List(Square)

Model No

Current
Phase

Resistance
Phase

Inductance
Phase

Holding Torque

#Of Leads

Rotor Inertia

Detent Torque

Weight

Length



A

Ω

mH

Oz-in

Kg-cm



g-cm2

(kg.cm)

Kg

mm



DW86HS65-2808

2.80

1.4

3.9

250

18

8

1000

0.8

1.7

65

Φ14*37

DW86HS65-5904

5.90

0.28

1.7

250

18

4

1000

0.8

1.7

65

Φ14*37

DW86HS75-2008

2.00

2.2

10

291

21

8

1400



1.7

75

Φ14*37

DW86HS75-4004

4.00

0.5

2.5

347

25

4

1400



1.7

75

Φ14*37

DW86HS80-4208

4.20

0.75

3.4

486

35

8

1400

1.2

2.3

80

Φ14*37

DW86HS80-5504

5.50

0.46

4

486

35

4

1400

1.2

2.3

80

Φ14*37

DW86HS94-2008

2.00

3.2

15

611

44

8

1700



2.1

94

Φ14*37

DW86HS94-4008

4.00

0.8

3.5

597

43

8

1700



2.1

94

Φ14*37

DW86HS113-3504

3.50

0.53

6.5

763

55

4

2700



2.8

113

Φ14*37

DW86HS113-6008

6.00

0.43

2.5

763

55

8

2700



2.8

113

Φ14*37

DW86HS118-4208

4.20

0.9

6

833

60

8

2700

2.4

3.8

118

Φ14*37

DW86HS118-6004

6.00

0.6

6.5

902

65

4

2700

2.4

3.8

118

Φ14*37

DW86HS151-2008

2.00

3.9

20

1110

80

8

3600



3.7

151

Φ14*37

DW86HS151-3004

3.00

1.9

22

1110

80

4

3600



3.7

151

Φ14*37

DW86HS156-4208

4.20

1.25

8

1180

85

8

4000

3.6

5.4

156

Φ14*37

DW86HS156-6204

6.20

0.75

9

1249

90

4

4000

3.6

5.4

156

Φ14*37
