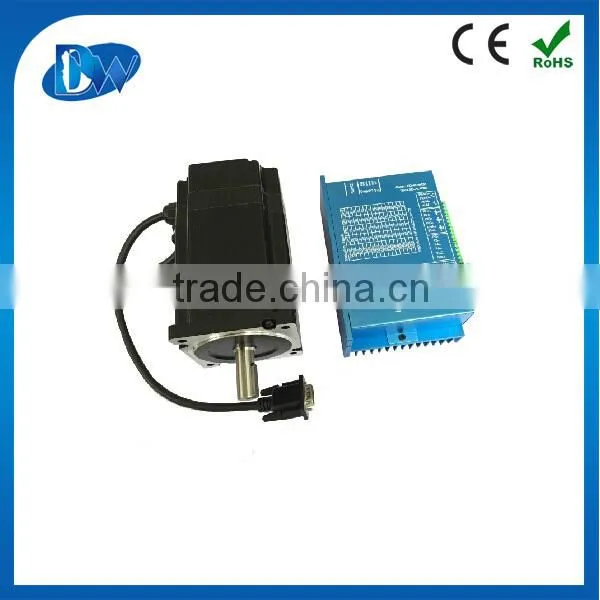

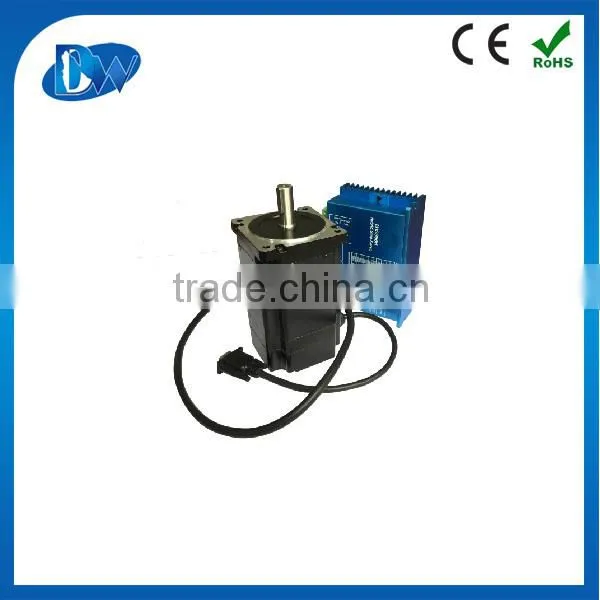

Help CenterStepper Motor With Encoder ,Nema 34 Closed Loop Hybrid Stepping Motor Manufacturing
Related Products
-
2014 Best Hot-sale 1.8 Degree ,86*86mm Closed Loop Hybrid Stepping Motor ManufacturingUS$ 57.39 - 65.99MOQ: 1 Piece -
Nema34 1000 Lines Encoder Servo-stepper Motor ,highest Speed and QualityUS$ 108 - 145MOQ: 1 Piece
-
Nema 23 Stepper Stepper 12V 24V dc Motor With EncoderUS$ 75 - 100MOQ: 1 Piece
-
1.8 Degree ,size 86 Closed Loop Hybrid Stepping Motor ManufacturingUS$ 57.39 - 65.99MOQ: 1 Piece
-
Step Motor With Encoder ,Nema 34 156mm Closed Loop Hybrid Stepping Motor ManufacturingUS$ 172.39 - 180.39MOQ: 1 Piece
All series of stepper motor are produced.
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.
nema 34 easy-servo hybrid model :
| Series | Model | Step Angle | Current | Resistance | Inductance | Holding Torque | Length |
| A | ±10% Ω | ±20% mH | N.M | mm | |||
| nema23 | DW57HSE2N-D25 | 1.8° | 4 | 0.5 | 1.8 | 2 | 76 |
| nema24 | DW60HSE3N-D25 | 5 | 0.45 | 1.8 | 3 | 88 | |
| nema34 | DW86HSE4N-BC38 | 6 | 0.45 | 3.7 | 4 | 82 | |
| DW86HSE8N-BC38 | 0.44 | 3.7 | 8 | 118 | |||
| DW86HSE12N-BC38 | 0.45 | 5.2 | 12 | 156 |
Dimension :mm
The graphic of torque and Speed:
We provide standard packing for products.
Plastic foam will be put in carton boxes.
We deliver our goods by sea, air and courier service.
You may contact us to check the shipping status of your order.
Shipping time, after confirmed the details, usually one week is enough for us to make stepper motor sample. Bulk order delivery time depends on the quantity that you need.
Except stepper motor , we also supply breakout board, power supply and so on ,pls check following items.
Terrific after-sales service: 24hours around the clock & 12 months Warranty
Life-long maintenance service for the product.
If you need more information, Pls contact to me.
Our contact information:
Changzhou Dewo International Co.,Ltd
Contact Person : wendy wang
Mobile:86-18018256960
Skype: 816
More Quantity . more discount !!!
Changzhou Dewo International Trade Co., Ltd., exporting stepper motors, motor drivers, BLDC motor and PM motor. We spcialize in this field for many years, with the strength of high quality and competitive price in China.
We have our own techinical department and we developed various models of stepper motor, we also have complete drawings for our motors.
We can provide complete technical proposal for your project.
Any question about stepper motor, please contact me online or send me mail. We will reply you within 2 days!
our certification:
Our team and Exhibition:
our friend:
Question 1: How to choose the suitable stepper motor?
Answer: There are several important items: size, length of stepper motor, holding torque, voltage, current etc. After confirm some them and told us, we can send you the suitable one.
Question 2: Any other methods to finalize the model?
Answer: Sure, you can send us the model you are using, we can help you find the suitable one.
Question 3: When can I get the drawing of stepper motor?
Answer: We will provide drawings of stepper motor after you place the order.
