Nema 23 Stepper Motor With Brake, 1.8 Degree, CE, ROHS, With Extremely Competitive Price

Nema 23 Stepper Motor With Brake, 1.8 Degree, CE, ROHS, With Extremely Competitive Price thumbnail-1
Nema 23 Stepper Motor With Brake, 1.8 Degree, CE, ROHS, With Extremely Competitive Price photo-1
US$ 37.69 - 42.69 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DEWO
Model Number:
DW57HSB76-3004
Contact Supplier Request Quote Chat Now
Changzhou Dewo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name DEWO
Model Number DW57HSB76-3004
Phase 2
Type Other, Hybrid, Hybrid
Certification CE, ISO, ROHS, UL
Step Angle(degrees) 1.8 degree
Holding Torque 250 oz-in / 18 kg-cm
Current / Phase 3.0A

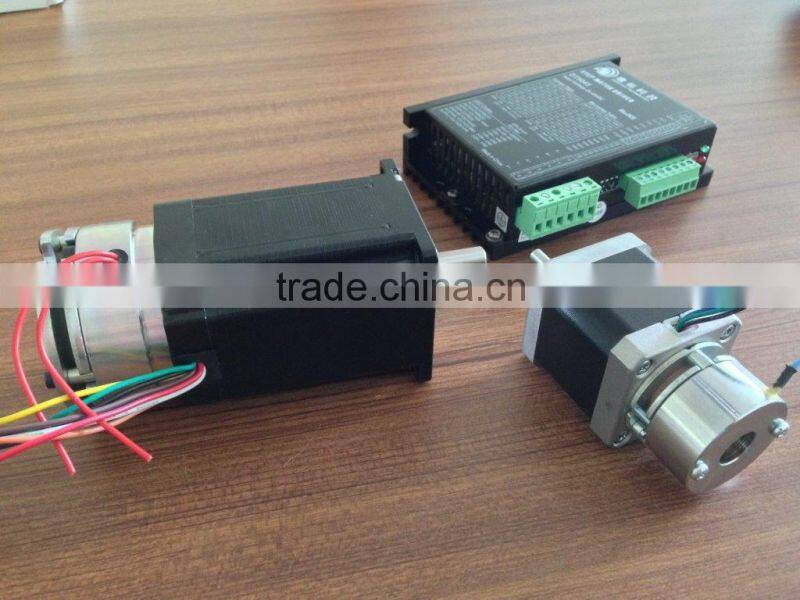

nema 23 stepper motor with brake, 1.8 degree, CE, ROHS, with extremely competitive price

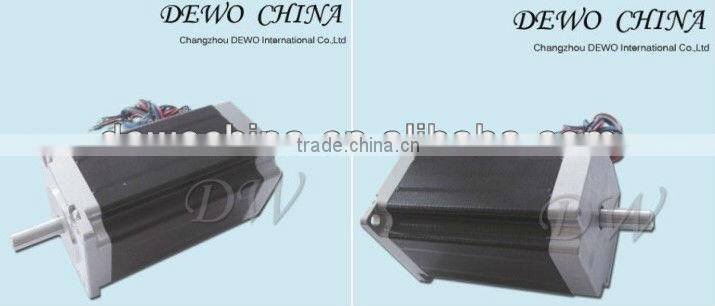

nema 23 stepper motor with brake, 1.8 degree, CE, ROHS, with extremely competitive price

Technique parameter

Item

Specification

Step Angle

1.8°

Step Angle Accuracy

±5% (full step,no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80°CMax.(rated current,2 phase on)

Ambient Temperature

-10°C~+50°C

Insulation Resistance

100MΩMin.  500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06Max.(450 g-load)

Shaft Axial Play

0.08Max.(450 g-load)

DW57HS Motor Name List(High Torque)

Model No

Current/Phase

Resistance/Phase

Inductance/Phase

Holding Torque

Of Leads

Rotor Inertia

Weight

Length

Diameter of axle

A

Ω

mH

Oz-in

Kg-cm



g-cm2

Kg

mm

mm

DW57HS41-0404

0.40

35.5

52.0

76

5.5

4

120

0.47

41

Φ6.35*21

DW57HS41-0306

0.3

30

30

42

3

6

120

0.47

41

Φ6.3

DW57HS41-1004

1

5.4

9.5

76

5.5

4

120

0.47

41

Φ6.3

DW57HS41-1504

1.5

1.8

3.3

69

5

4

120

0.47

41

Φ6.3

DW57HS41-1006

1.00

5.7

5.4

54

3.9

6

120

0.47

41

Φ6.35*21

DW57HS41-2006

2.00

1.4

1.2

54

3.9

6

120

0.47

41

Φ6.35*21

DW57HS41-3004

3.00

0.6

1.0

76

5.5

4

120

0.47

41

Φ6.35*21

DW57HS51-0604

0.60

35.0

12.0

133

9.6

4

275

0.65

51

Φ6.35*21

DW57HS51-1006

1.00

6.6

8.2

100

7.2

6

275

0.65

51

Φ6.35*21

DW57HS51-2006

2.00

1.65

2.2

100

7.2

6

275

0.65

51

Φ6.35*21

DW57HS51-3004

3.00

0.8

2.4

100

7.2

4

275

0.65

51

Φ6.35*21

DW57HS56-0404

0.40

15.0

60.0

111

8.0

4

300

0.7

56

Φ6.35*21

DW57HS56-1006

1.00

7.4

10.0

125

9.0

6

300

0.7

56

Φ6.35*21

DW57HS56-1004

1

7.5

15

142

9.8

4

300

0.7

56

Φ6.3

DW57HS56-1504

1.5

2.8

8

125

9

4

300

0.7

56

Φ6.3

DW57HS56-2006

2.00

1.8

2.5

125

9.0

6

300

0.7

56

Φ6.35*21

DW57HS56-3004

3.00

0.8

1.2

125

9.0

4

300

0.7

56

Φ6.35*21

DW57HS64-1204

1.2

2.6

10

150

10.8

4

380

0.75

64

Φ6.35

DW57HS64-1508

1.5

3.5

5.5

164

11.8

8

380

0.75

64

Φ6.35

DW57HS64-2004

2

1

4

181

13

4

380

0.75

64

Φ6.35

DW57HS64-2506

2.5

1.3

2

167

12

6

380

0.75

64

Φ6.35

DW57HS76-0404

0.40

38.0

150.0

250

18.0

4

480

1.0

76

Φ6.35*21

DW57HS76-1006

1.00

8.6

14.0

187

13.5

6

480

1.0

76

Φ6.35*21

DW57HS76-2006

2.00

2.25

3.6

187

13.5

6

480

1.0

76

Φ6.35*21

DW57HS76-3004

3.00

3.5

1.4

250

18.0

4

480

1.1

76

Φ6.35*21

DW57HS82-1004

1

10

44

306

22

4

520

1.3

82

Φ6.3

DW57HS82-2506

2.5

2.2

3.8

250

18

6

520

1.1

82

Φ6.3

DW57HS82-4506

4.5

0.7

1.2

250

18

6

520

1.1

82

Φ6.3

DW57HS82-4004

4.00

2.0

0.5

271

19.5

4

520

1.5

82

Φ6.35*21

DW57HS110-3004

3

2.4

10

444

32

4

700

1.8

110

Φ8*21

DW57HS110-1508

1.5

6.2

14

361

26

8

700

1.8

110

Φ8*21

DW57HS110-3504

3.5

0.7

3

361

26

4

700

1.8

110

Φ8*21

DW57HS110-4004

4.00

4.6

1.0

389

28.0

4

700

1.8

110

Φ8*21

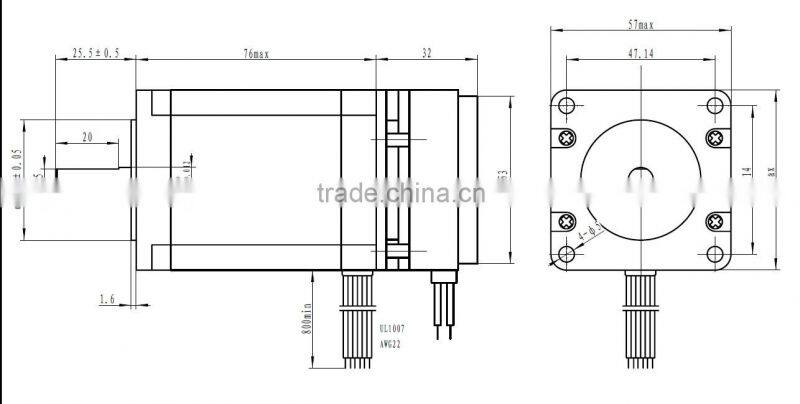

nema 23 stepper motor with brake, 1.8 degree, CE, ROHS, with extremely competitive price
