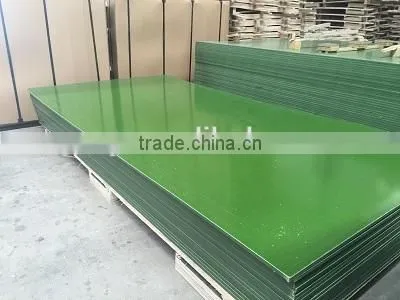

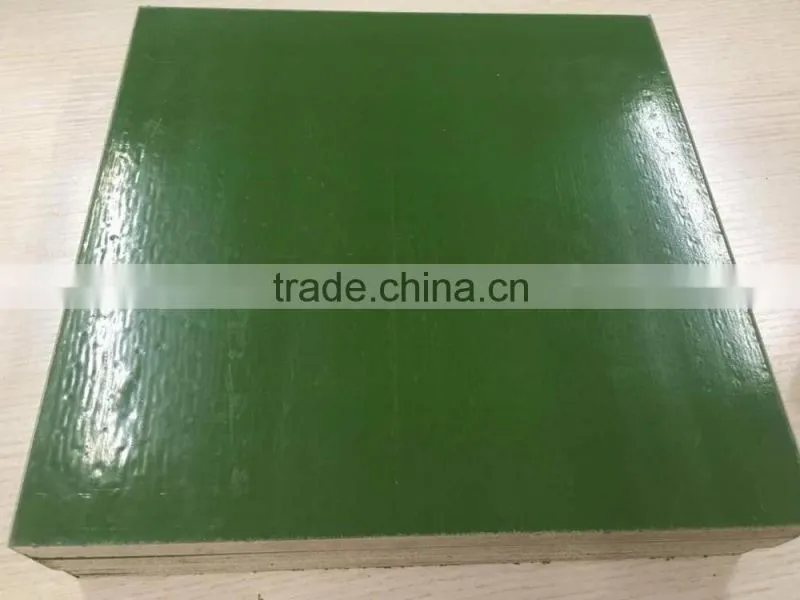

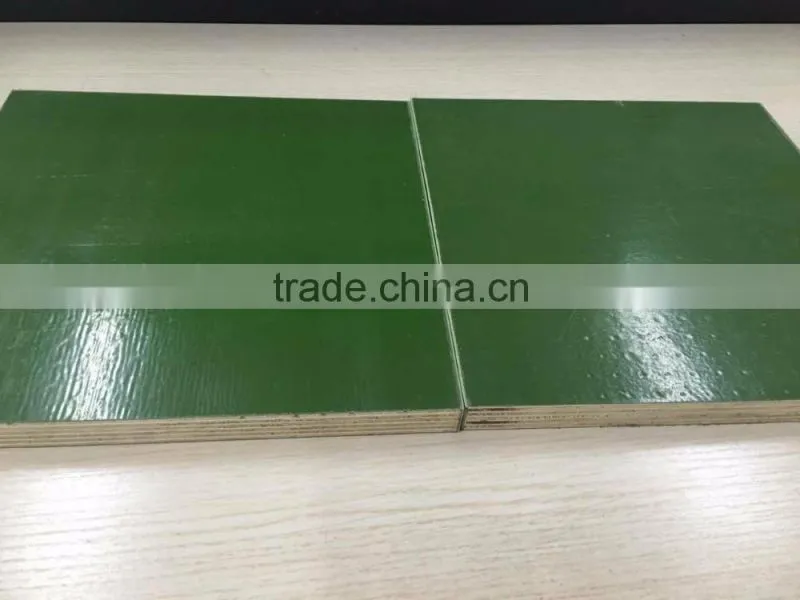

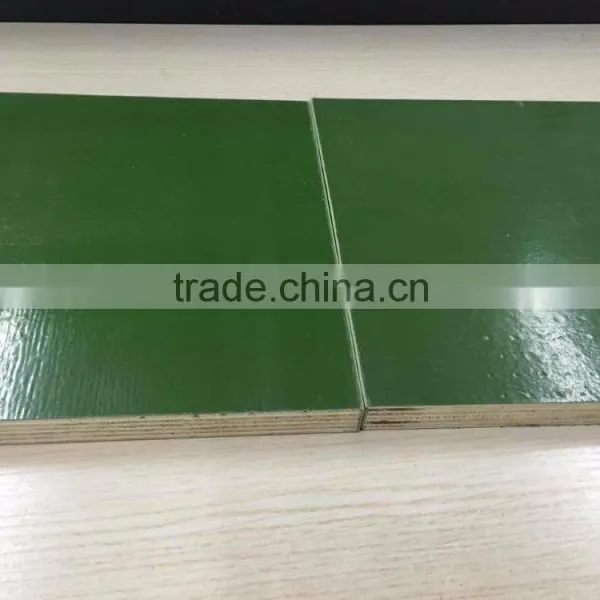

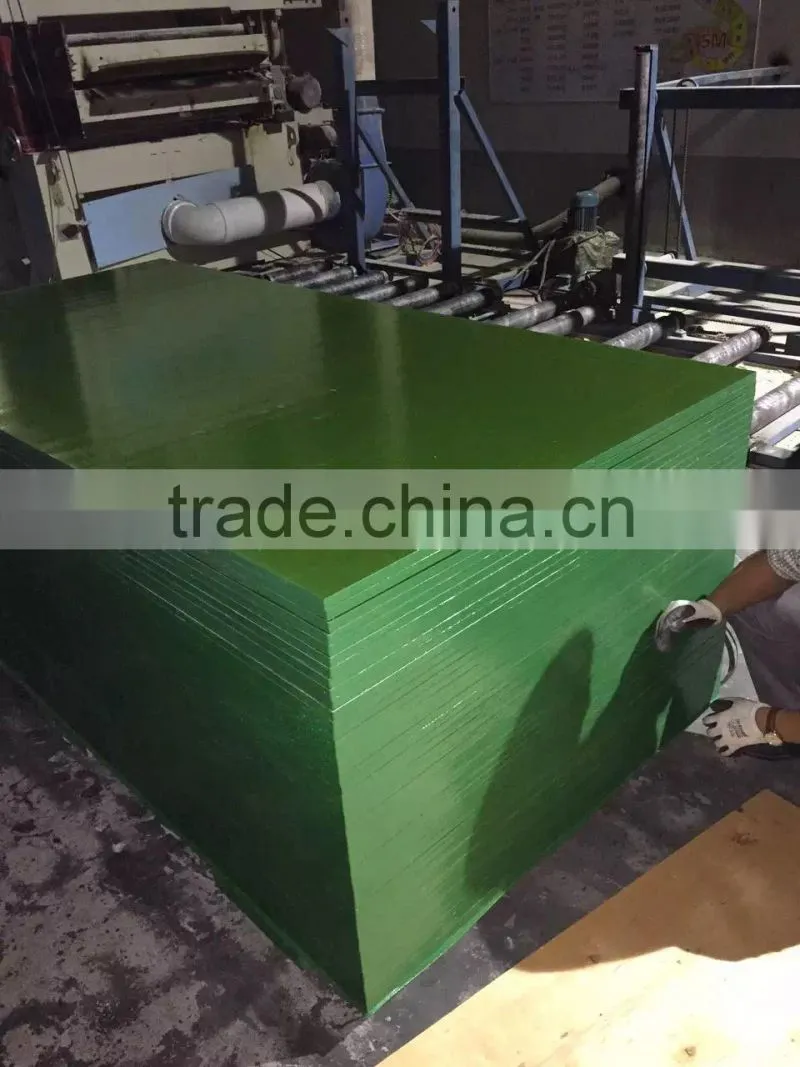

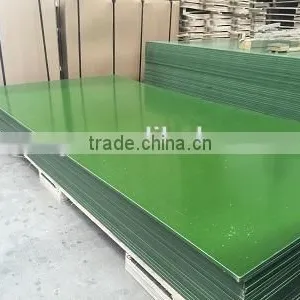

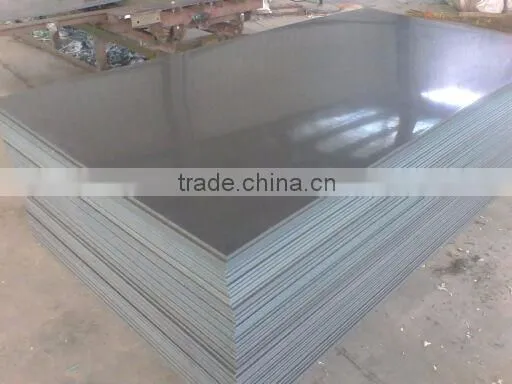

PP Plastic Formwork Boards
Products description:
Size |
915*1830mm 1220*2440mm 1250*2500mm |
Thickness |
12/15/18/21mm |

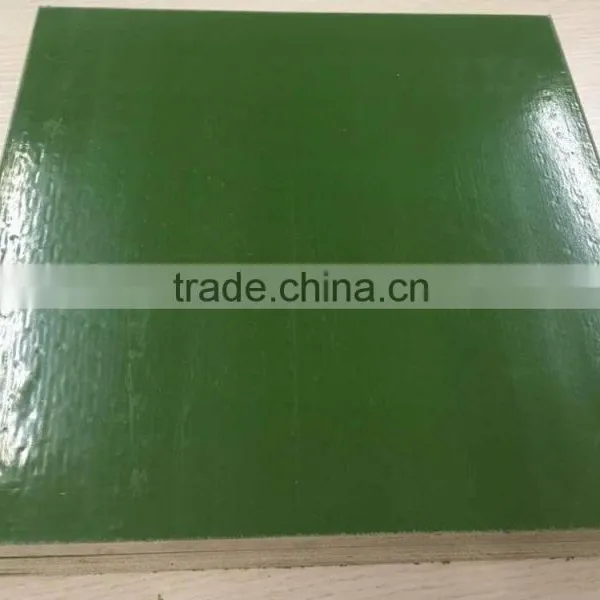

Surface |
PP plastic ( glossy /matt/ anti-slip) |
Adhesive of surface |
Imported PUR glue |
Core |
Poplar core ( with A grade core veneer) |
Glue |
WBP Phenolic glue, could be boiled for more than 72hours without delamination |
Edges |
Seal |
Color |
Red/ blue/Green/ etc |
|
Advantages :
v Could be reused for more than 30 times for formwork v With WBP glue, 72 hours water boiling without delamination v Excellent combination of plastic and plywood in performance v Easy installation as film faced plywood v Easy leaning by water | |
|

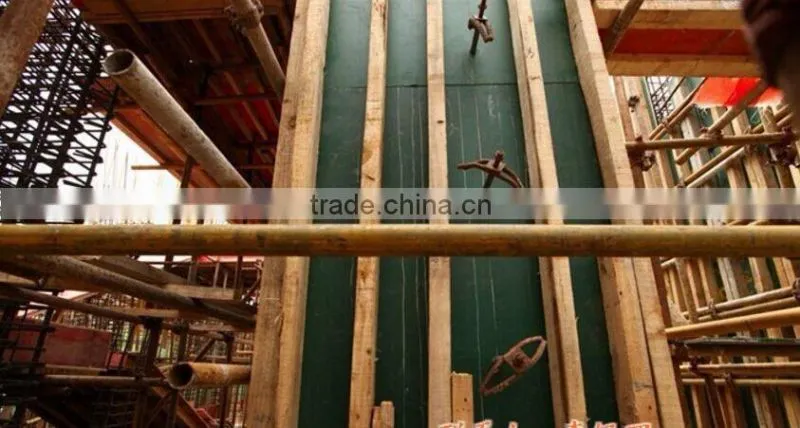

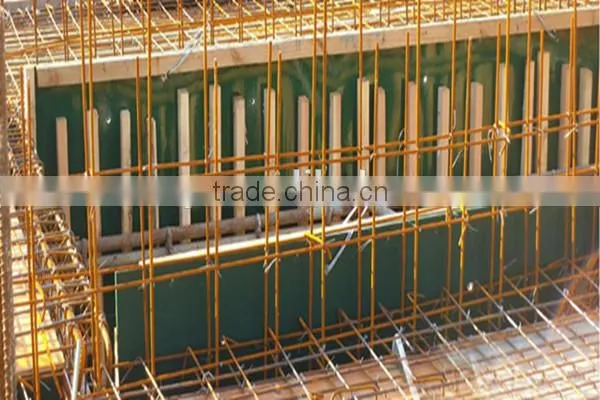

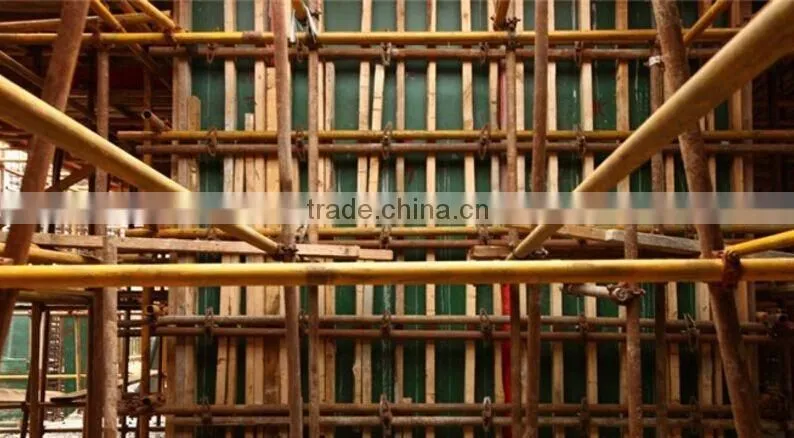

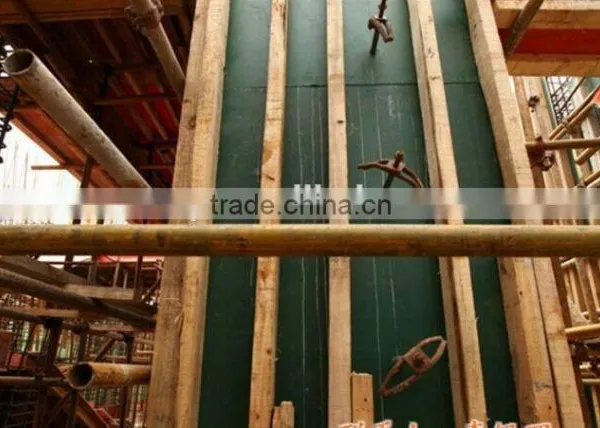

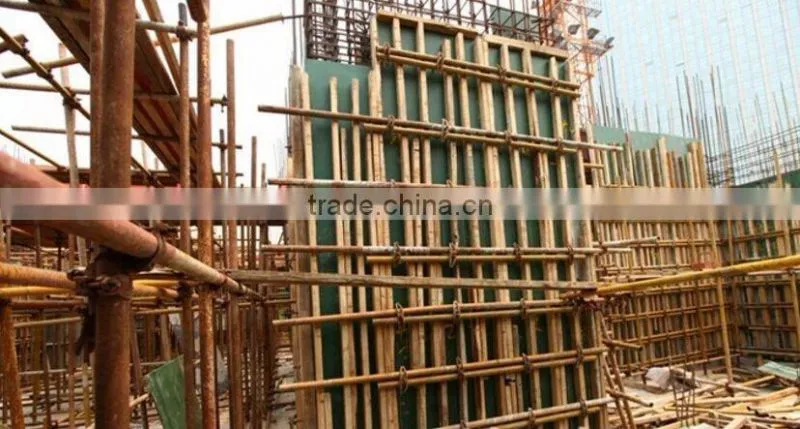

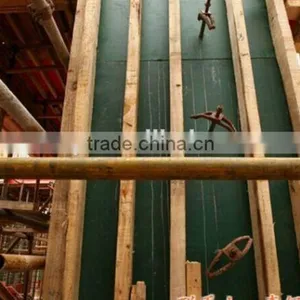

v Application : for concrete forming of walls, slabs, beams & columns v Dismantling : Handle carefully without violent damage and scratch to ensure more usages in good condition v Maintenance & Storage: No oil treatment, place the panel flat, away from direct sunlight and water | |
|
Contact:
v Name: Ms Doris Deng v Email: nnwymy at v Skype: doris_crystal v QQ: 356500790 v Mobile: 0086-13558482831
| |
Technical data
Testing items |
Unit |
Standard used |
Tested value |
|
Bonding quality |
N/mm² |
EN314 |
0.72 |
|
Bending strength |
Longitudinal grain |
N/mm² |
EN310 |
50.0 |
Cross grain |
N/mm² |
40.2 |
||
Elasticity in bending |
Longitudinal grain |
N/mm² |
EN310 |
5137 |
Cross grain |
N/mm² |
3519 |
||
Loading quantity
Thickness |
Size |
Weight/sheet |
Qty/20GP |
Qty/40HQ |
12mm |
1220x2440mm |
18.93 kgs |
600 sheets |
1350 sheets |
15mm |
1220x2440mm |
23.67 kgs |
480 sheets |
1080 sheets |
18mm |
1220x2440mm |
28.40 kgs |
400 sheets |
900 sheets |
21mm |
1220x2440mm |
33.13 kgs |
344 sheets |
774 sheets |
