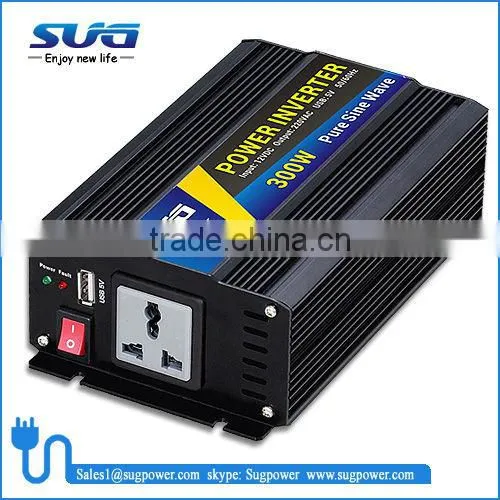

300W Smart Series Pure Sine Wave Power Inverter

300W Smart Series Pure Sine Wave Power Inverter thumbnail-1
300W Smart Series Pure Sine Wave Power Inverter photo-1
US$ 28.22 - 29.63 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SUG
Model Number:
SGP-300A
Contact Supplier Request Quote Chat Now
Wenzhou SUG New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SUG
Model Number SGP-300A
Output Power 201 - 300W
Output Type Single
Size 19.5*11.2*6CM
Weight 1KG
Input Voltage 12/24VDC
Output Voltage 220/110VAC±5%
Type DC/AC Inverters
Output Frequency 50/60HZ±3%
Output Current 4.5A

300W Smart Series Pure Sine Wave Power Inverter



1.Products Description:

300W Home dc to ac power inverter with charger convert 12/24V DC into 110V/220V AC, Only simply plug your inverter into the cigarette lighter socket from the console in your vehicle then get power for your electronic devices such as laptops, DC players, phone chargers etc. USB charging port offers an additional choice for user. It can charge for digital equipments.

2.Products   Features:

INPUT:DC 12V -15% +30% OUTLET:220±5% Normal input voltage range:12V/24V 1.High conversion efficiency , fast start 2.Multiple protection circuit for low voltage , over voltage , overload , short-circuit , overheat ect . 3.Built-in cooling fan 4.Anodized aluminum case provides durability & max heat dissipation 5.Wide application for various fields like automobiles , boats , mobie office , family , emergency and outdoor work ect .



Specifications :

Model SGP300A-121 SGP300A-122 SGP300A-241 SGP300A-242 SGP300A-481 SGP300A-482
Rated Power 300W
Surge Power 600W(few seconds)
Input Voltage 12VDC 24VDC 48VDC
Output Voltage 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5% 110VAC±5% 220VAC±5%
USB Port 5V 1A
Frequency 50Hz±3 or 60Hz±3
Output Waveform Pure Sine Wave
Soft Start YES
AC Regulation THD<3%(Linear Load)
Output Efficiency 94% MAX
No Load Current 0.6A 0.3A 0.1A
DC Voltage Range 10-15.5V 20-31V 40-61V
Low Voltage Alarm 10.5±0.5V 21±0.5V 42±1V
Low Voltage Shut Down 10±0.5V 20±0.5V 40±1V
Low Voltage Recovery 13±0.5V 24±0.5V 48±1V
Over Voltage Shut Down 15.5±0.5V 31±0.5V 61±1V
Over Voltage Recovery 14.8V±0.5V 29V±0.5V 59V±1V
Cooling Way Intelligent Cooling Fan
Protection Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature -10℃ - +50℃
Net Dimension 32.6*16.5*8.7cm (L×W×H)
Inner Box Dimension 35.1*20.5*12.2cm (L×W×H)
Meas./Ctn 67.5*37.3*29.7cm / 6pcs
N.W./Unit 1kg (1.2kg With Inner Box)
G.W./Ctn 23KGS
Packing Colour box
Warranty 2 Years



Other Models:



Product Internal Structure:



Product Features :

300W Smart Series Pure Sine Wave Power Inverter



Structure :
300W Smart Series Pure Sine Wave Power Inverter



Warantee :



Packing:

300W Smart Series Pure Sine Wave Power Inverter
