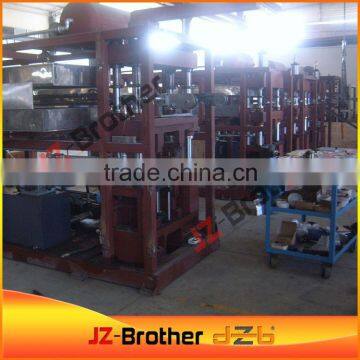

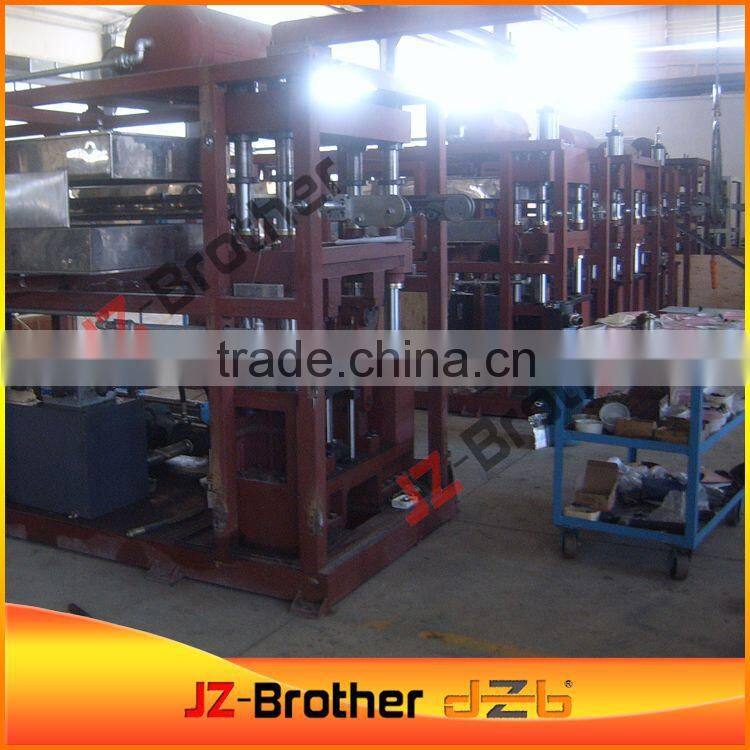

Best Quality disposable plastic cup making machine
Main Technical Parameters
Name |
disposable plastic cup making machine |
||
Type |
JZ-XPC-660 |
JZ-XPC-700 |
JZ-XPC-720 |
Formed area |
650*320mm |
700*350mm |
720*450mm |
Formed depth |
120/180mm |
120/180mm |
120/180mm |
Formed speed |
20-35 times/min |
20-35 times/min |
20-35 times/min |
Max.width of flake board |
700mm |
750mm |
750mm |
Thickness of flake board |
0.3-2.0mm |
0.3-2.0mm |
0.3-2.0mm |
Gross power |
45kw |
50kw |
55kw |
Air wastage |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
Water request |
0.5m3/h |
0.5m3/h |
0.5m3/h |
Weight |
4200kg |
5000kg |
6000kg |
Dimension |
3.4*1.4*2.1m |
3.4*1.6*2.3m |
3.4*1.6*2.3m |
Feature
operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of formed machine, material rack, material receiving machine and screen controlled by electricity.The machine is fit for producing PP, PE,PET, PS, HIPS plastic products. Heat the plastic flake board to some degree until it is formed to make different containers, like, milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box, food box, etc,
