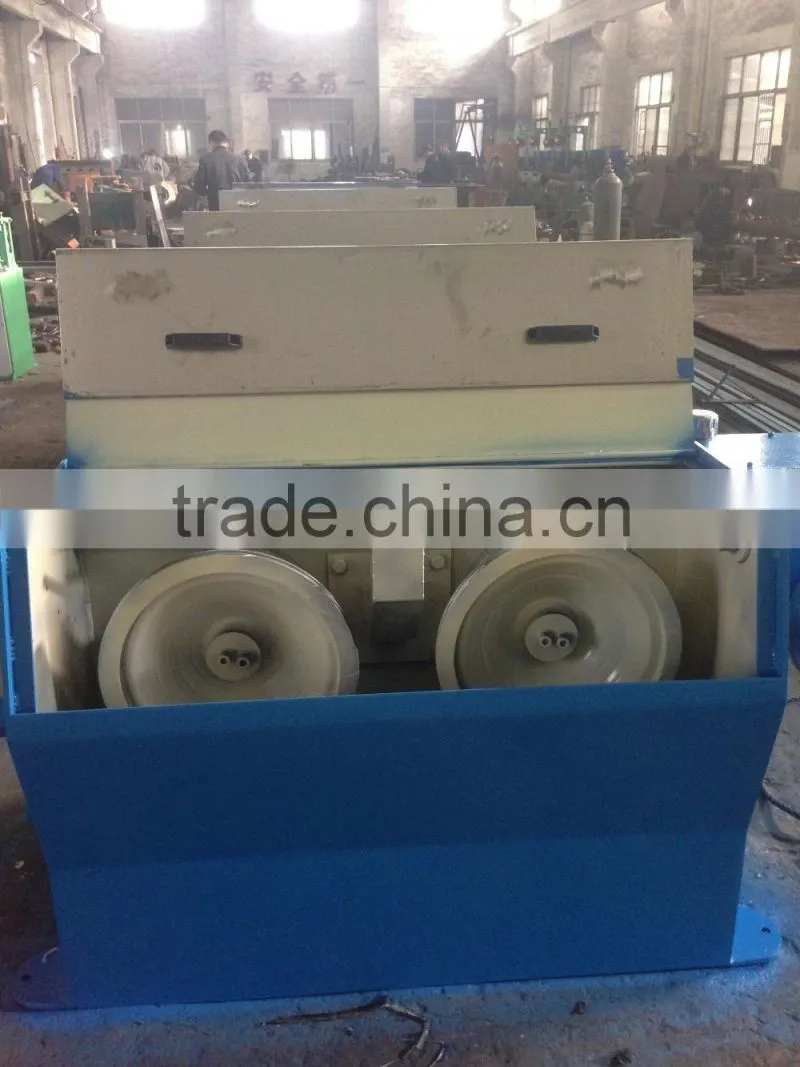

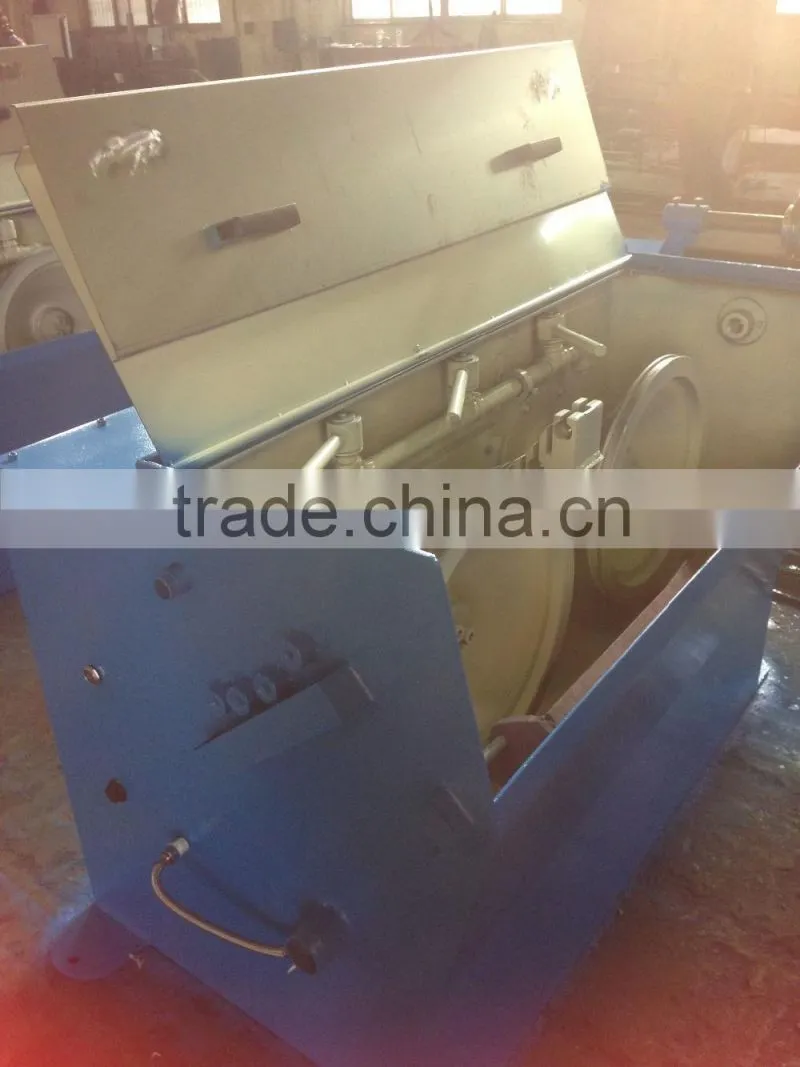

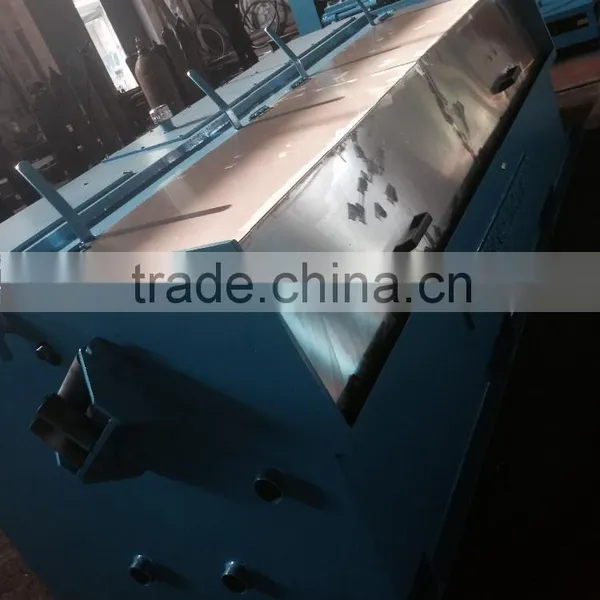

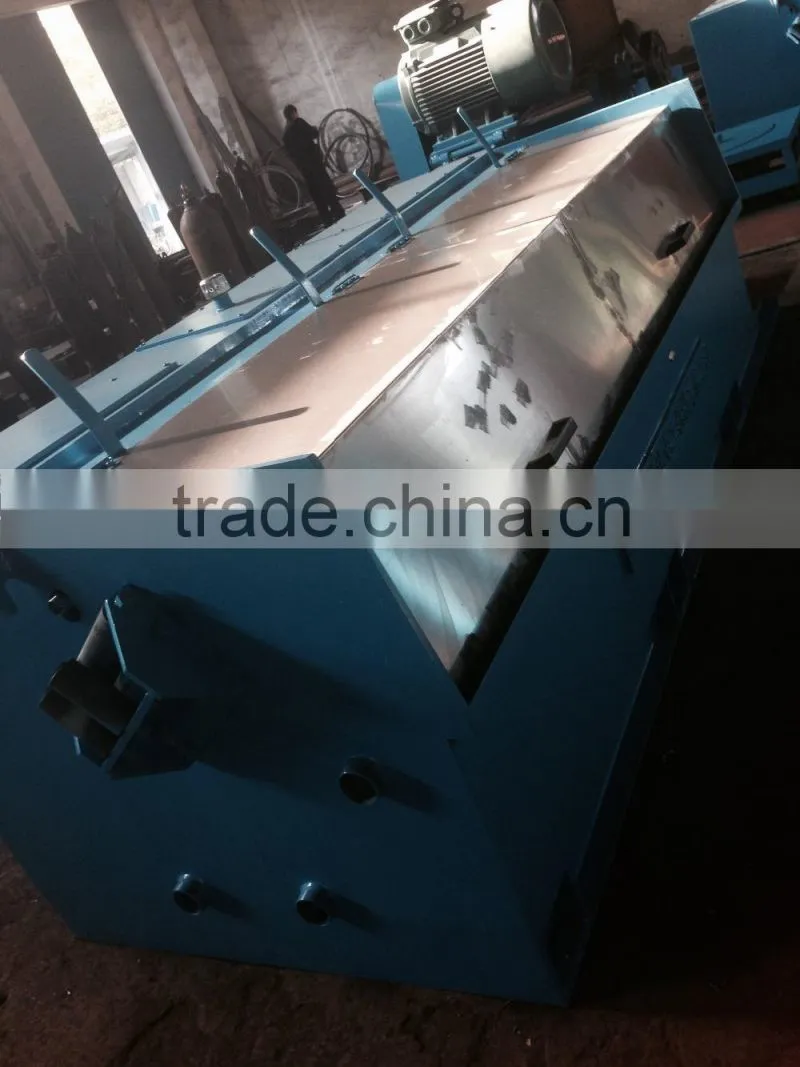

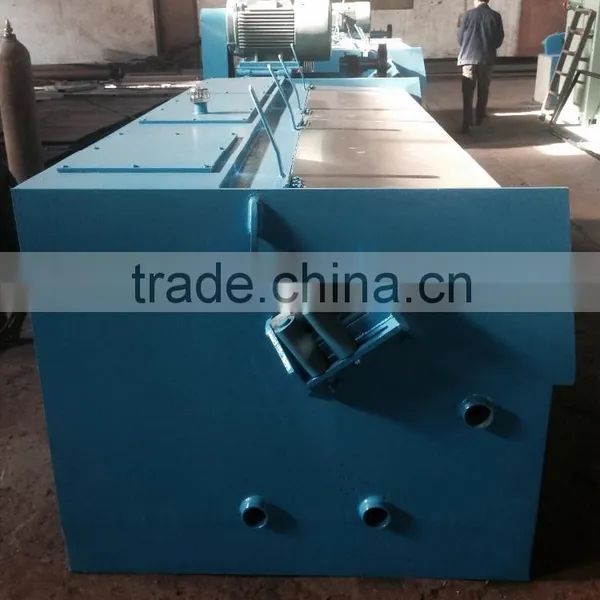

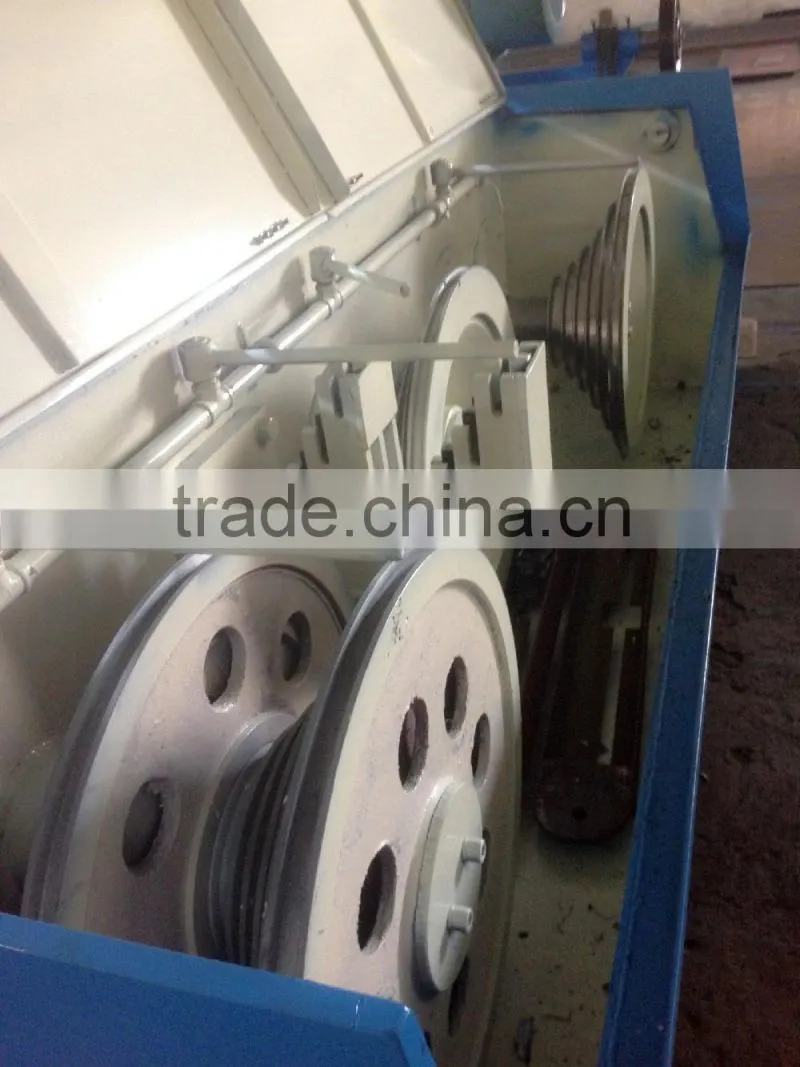

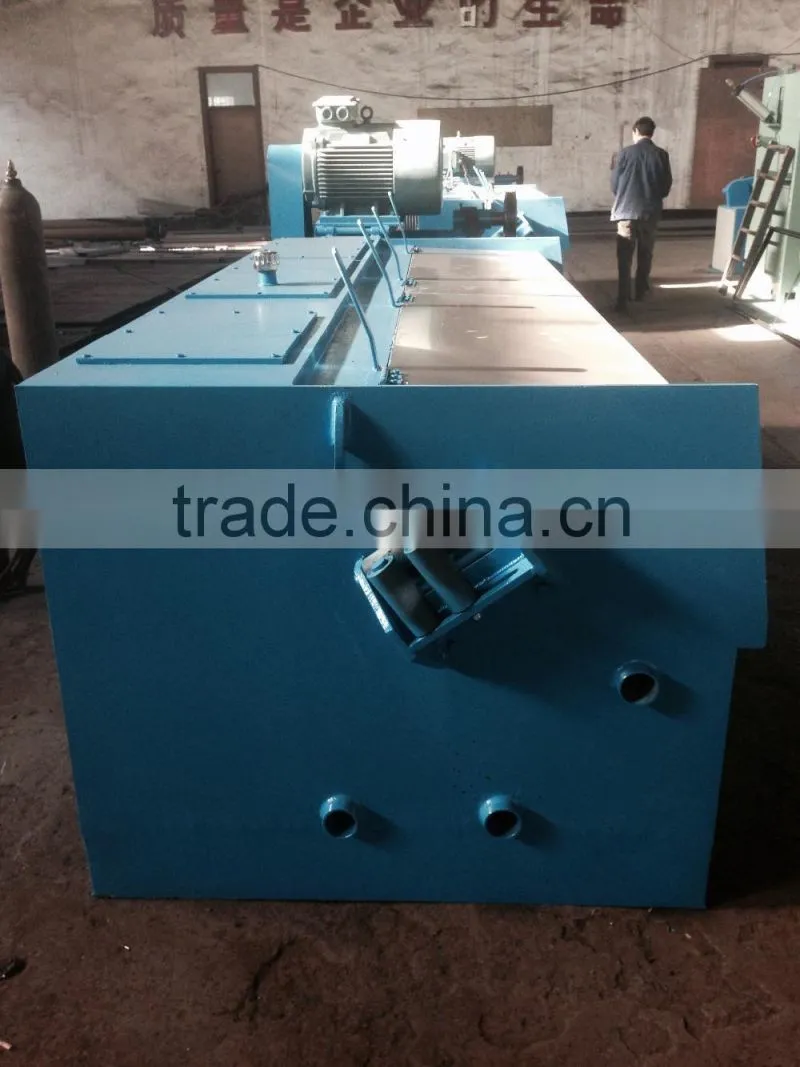

Help CenterLT Series Wet Wire Drawing Machine/Saponification Liquid Drawing Machine
Related Products
-
Heavy Water Tank Wire Drawing Machine/LT Series Wet Wire Drawing MachineUS$ 1,000 - 20,000MOQ: 1 Set -
New Type LT15-450 Water Tank/Wet/Liquid/wire Drawing Machine(facory)/wire Drawing MachineUS$ 1,000 - 20,000MOQ: 1 Set
-
LT Series Steel Wire Drawing Equipment PriceUS$ 1,000 - 20,000MOQ: 1 Set
-
LT High Carbon Wet Wire Drawing Machine ManufacturerUS$ 1,000 - 20,000MOQ: 1 Set
-
LTA15/450 Medium-sized Water Tank Wire Drawing MachineUS$ 1,000 - 20,000MOQ: 1 Set
Wuxi Wandeshun Machine Co., Ltd (we are factory)
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
My contact way
My mobile: 86-13921534531
Whatsapp: 86-13921534531
Skype: jeaqueline998
trademanager: wxwds
Email:sales(at)
QQ:349791577
Product Details
Wuxi Wet/water tank Wire Drawing Machine/ Drawing Machine Factory
Specifications
1) Min. order: 1 set
2) Package details: as the normal export
3) Delivery time : 1 months
4) Payment terms: L/C T/T
1. Feature of the drawing machine
The drawing machine applies advanced international technology,with digestion and absorption, the drawing machine id applicable for high intesity and performance demand. It mainly applied for the production of steel curtain wire,tyre steel wire ,steel wire for rope,spring steel wire ,stainless steel wire etc. The capston diameter of the straight line drawing machine series products is Φ350- Φ1200mm with maxium inlet diameter of Φ14mm and minimum outlet diameter of 0.7mm.
Main Technical Parameter
2. Technical parameters:
Item |
Specifications |
Name |
Turnover wet wire drawing machine |
Model |
LT11/350 |
Operating range |
(1)Low carbon steel wire (2)Inlet wire tensile strength: ≤900Mpa (3)Drawing wire from3.5mm to 1.6mm |
Drawing speed |
5m/s |
Motor Power |
AC 55Kw 220-300V 60HZ frequency motor |
Transmission form |
Herringbone gear transmission |
Cone pulley |
(1) Cone pulley adopts the integral type (2) The material is ZG55 steel. |
Cooling |
(1) Steel:Water emulsion immersion (2) Using large circulating cooling |
Braking Mode |
(1) The host is provided with a slow start and stop button |
Meter length |
Double pre-set electronic meter |
Electrical Control |
(1)Controlled by converter (2)Converter brand is Chinese famous brand (3) Low-voltage electrical uses CHINT |
our loadingand shipment photos
our clients and our machine
