Specifications
1)Min. order: 1 set2)Payment : T/T L/C
3)Package: normal export sea package met
4)deliverty time : 45-60 day
|
About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China,is specialized in manufacturing wire drawing machines,which was established in 2000. Our products are popular in many provinces of china and have already been exported to Vietnam, Indonesia,Uzbekistan.Iran Kenya, South Africa and so on. Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
Main products: Straight line drawing machine Water tank wire drawing machine Aluminium wire drawing machines Vertical wire drawing machine Pulley wire drawing machine
We have a professional technical team, a good after-sale service team, an excellent production management team. We can design and produce various wire drawing machines, auxiliary equipment according to customers’ special requirements

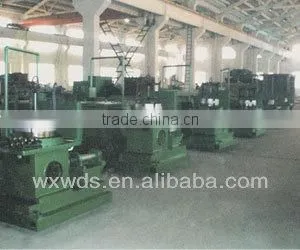

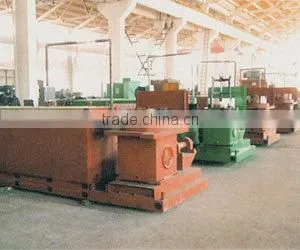

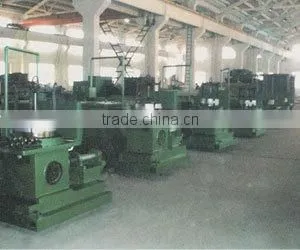

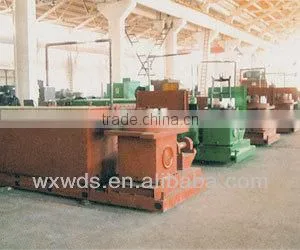

Water Tank Wire Drawing Machine
1.Description Reducer of the water drawing machine applies 8- module herringbone gear and the gear of inlet box is 10-module with speed ratio of 1:1. Material for axis of high-speed gear is high-frequency quenching 40Cr. Tower wheel can be made from commom cast steel 55#, commom cast steel 55# with high-frequency quenching, and commom cast steel #55 painted by tungsten carbide couplings that obtain proper bearing of the axis. Reducer, wet box, and charging box, are on the same base for easy installation and lifting. The surface painting is of high grade and both internal and external of electric-control cabinet applies plastic-spraying process. It is divided into commom control and variable-frequency conttol. Electric parts are all international famous brands
Heavy wet drawing machine is one of our products with more than 20% market share of China and 50% market share of key districts. Dozens of customers have purchase more than 10 sets of the machine. We will continuously seeking for high quality and competitive prices to contribute to Chinese matallic industry. ----------------------- 2.Pictures and Main Parameters
This company produces the LT series of water tank type wire drawing machine is self-development, production and general drawing machine. Suitable for drawing 6.5mm the following low, medium and high carbon metal wire, drawing the scope of application of steel wire rope, Available at the SG300-1150 horizontal-shaped round match-up Machine; machine transport, installation; drawing die immersed directly in cooling fluid saponification; drive with two powerful combination of dedicated narrow V belt drive gear boxes or full-gear transmission, the control mode sub-normal control, frequency control, soft starting control. With the traditional wheel-type wire drawing machine compared to 50% of its energy, input, low cost, small footprint, reducing the operator (single multi-machine). | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Main technical parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
