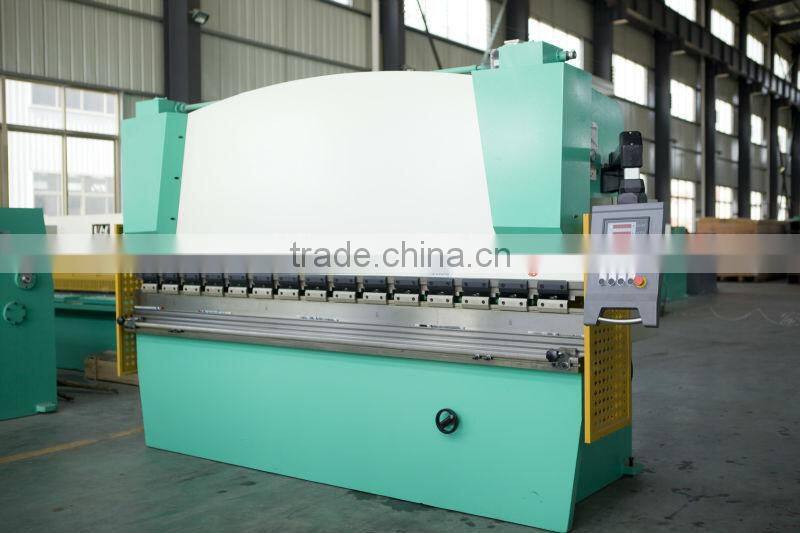

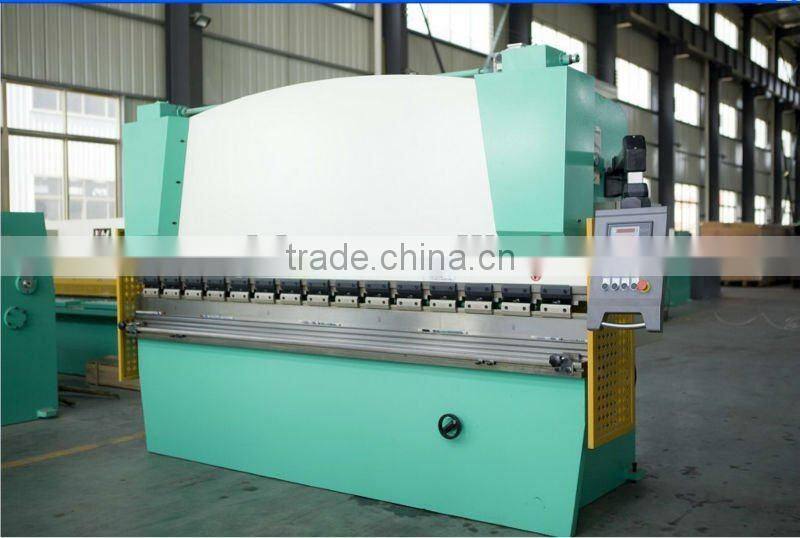

press brake for sale

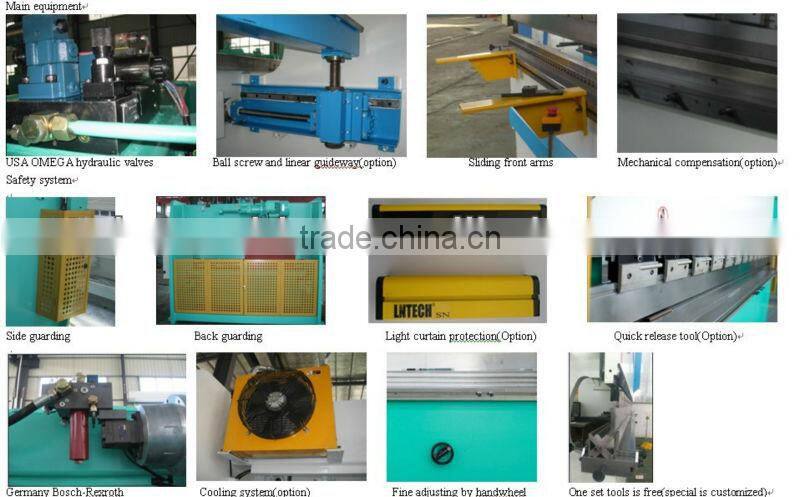

Main configuration |
1. Japan NOK hydraulic seals is used |
2.USA OMEGA hydraulic valves is standard for you, Germany BOSCH REXROTH is option |
3.Motorized-adjusting device of back gauge and rams stroke, |
4.Siemens and Schneider electric parts. |
5.Inner gear pump, with good quality and lower noise. |
Main Features |
1.Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity. |
2.Hydraulic top-drive, steadiness and reliability. |
3.Mechanical stop, steel torsion bar to maintain synchronization, high precision. |
4.Motorized-adjusting device of back gauge and rams stroke |
5.Deflection compensation unit installed on the top die. |
6.Travel limit protection. Full machine guarding with safety interlock. |
Technical data:
Tel us the thickness and the width, we can recommend you the suitable, contact me
Hydraulic press brake wc67 series | ||||||||
Specification |
Pressure KN |
Worktable length mm |
Distance between uprights mm |
Throat Depth mm |
Stroke mm |
Opening height mm |
Main motor KW |
Weight |
WC67Y-40/2000 |
400 |
2500 |
1550 |
250 |
120 |
325 |
4 |
2600 |
WC67Y-40/2500 |
400 |
2500 |
2050 |
250 |
120 |
325 |
4 |
3000 |
WC67Y-63/2500 |
630 |
2500 |
2050 |
250 |
120 |
330 |
5.5 |
4200 |
WC67Y-63/3200 |
630 |
3200 |
2600 |
250 |
120 |
330 |
5.5 |
5100 |
WC67Y-80/2500 |
800 |
2500 |
2050 |
320 |
120 |
370 |
7.5 |
5800 |
WC67Y-80/3200 |
800 |
3200 |
2600 |
320 |
120 |
370 |
7.5 |
6100 |
WC67Y-100/2500 |
1000 |
2500 |
2050 |
320 |
120 |
380 |
7.5 |
6000 |
WC67Y-100/3200 |
1000 |
3200 |
2600 |
320 |
120 |
380 |
7.5 |
6600 |
WC67Y-100/4000 |
1000 |
4000 |
3200 |
320 |
120 |
380 |
7.5 |
8100 |
WC67Y-125/3200 |
1250 |
3200 |
2600 |
320 |
120 |
380 |
7.5 |
7000 |

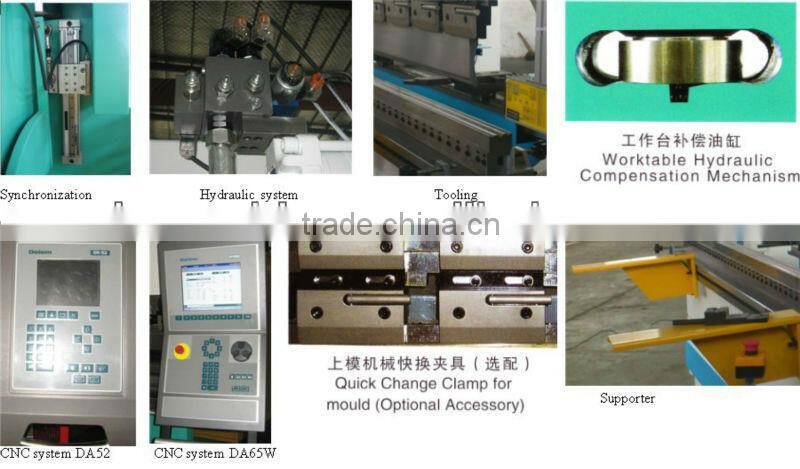

remarks: ESTUN E10,E21,E200,DELEM DA41,DA52s,DA65 control system is optional

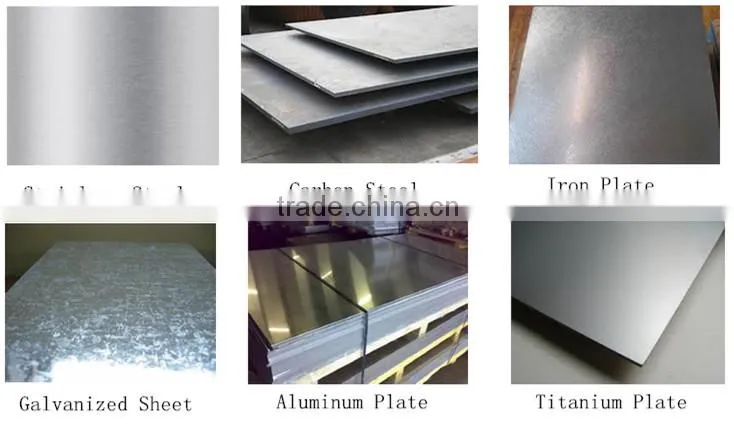

usage of press brake for sale

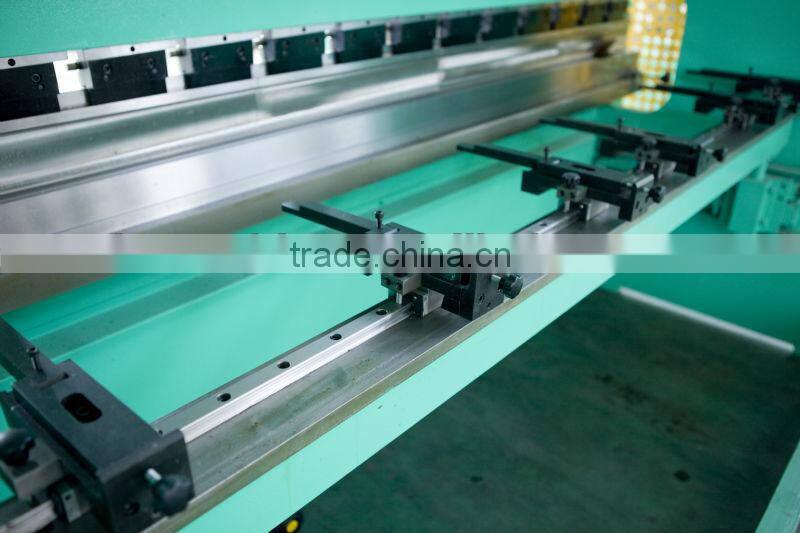

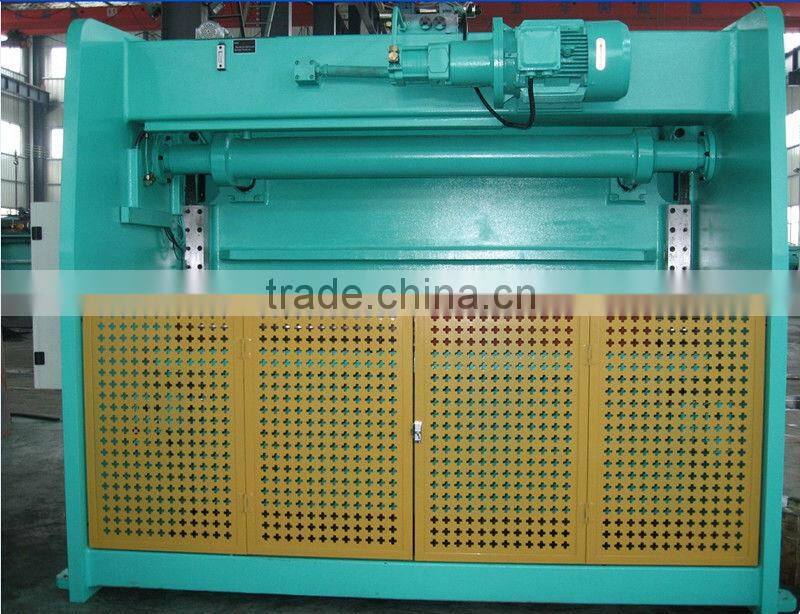

Back gauge of the machine

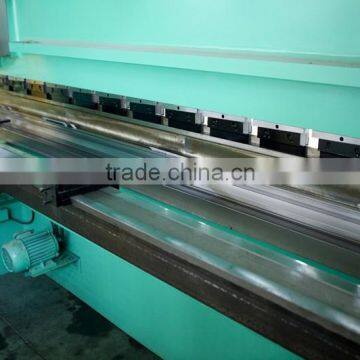

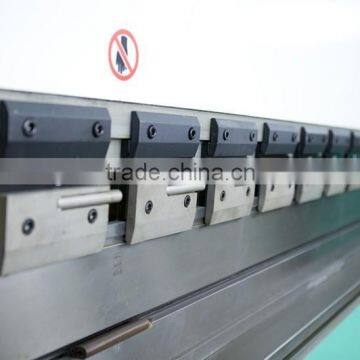

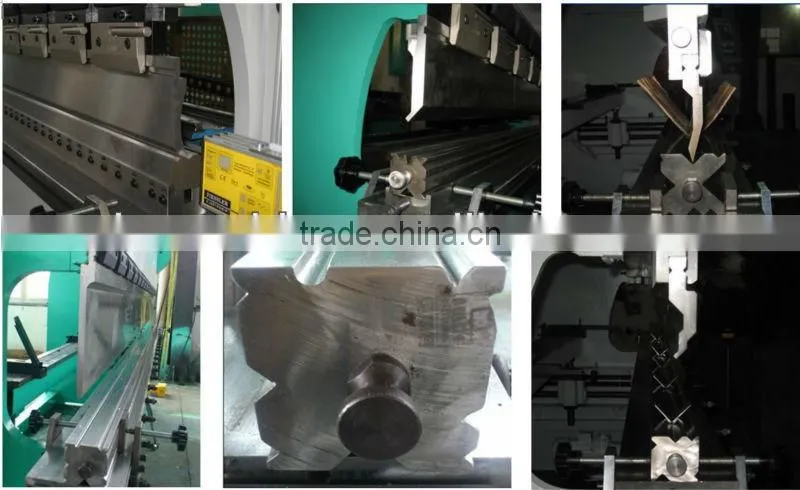

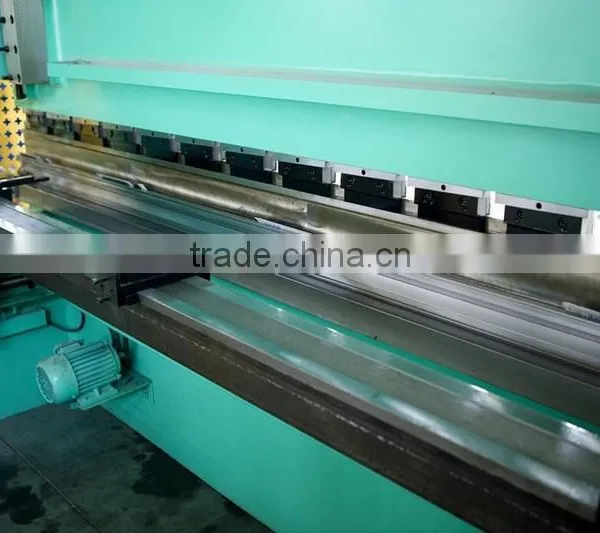

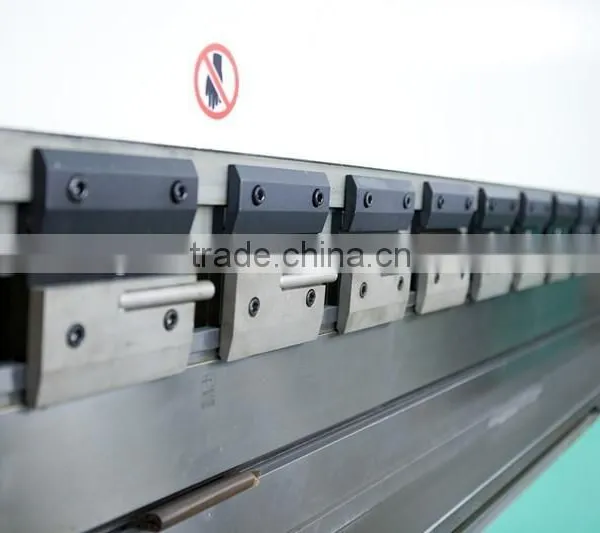

Upper and lower Tool

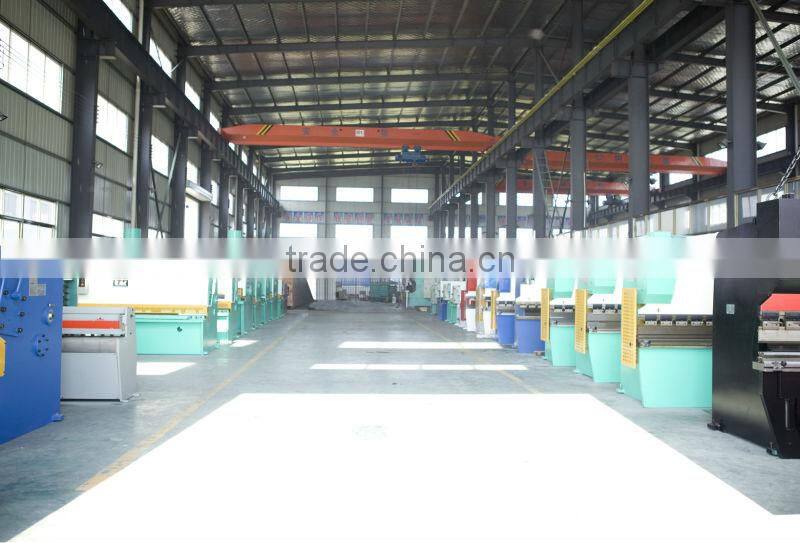

Our workshop

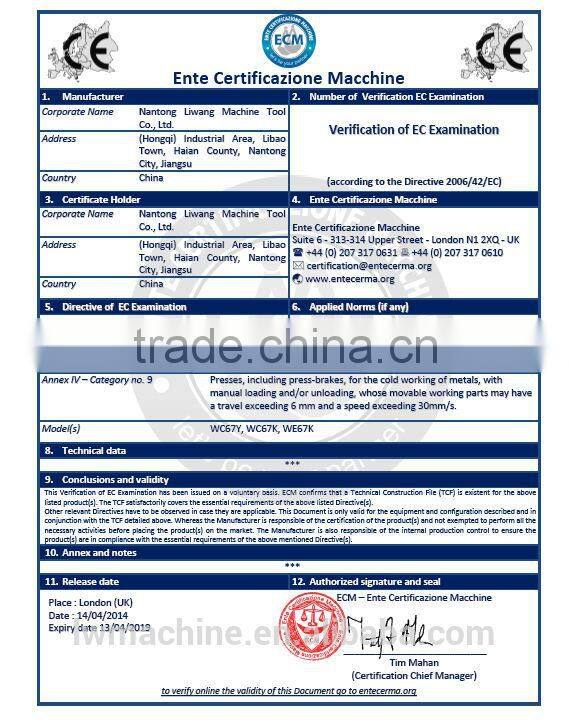

CE certificate
(1)Spare parts:common tool with wear parts

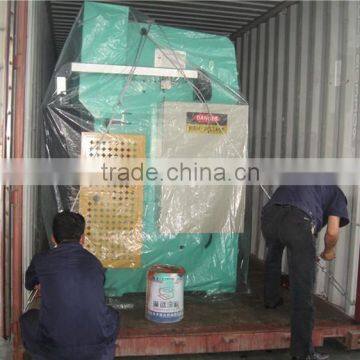

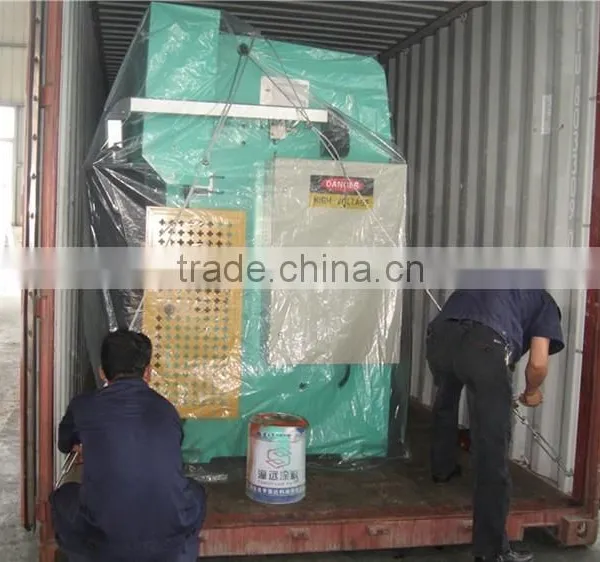

(2)Shippment:Nominal package:20GP, 40GP,40HQ,40OT
(3)Delivery time:15-30days
(4)Payment terms:TT,30% in advance, the balance before shipment
(5)CE certificate
Skype: ntxwxtt Tel:0086-13584719466
