CNC bending press brake
- 60 Set / Sets per Month
- shanghai
- T/T
- 10mm hot press brake bending machine for brake pad
- Custom bending press brake and shearing machine
- Square steel tube press brake machine for making gutters
- CNC hydraulic press brake steel bar cutting and bending machine
- Crank type bending machine heavy duty press brake 125t 3200
- 6 axes cnc press brake machine hydraulic for making gutters ceramic
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | LIWANG |
Model Number: | WE67K-100/3200 | Machine Type: | Press Brake | Raw Material: | Sheet / Plate Rolling |
Material / Metal Processed: | Carbon Steel | Power: | Hydraulic | Automation: | Automatic |
Extra Services: | End Forming | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

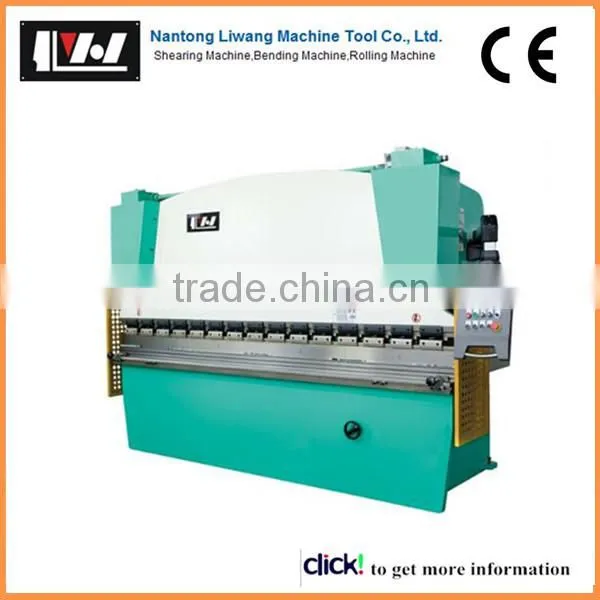

CNC bending press brake
Nantong liwang press brake company develops and produces press brake machines with a reputation for superior quality and dependable services. The product lines contain CNC hydraulic press brake, NC hydraulic press brakes. To fulfill the goal of producing high quality press brakes applied to machine tools at resonable prices, the company employs the experienced staff of engineers conducting research and development in new areas of press brake machine, as well as ongoing improvement programs for current hydraulic press brakes. Yeh Chiun has ISO-9001 quality assurance system certified also certified with CE machinery directiveand EMC compliance. we can satisfy customer's requirements. Click images below to learn more details and specifications or contact us for more information.
European Delem DA-52S controller offers multilanguage selection. It's easy operation by directly inputting angles or sizes of axes while programming. According to different request, controlled axes vary from 2 to 5 axes.
- 6.4" color LCD display. (TFT)
- 266 MHz processor, memory capacity 64MB.
- Tooling database: punches for 30 sets, dies for 30 sets.
- Standard Windows functions. User specific applications support.
- USB keyboard, mouse and flash memory drive.
- Precision ball screw lead, linear slide way and AC servo motor for X axis.
- Bearing-type guideway system.
- Angle position controlled by AC servo motor. (for 2 or 3 axes)
- German HOERBIGER hydraulic circuit. (for 4 axes and above)
- Equipped with European optical scales. (for 4 axes and above)
- Alphanumeric product naming.
- Millimetres/Inches, KN/Ton and languages selection.
- Number of steps up to 25. Step repeat up to 99 (maximum).
- Programmable tooling, products and material properties.
- Computed functions include tooling safety zones, press force, crowning adjustment, speed-change point and etc. (Differ from various axes.)
- Store tooling & workpiece data via USB interface.
- There are two modes: angle-input mode, depthinput mode.
- Diagnostic program Both sides angles can be adjusted independently. (for 4 axes and above)
Detail pictures
certificate;
How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost.
