Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > J21 Series General Open Back Fixed Table Mechanical Power Press

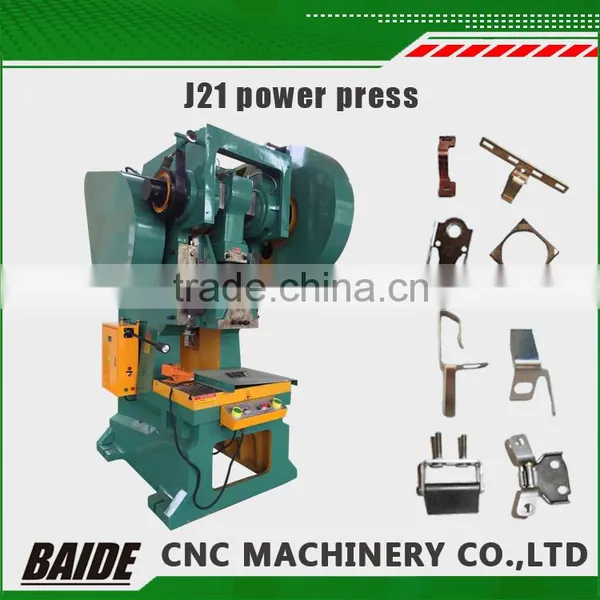

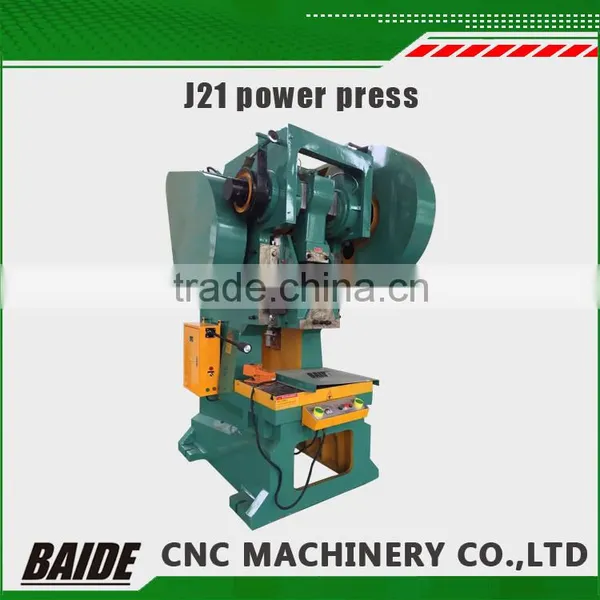

J21 Series General Open Back Fixed Table Mechanical Power Press
US$ 1,000 - 8,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
J23 Series Power Press, General Open Back Press With Fixed BedUS$ 1,000 - 2,000MOQ: 1 Piece -
J21S Deep Throat Power Press, Eccentric Mechanical Power Press Machine/mechanical Press Quality ChoiceUS$ 1,000 - 5,000MOQ: 1 Piece
-
JH21 Pneumatic Power Press/JH21 C Frame Single Crank Power PressUS$ 1,000 - 50,000MOQ: 1 Piece
-
High Quality Mechanical Blanking Press MachineNegotiableMOQ: 1 Set
-
New Condition and Normal Drawing Stamping MachineNegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Power Source
Mechanical
Place of Origin
Anhui, China
Brand Name
BAIDE
Model Number
J21
Voltage
380V/220V Optional
Power(W)
7.5KW
Weight
4000KG
Dimension(L*W*H)
1600X1300X2600MM
Certification
CE ISO SGS
Warranty
2 Years
After-sales Service Provided
Engineers available to service machinery overseas
Main parameters (Optional)
|
J21-80T |
|
1 |
Nominal force |
800KN |
2 |
Stroke under nominal force |
5mm |
3 |
Ram stroke |
115mm |
4 |
Stroke time |
45times/min |
5 |
Max. mould height |
410mm |
6 |
Mould height adjustment |
60mm |
7 |
Distance from stroke surface to table |
280mm |
8 |
Working table dimension |
500*750mm |
9 |
Bore size on the table |
100*60mm |
10 |
Thickness of working table |
90mm |
11 |
Distance between columns |
360mm |
12 |
Motor power |
7.5KW |
13 |
Dimension |
1600 x 1300 x 2600mm |
14 |
Net weight |
4000kg |
