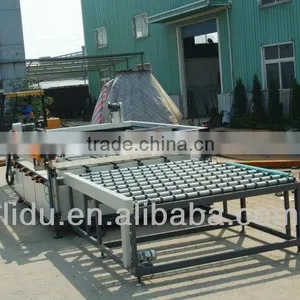

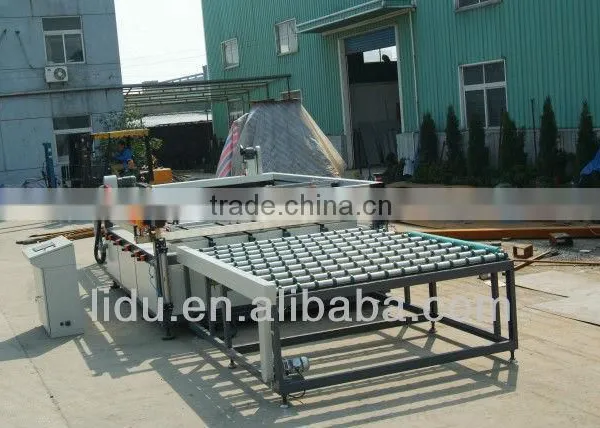

CE glass screen print machine for bathing appliance glass
- 100 Set / Sets per Month
- Shanghai/Ningbo
- T/T
Product Details
Condition: | New | Place of Origin: | Zhejiang, China | Brand Name: | LIDU |
Model Number: | LDSZ2613 | Usage: | Other, glass printer | Automatic Grade: | Automatic |
Voltage: | 380V | Gross Power: | 12.5kw | Dimensions(L*W*H): | 8220*2100*1300mm |
Weight: | 4.6t | Certification: | CE ISO, ISO9001:2000 | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
glass screen print machine1.reasonable structure
2.aotomatic positioning glass
3.easy operation
4.reliable performance
CE glass screen print machine for Bathing Appliance glass
General introduction of CE glass screen print machine for bathing appliance glass
Screen printing machine is a machine use printing technique to make colorful glass. It is widely used in decorative glass, architectural glass, furniture glass, appliance glass etc.
-------------------------------------------------------------------------------------------------------
Working Principle of CE glass screen print machine for bathing appliance glass
Screen printing machine uses a woven mesh to support an ink-blocking stencil to receive a desired image. The attached stencil forms open areas of mesh that transfer ink or other printable materials which can be pressed through the mesh as a sharp-edged image onto a substrate. A fill blade or squeegee is moved across the screen stencil, forcing or pumping ink into the mesh openings for transfer by capillary action during the squeegee stroke. Basically, it is the process of using a stencil to apply ink onto another material such as glass, ceramics, paper etc that can keep the image onto its surface.
-------------------------------------------------------------------------------------------------------
Technical parameters of CE glass screen print machine for bathing appliance glass :
Model | Max.Glass Size(mm) | Min.Glass Size(mm) | Max.Screen Size(mm) | Printing Table Size(mm) | Glass Thickness (mm) | Power (kw) | Weight (T) | Machine Size(mm) |
LDSZ2012 | 2000×1200 | 600×500 | 2800×1600 | 2450×1550 | 2.5-19 | 10 | 3.5 | 7200×2500×1300 |
LDSZ2519 | 2500×1900 | 700×500 | 3280×1800 | 3050×1600 | 2.5-19 | 12 | 4.3 | 8000×2500×1300 |
LDSZ2613 | 2600×1300 | 700×500 | 3380×1900 | 3050×1650 | 2.5-19 | 12.5 | 4.6 | 8220×2500×1300 |
LDSZ2617 | 2600×1700 | 700×500 | 3380×2300 | 3050×2050 | 2.5-19 | 12.5 | 5.1 | 9420×2500×1300 |
LDSZ3020 | 3000×2000 | 800×600 | 3780×2600 | 3450×2350 | 3-19 | 13.2 | 6.1 | 10620×2800×1300 |
LDSZ3725 | 3700×2500 | 1000×700 | 4380×3000 | 4050×2750 | 3-19 | 15.2 | 7.3 | 12420×3200×1300 |
LDSZ4525 | 4500×2500 | 1200×900 | 5280×3000 | 4950×2750 | 3-19 | 18.5 | 8.2 | 15120×3200×1300 |

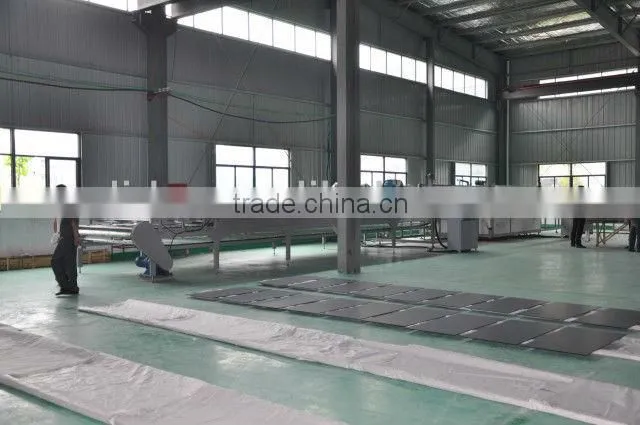

Final product of CE glass screen print machine for bathing appliance glass
OUR SERVICE
Your inquiry related to our product & price will be replied within 24hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Working time: 9:00am - 6:00pm, Monday to Friday (UTC+8).
OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
Your business relationship with us will be confidential to any third party.
Good after-sale service offered, please get back if you got question.
For more details, please feel free to contact us. We will be more than happy to help in anyway we can.
Why choose us
1. We’re manufacturer, which have specialized in the line for many years.
2. We could pick you up to visit our factory,
3. Best after-sale service.
4. Competitive price, high quality and quick delivery for long business.
