Ion Exchange Furnace chemical tempering furnace
Brief introduction of Ion exchange Furnace chemical tempering furnace:
According to the plasma diffusion theory, the furnace improves glass surface composition, letting glass surface to form pressure. Its main characteristics of the processed glass are: high strength, good thermal stability, smooth surface, no deformation, no explosion, simple operation, high yield rate, especially suitable for all kinds of ultra-thin tempered glass and bent glass.
Main features of Ion exchange furnace chemical tempering furnace:
- Double working table, could working continuously.
- PLC control system.
- Has CE certificate
- Could make fast train glass and fireproof glass.
Main function of Ion exchange furnace chemical tempering furnace:
1. Electronic products glass: touch screen in mobile phone, computer screen, computer touch conductive glass, ultra-thin TV sets, view-finder glass ion glass.
2. Home appliance glass: scanner glass, duplicating machine glass, ultra-thin cupboard glass, washing machine view-finder glass, plasma TV glass.
3. Optical glass: ultra-photoperme ability glass, ultra-toughened glass, ultra-smooth glass, ultra-thin tempering glass, watches glass, precision instrument lens.
Main technical parameters of Ion exchange furnace chemical tempering furnace:
Model |
LDH1010 |
LDH2512 |
Max glass size |
1000*1000mm |
2500*1200mm |
Glass thickness |
0.5-12mm |
0.5-12mm |
Chemical reaction tank size |
1100mm(L)*800(W)*1100(W) |
2600mm(L)*800(W)*1300(W) |
Basket size |
1000mm(L)*800(W)*1000(W) |
2500mm(L)*800(W)*1200(W) |
Machine size |
8m(L)*2.5m(W)*3m(H) |
8m(L)*2.5m(W)*3m(H) |
Capacity |
4-16 batch/h |
4-16 batch/h |
Total power |
100Kw |
225Kw |

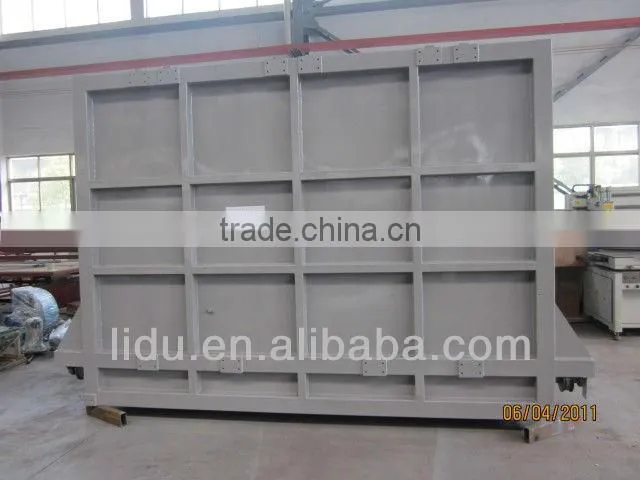

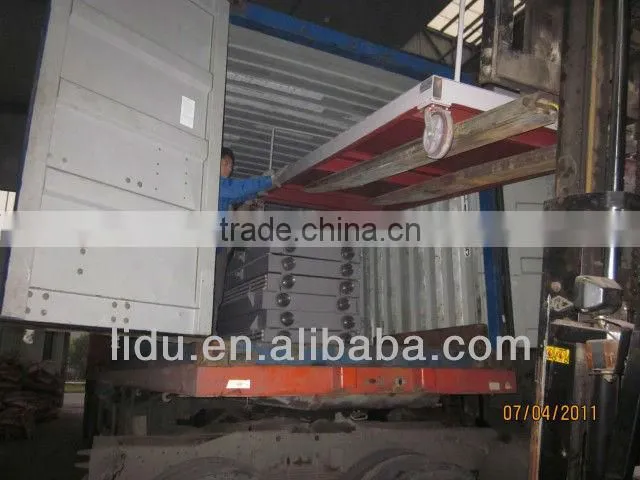

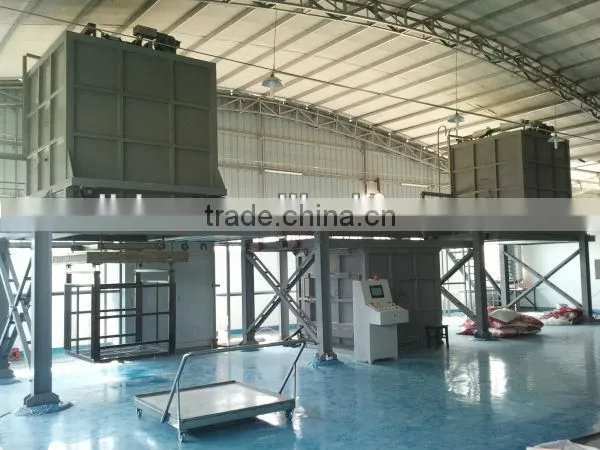

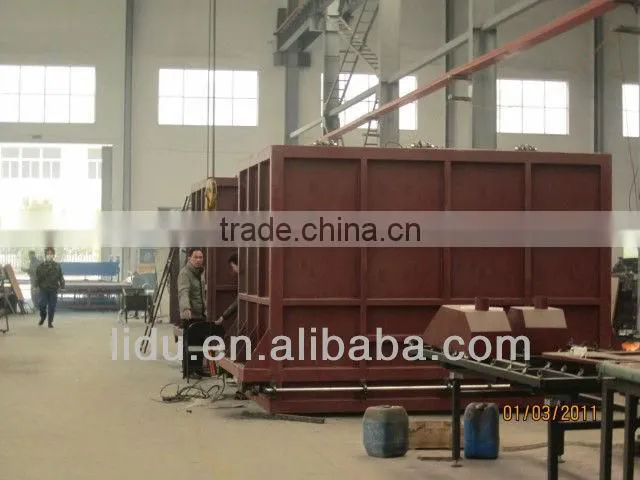

Delivry site of Ion exchange furnace chemical tempering furnace:
Final products of Ion exchange furnace chemical tempering furnace--LCD glass:
Final products of Ion exchange furnace chemical tempering furnace--firepoof glass:
Testing report of firepoof glass from Korea:
Final products of Ion exchange furnace chemical tempering furnace--mobile glass:
