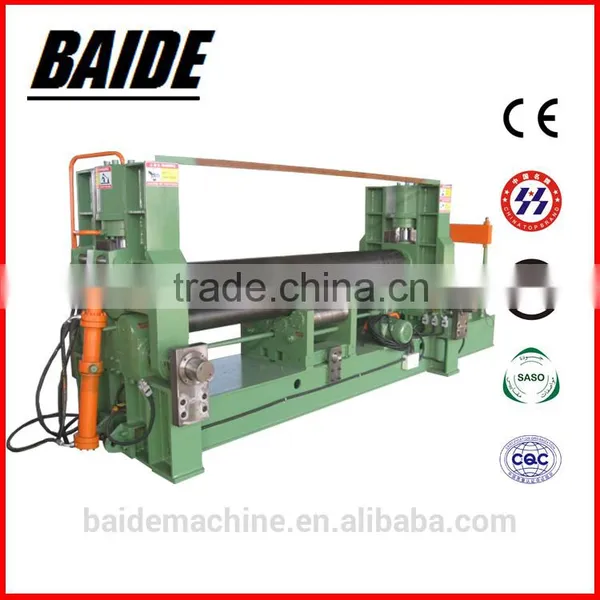

The machine is symmetrical 3 roller plate bending machine, which can rolling Low carbon steel,
Low alloy steel plate into Cylindrical shape; The upper roller can be vertically go up and down and
the lower roller drived by motor and reducer while they working, it’s easy to operating and feeding.
W11 Symmetrical 3 Roller plate Bending Machines is widely used in Boiler, shipbuilding,
Petrochemical Industry, Cement and so on . It’s very popular due to its’ compact structure, easy operation.
2. Main parameter
Specification |
Units |
W11S-6*2000 |
Type |
|
Symmetrical (3 Roller) |
Brand |
|
Baide |
Upper roller adding pressure |
T |
30 |
Max width of plate |
mm |
2000 |
The length of working rolls |
mm |
2100 |
Max.roll plate thickness: |
mm |
6 (For ST-52 is about 4) |
Min diameter can be rolled |
mm |
300 |
Minimum thickness of plate |
mm |
1 |
Yield limit |
Mpa |
245 |
Uper roller diameter |
mm |
Φ195 |
Lower roller diameter |
mm |
Φ125 |
Distance between two lower rollers |
mm |
160 |
Full load minimum diameter |
mm |
260 |
Rolling speed |
m/min |
≈ 4 |
Main motor |
Kw |
3 |
Hydraulic motor |
kw |
2.2 |
Moving motor |
Kw |
0.75 |

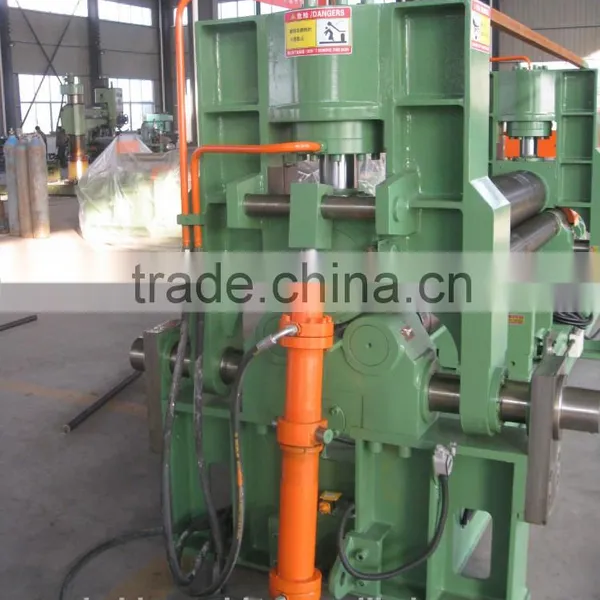

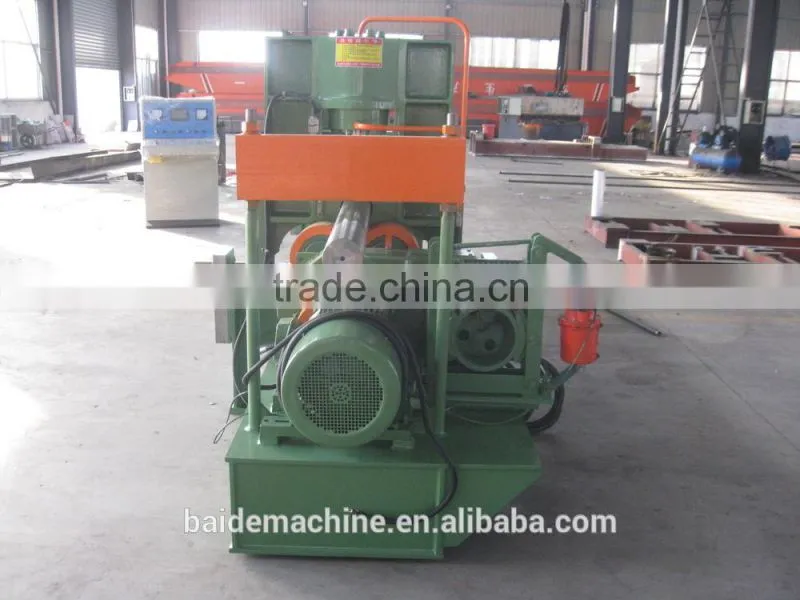

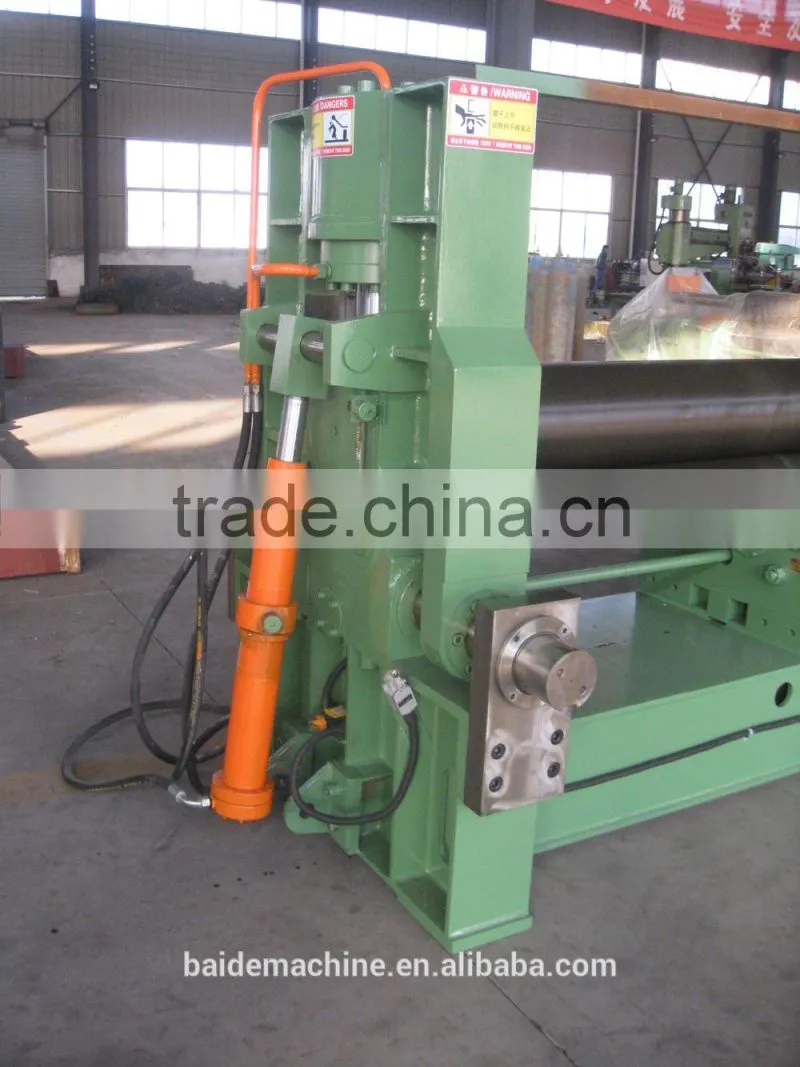

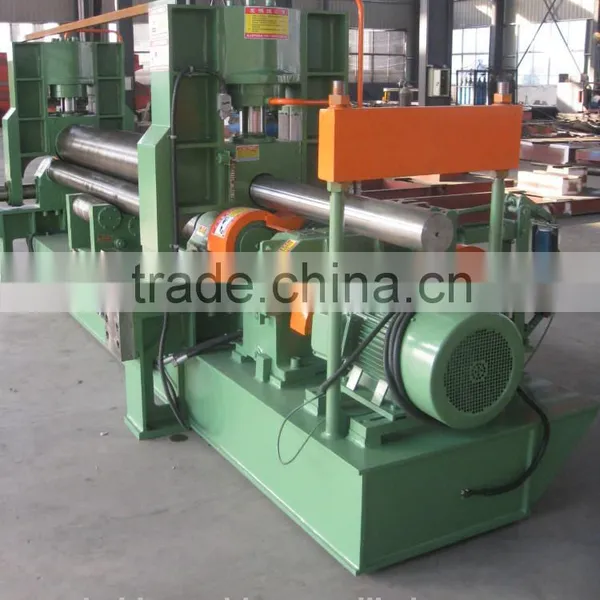

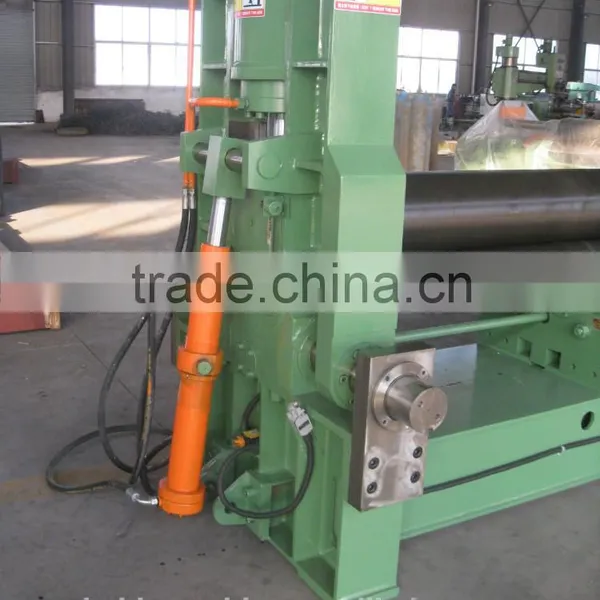

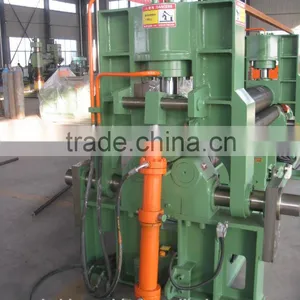

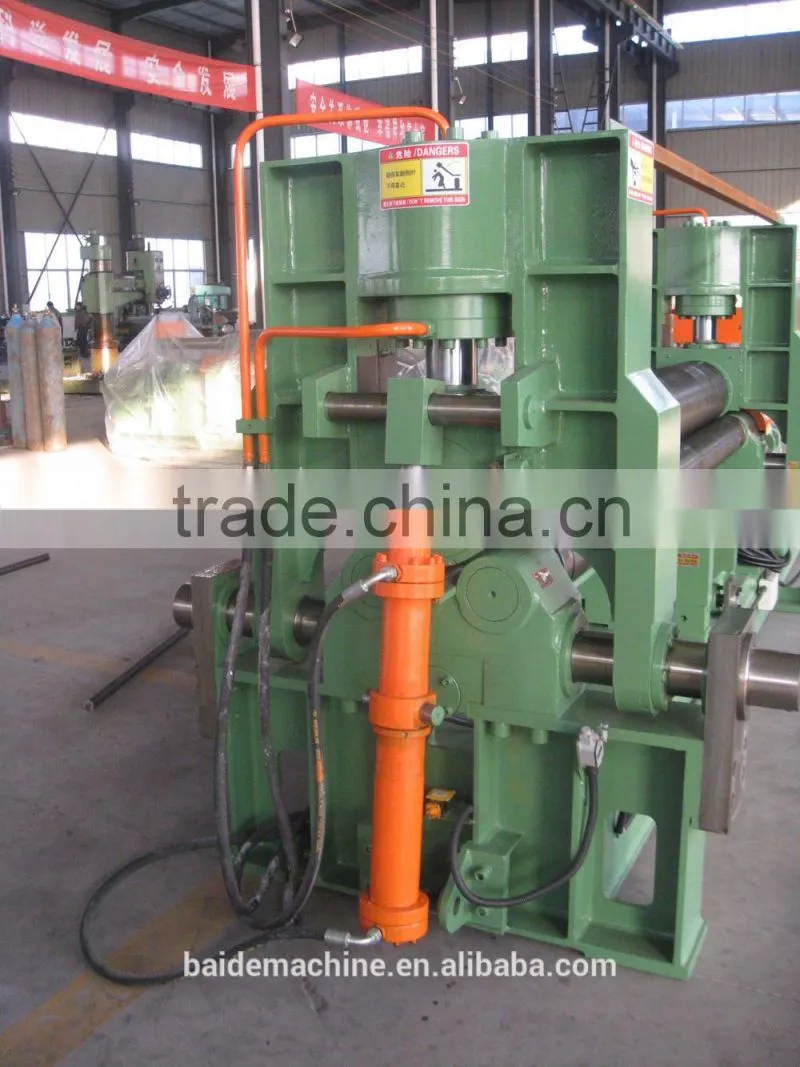

3.Detailed shot photos:

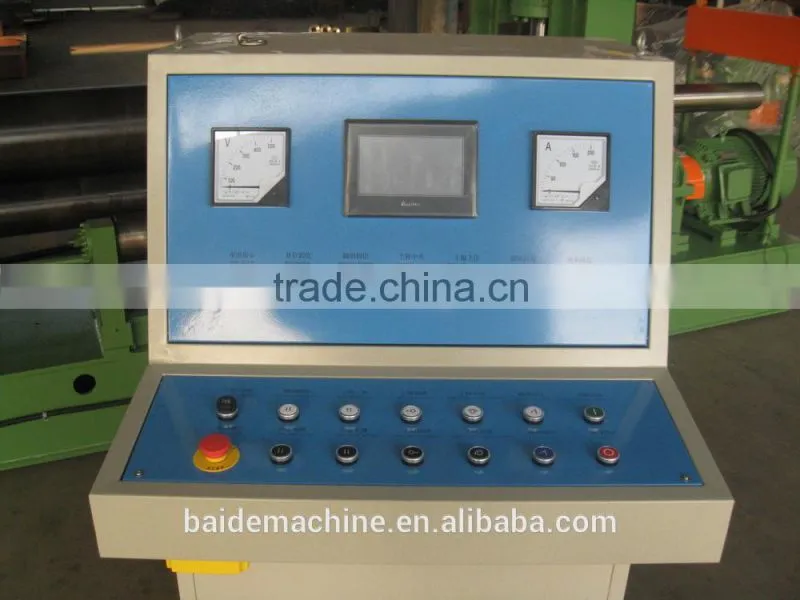

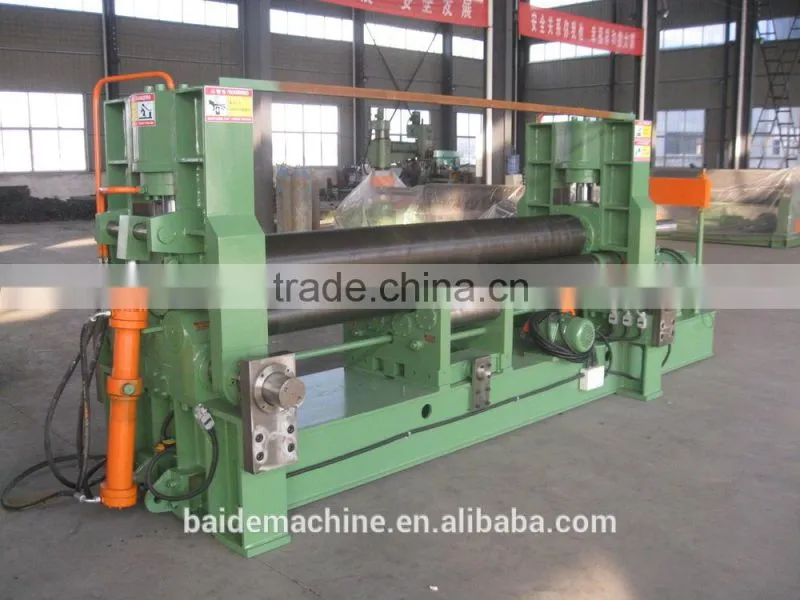

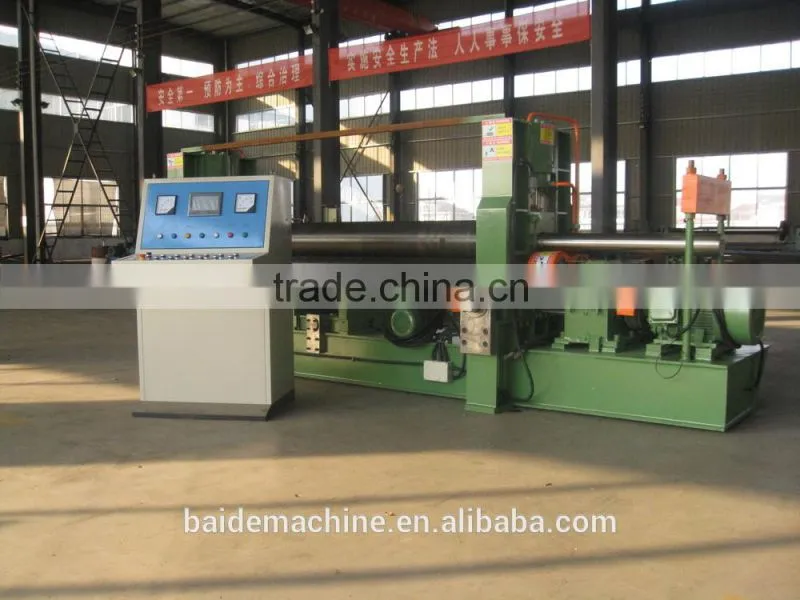

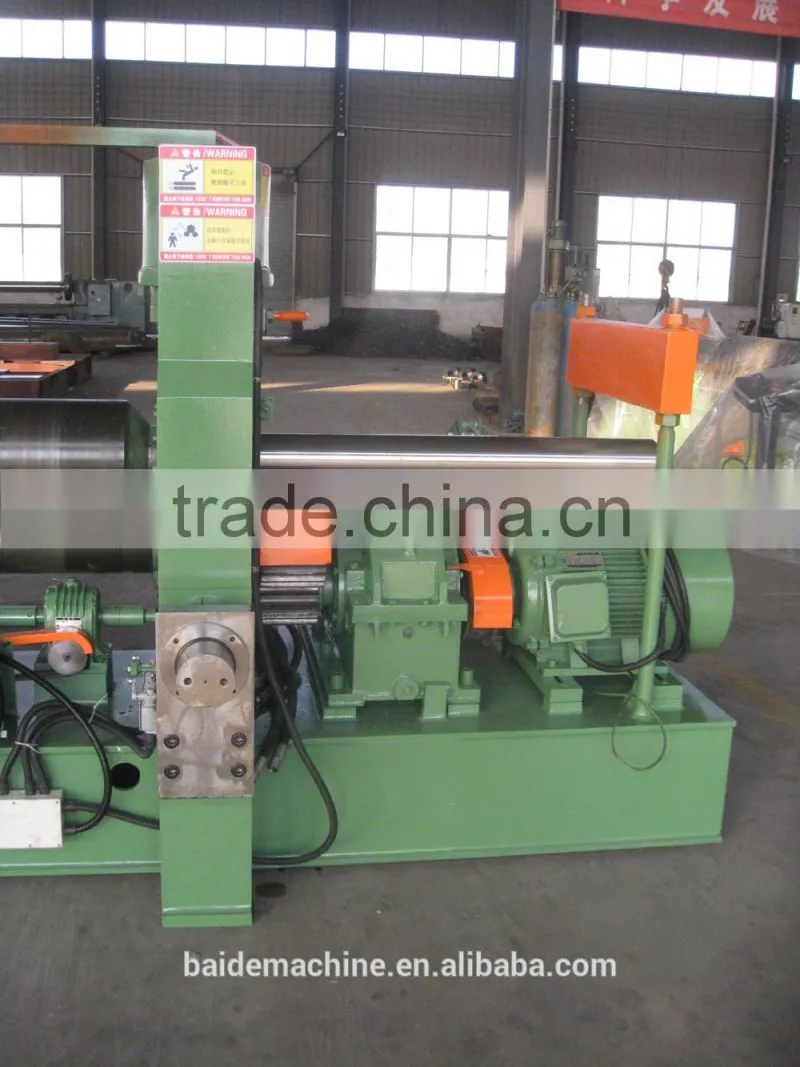

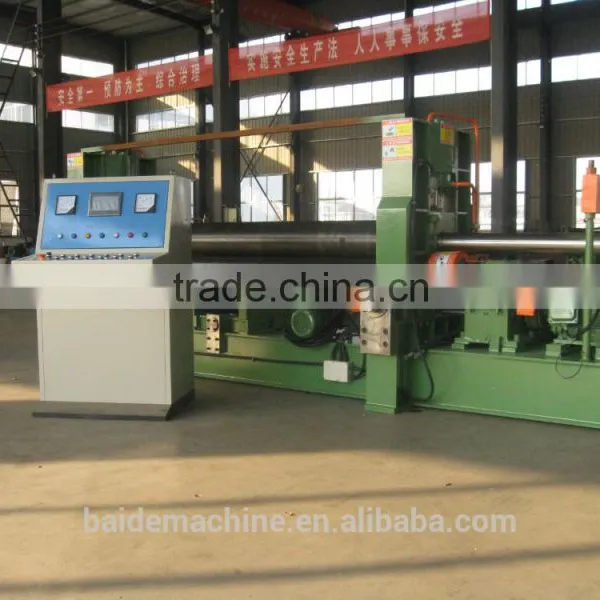

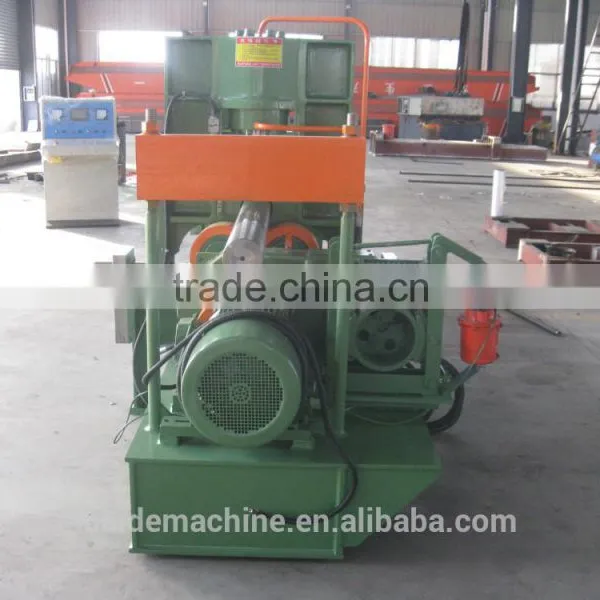

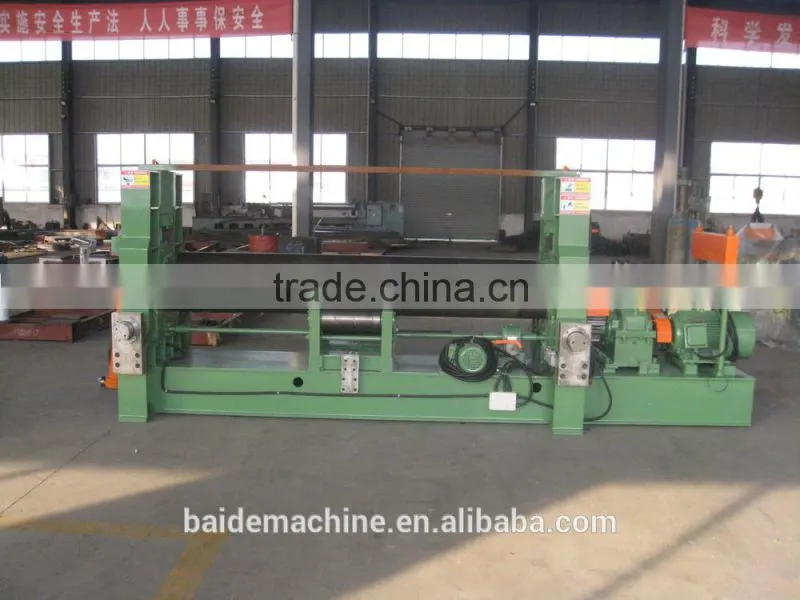

Appearance

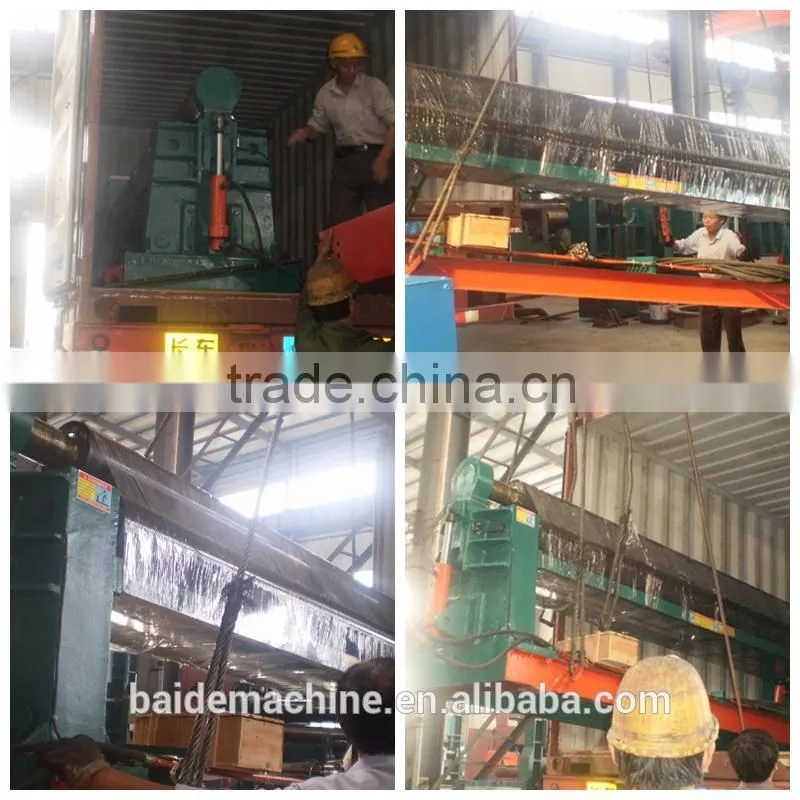

Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit.
Our Services
Pre-Sale Services
- Recommond suitable pattern of equipment based on customer's requirements
- Provide detailed specifications and photos of the machines
- Develop practical solutions according to actual production status
- Facotry visiting is welcomed and arranged carefully
In-Sale Services
- Strict quality control to ensure the machines get high-quality and high-accuracily
- Provide all set of necessary documents
- Inform the production schedule, shipping time, arrival date on time
- Assist client for other issues
After-Sale Services
- Technical engineers are available for installation debugging and training
- Provide life-long services for any technical questions
- 12-month quality warranty frees you from worries
- Sound tracking service system gives you happy shopping and users experience
Factory:
Foreign visitor:
Process:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
