Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-1
Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-2
Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-3

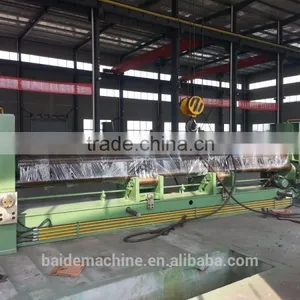

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-4
Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-5
Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine thumbnail-6
Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-1

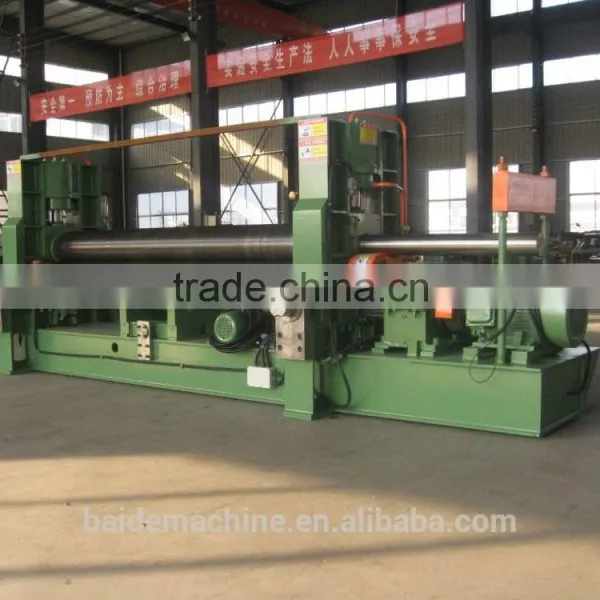

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-2

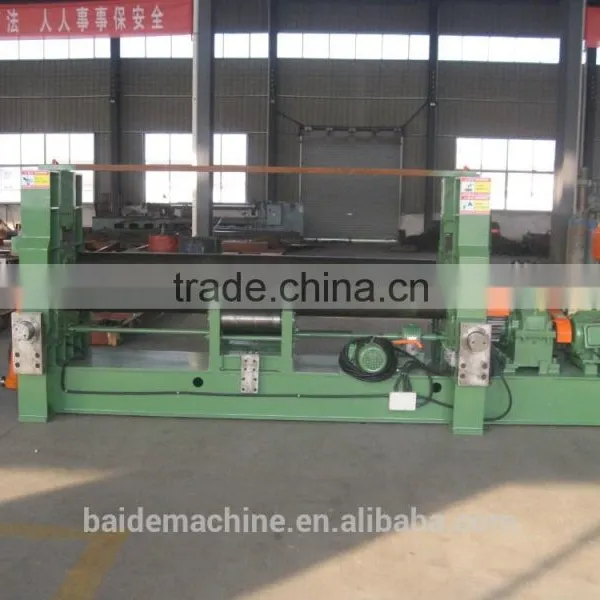

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-3

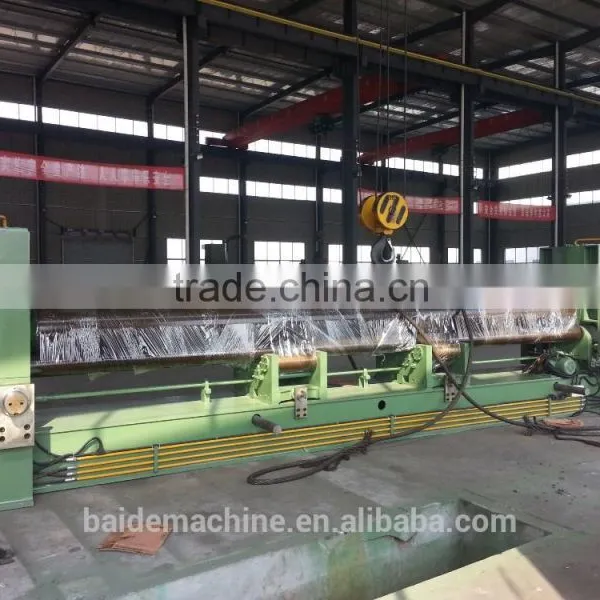

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-4

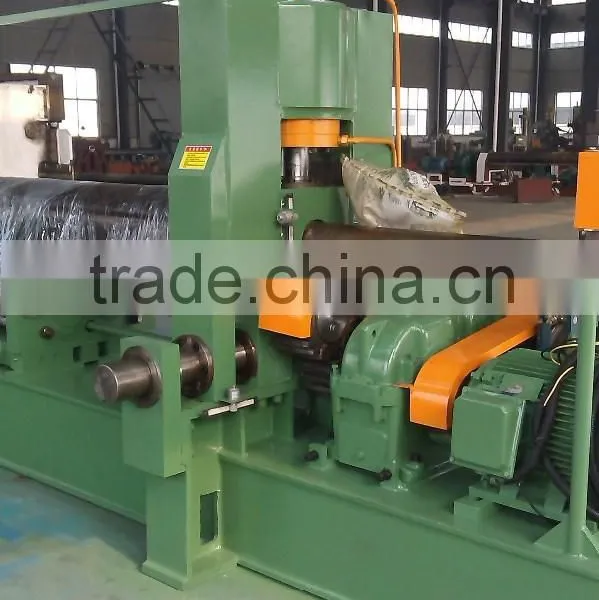

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-5

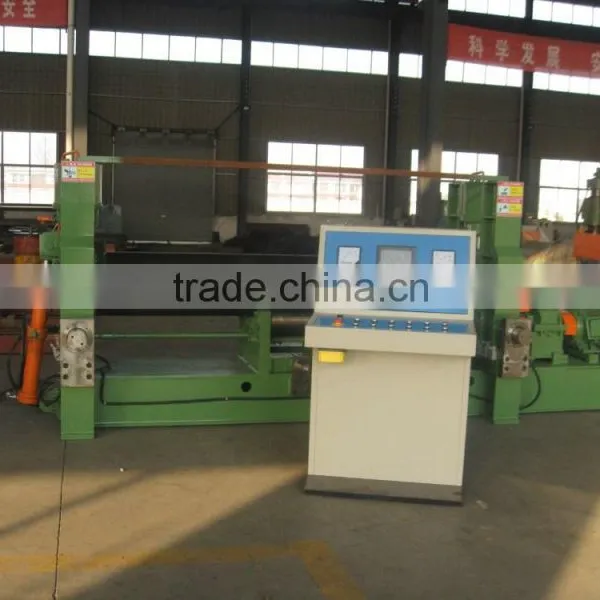

Baide W11S-10*3000 Hydraulic Rolling Machine, Plate Bending Machine, 3 Roller Bending Machine photo-6
US$ 13,800 - 15,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Baide
Contact Supplier Request Quote Chat Now
Maanshan Baide CNC Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name Baide
Model Number W11S
Machine Type Roller-Bending Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Carbon Steel
Power Other, electrical motor
Automation Automatic
Extra Services Other, pre-bending & cone-shaping
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

1>. Generaly introduction

The machine is symmetrical 3 roll plate bending machine, which can rolling Low carbon steel,

 Low alloy steel plate into Cylindrical shape; The upper roller can be vertically go up and down

and the lower roller drived by motor and reducer  while they working. W11 Symmetrical3 Roll

plate Bending Machines is widely used in Boiler, shipbuilding, Petrochemical Industry, Cement etc.

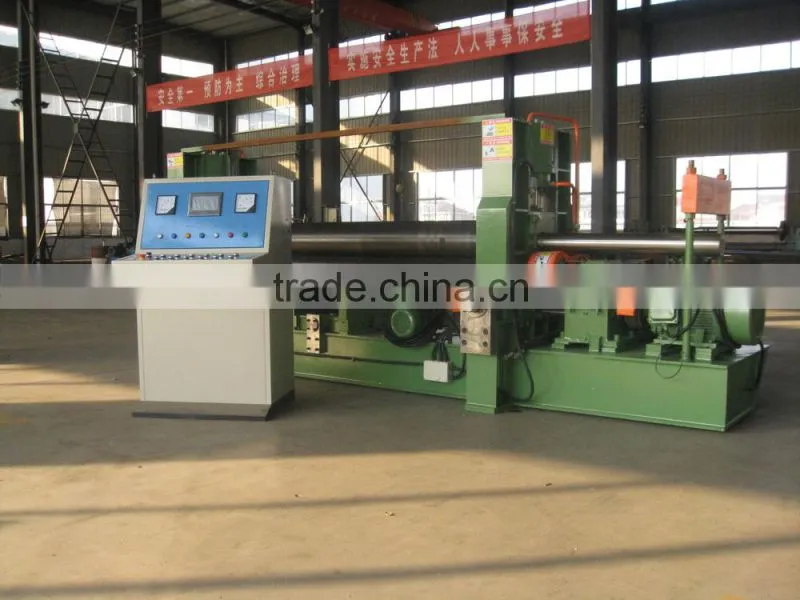

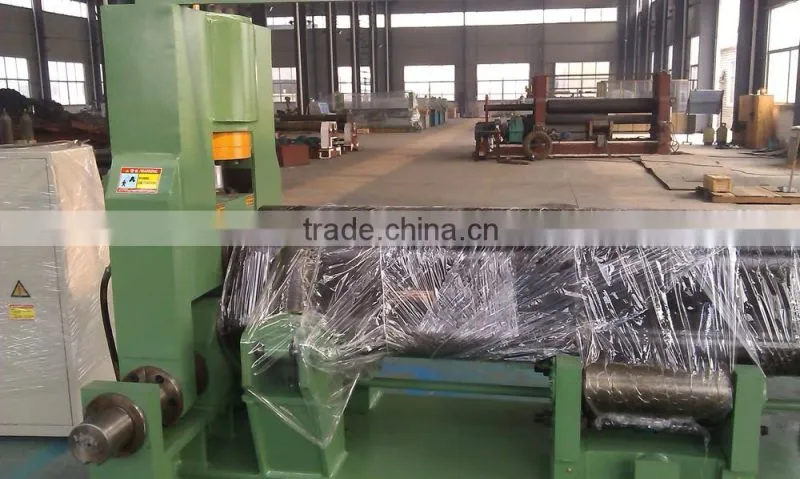

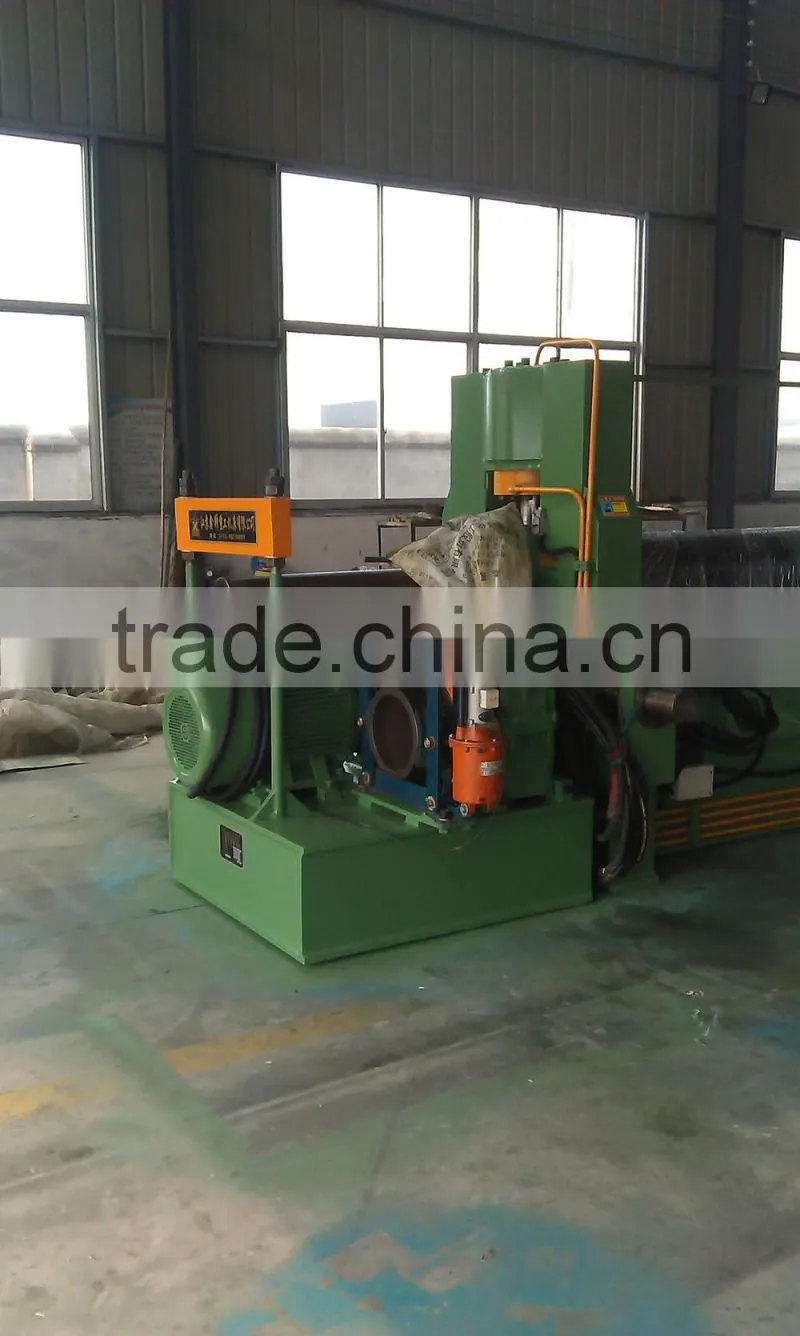

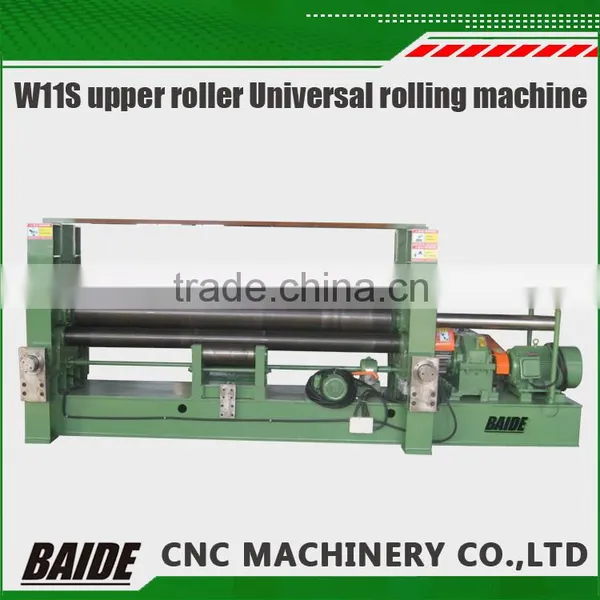

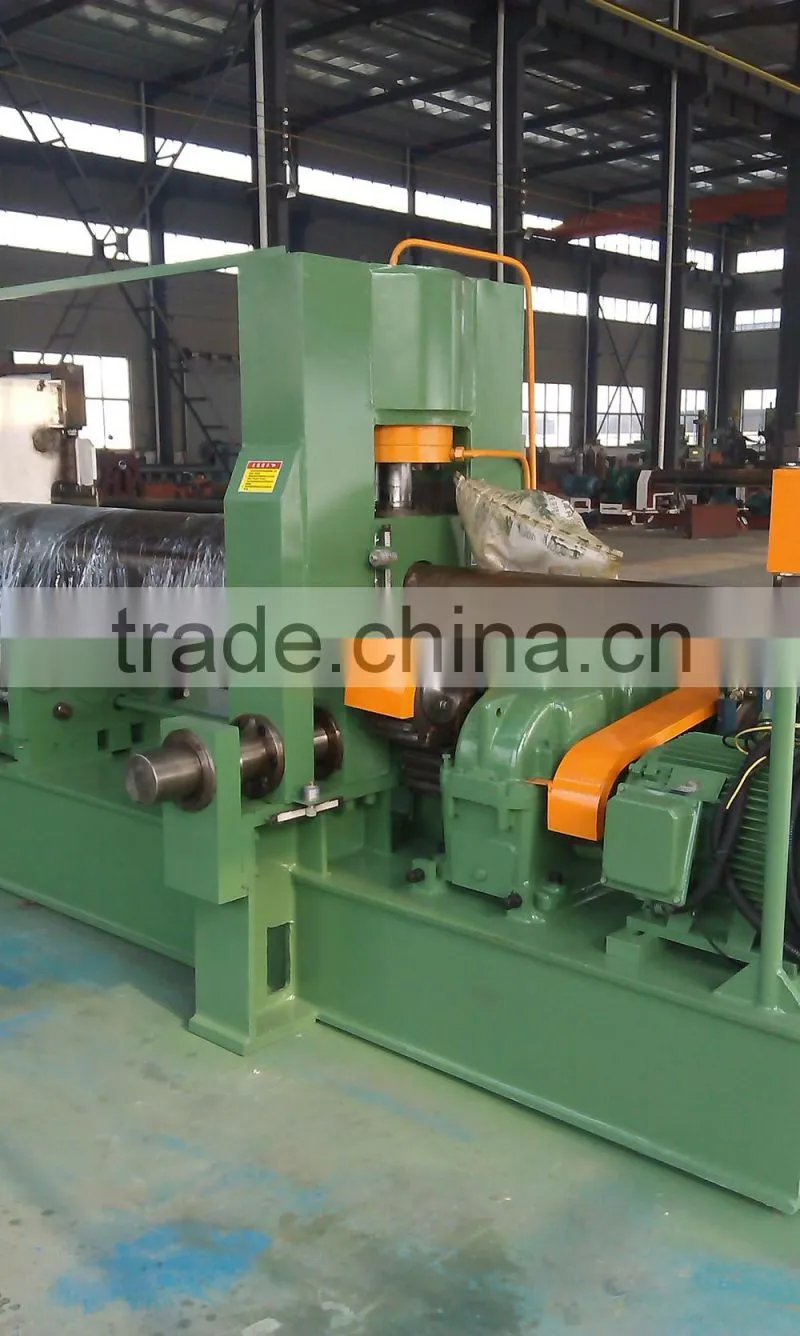

Baide W11S-10*3000 Hydraulic rolling machine, plate bending machine, 3 roller bending machineBaide W11S-10*3000 Hydraulic rolling machine, plate bending machine, 3 roller bending machineBaide W11S-10*3000 Hydraulic rolling machine, plate bending machine, 3 roller bending machineBaide W11S-10*3000 Hydraulic rolling machine, plate bending machine, 3 roller bending machine



2>. Main parameter

Specification

Units

W11S-10×3000

Type

W11

Symmetrical

Brand



 Baide

Max width of plate

mm

2000

The length of working rolls

mm

2050

Max.roll plate thickness:

mm

6

Minimum thickness of plate

mm

1

Yield limit

Mpa

245

Uper roller diameter

mm

Φ170

Lower roller diameter

mm

Φ160

Distance between two lower rollers

mm

250

Full load minimum diameter

mm

260

Rolling speed

m/min

≈ 4

Main motor

Kw

5.5

Jacking motor

Kw

1.5





3>. Major accessories and Place of Origin

Project

Material & Type

Manufacturer

Bearing



Wafangdian(China famous brand)

Upper roller

45#

Nangong(China famous brand)

Lower roller

45#

Frame

Welding

Baide

Chassis

Welding

Baide

Motor



Nantong

reducer

Needle wheel speed reducer

Changzhou

Electrical components



SIEMENS, Schneider



4>. Main structure and work theory

4.1,This is symmetric type plate bending machine, on through the roller press and the upper

 and lower roller to roll to finish rolling cylindrical workpiece.

This machine is made in the welding of the whole chassis parts and transmission parts of

the two most.Part of the work is left and right roller bearing seat, on a roll, two bottom

rollers (three root roller material of 45 # heat treatment), lifting screw worm gear pair and

some auxiliary parts.On the roller is the main drive roller, roller is the passive roller, roller

can adjust up and down along the height direction.Transmission part by main motor, main

reducer and other auxiliary parts.

Down roller transmission is through the main reducer by main motor, main reducer output

shaft through a set of gear transmission to the two bottom rollers, roller turn in the direction

of transformation by main motor commutator.

Upper roller on the realization of the lifting movement, is through assisted by auxiliary motor

reducer drive the left and right roller bearing the worm and worm wheel mechanism motion,

make the mother on the worm gear with silk spinning, so that the lifting screw rod moves up

 and down.

Plate unloader is used when the cylinder after the completion of the rolled piece, designed to

remove the artifacts.Before discharge, roll up first in place, at the end of a roll with roller

alancing device blocking, then tilting pin on the bearing seat, overturned tilting bearing,

rolling can complete artifacts from one end of the roll out.



5>. Working conditions

This machine applies to the following Workshop

1. Ambient humidity: - 10 ~  + 40 °C

(Fuel tank temperature shall not be lower than + 10°C)

2. Relative humidity:≤ 80% (± 25°C)

3. Power:Three phase 380V ±  10%  50Hz

4. This machine is in line with environmental law, the noise limit is in conformity

   with JB9969-1999 standard



6>. Documentation provided for delivery

1. Foundation drawing

2. Electrical diagram

3. Operating instruction

4. Qualified  Certificate

5. Packing list
