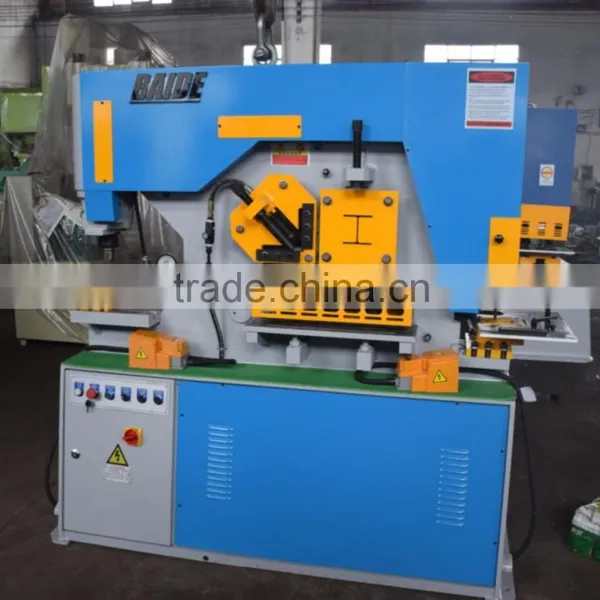

Q35Y multi-function hydraulic punching,shearing.notching,bending machine iron workers machine
The features of iron worker machine
Function of Ironworker Machine Combined Bending. Shearing, Punching, Notching Functions (Q35Y)
1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.
2. Shearing Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make
a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending can also bend the plate below 500mm.
Main Technical parameters:
Model |
Unit |
Q35Y-12A |
Q35Y-16A |
Q35Y-20A |
Q35Y-25A |
Q35Y-30A |
|
Punching pressure |
Kn |
600 |
500 |
800 |
1000 |
1250 |
|
Punching size |
mm |
25×12 |
24×16 |
30×20 |
32×25 |
35×30 |
|
Throat depth |
mm |
115 |
240 |
355 |
355 |
355 |
|
Maximum stroke |
mm |
35 |
60 |
80 |
80 |
100 |
|
Punching times |
|
9 |
9-18 |
9-18 |
9-18 |
8-16 |
|
|
shearing
|
Angle steel 90.shearing |
mm |
100×10×8 |
100×100×10 |
160×160×14 |
180×180×16 |
200×200×18 |
Angle steel 45.shearing |
mm |
|
60×60×6 |
80×80×8 |
100×100×10 |
120×120×12 |
|
Flat steel |
mm |
300×12 |
150×16 |
330×20 |
330×25 |
330×30 |
|
|
400×4 |
480×10 |
480×12 |
480×16 |
|||
Square steel |
mm |
30×30 |
35×35 |
50×50 |
55×55 |
70×70 |
|
Round steel |
mm |
φ35 |
φ38 |
φ50 |
φ55 |
φ60 |
|
Channel steel |
|
10# |
12# |
16# |
20# |
22# |
|
I steel |
|
10# |
12# |
16# |
20# |
22# |
|
|
mm |
80×50×10 |
80×40×8 |
100×50×13 |
100×60×14 |
100×80×16 |
|
Motor power |
Kw |
4 |
4 |
5.5 |
7.5 |
11 |
|
weight |
Kg |
900 |
1500 |
1900 |
2400 |
3050 |
|
Main electric appliance |
1set |
Schneider |
Hydraulic part |
1set |
Taiwan HNC |
Sealing |
1set |
NOK |
Main motor |
1set |
Siemens Beide |
Hydraulic pump |
1set |
Taiwan HYDROMAX |
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer)
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients
packaging with plastic film
packaging with wooden case
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
customer visit
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11 year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
Contact detailes
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
