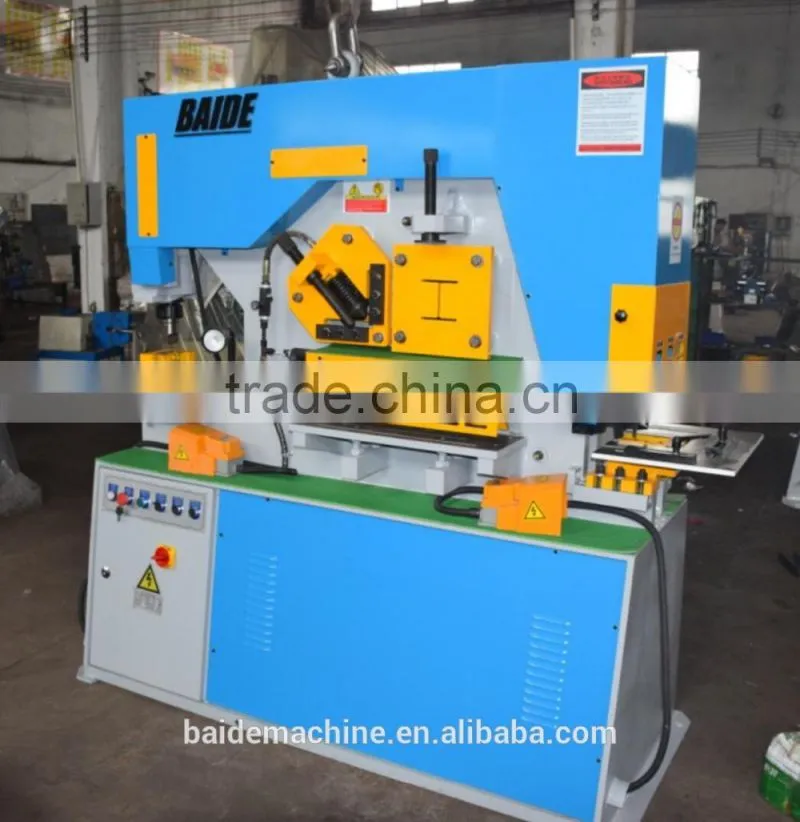

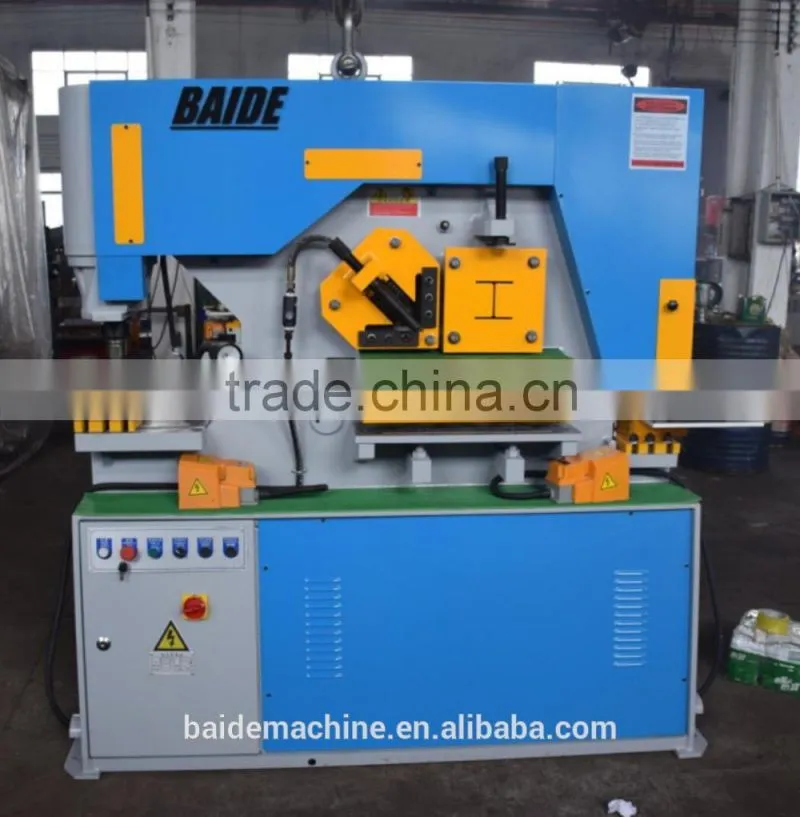

Help CenterQ35Y-- Hydraulic Ironworkers for Punching and Shearing
Related Products
-
Q35Y Hydraulic Iron Worker ,stainless Steel Plate Cutting Machine ,stainless Steel Plate Punching Machine 100tonUS$ 1,000 - 50,000MOQ: 1 Set -
Q35Y Hydraulic Plate Shearing Machine,angle Steel Cutting Machine,plate Punching Machine 100tonUS$ 1,000 - 50,000MOQ: 1 Set
-
Q35Y Hydraulic Ironwork,sheet Metal Cutting Machine ,sheet Metal Notching Machine ,sheet Metal Punching Machine With Best PriceUS$ 1,000 - 50,000MOQ: 1 Set
-
Q35Y Hydraulic Flat Bar Shearing Machine,plate Cutting Machine,plate Punching MachineUS$ 1,000 - 50,000MOQ: 1 Set
-
Hydraulic I Beam Shearing Machine,channel Steel Cutting Machine ,hydraulic IronworkerUS$ 1,000 - 50,000MOQ: 1 Set
The features of iron worker machine
1. Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation. Large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

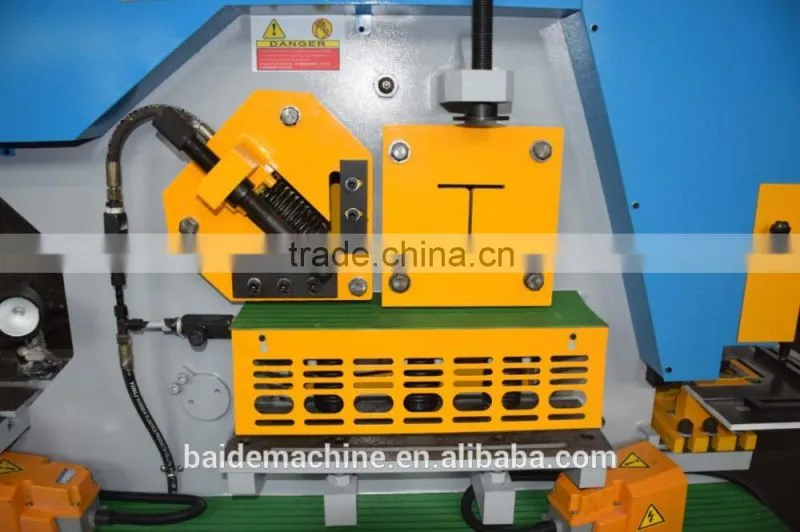

2. Shearing Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety.The angle shear has the ability to cut angle at 45° Both top and bottom leg. This gives the operator the ability to make
a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity.
3. Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
4. Bending can also bend the plate below 500mm.
Main Technical parameters:
| Model | Q35Y-20 |
| Pressure(Ton) | 90 |
| Max cutting thickness | 20 |
| Plate strenghth(N/mm2) | </=450 |
| One stroke cutting size(D*W) (mm) | 20*330 |
| 10*480 | |
| Slide stroke | 80 |
| Stroke times(beats/min) | 12 |
| Throat depth(mm) | 355 |
| punching thickness(mm) | 20 |
| Max punching diameter(mm) | 30 |
| Mainmotor power(kw) | 5.5 |
| Dimension(mm) | 1860*800*1990 |
| Weight(kg) | 2000 |
Profile for cutting
| Q35Y-30 | |
| Profile type | size |
| round steel | 50mm |
| sqaure steel | 50*50mm |
| Equilateral angle | 140*140*12mm |
| 50*50*5mm | |
| T section | 140*140*12mm |
| 70*70*10mm | |
| H steel | 160*86*6mm |
| Channel steel | 160*60*6.5mm |
Main electric appliance |
1set |
Schneider |
Hydraulic part |
1set |
Taiwan HNC |
Sealing |
1set |
NOK |
Main motor |
1set |
Siemens Beide |
Hydraulic pump |
1set |
Taiwan HYDROMAX |
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer)
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
