featuers and characteristics
1. This equipment is mainly used for metal forming process, at the same time can also engaged in other sheet metal drawing, blanking, punching, bending, correction, etc.
2. This machine has the independent power mechanism and electrical system, USES the relay control technology,centralized control buttons, and is equipped with a mobile station button, which can realize both points, semi-automatic operation mode.
3. The machine working pressure, the traveling schedule scope may be adjusted according to the technological requirements.Stroke control using non-contact proximity switch.

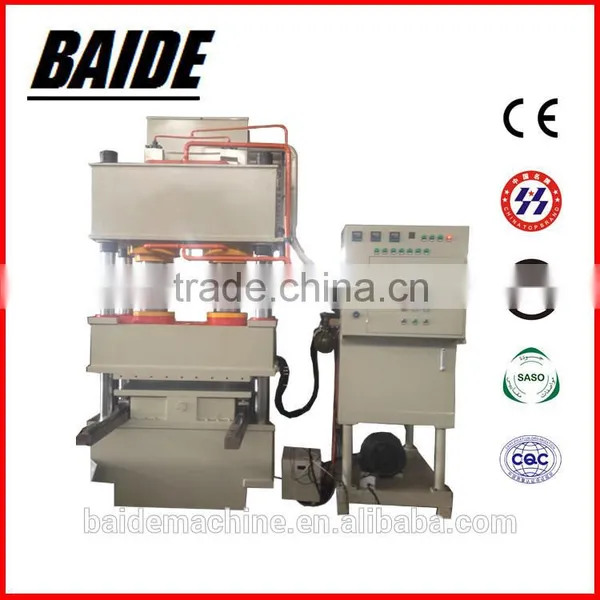

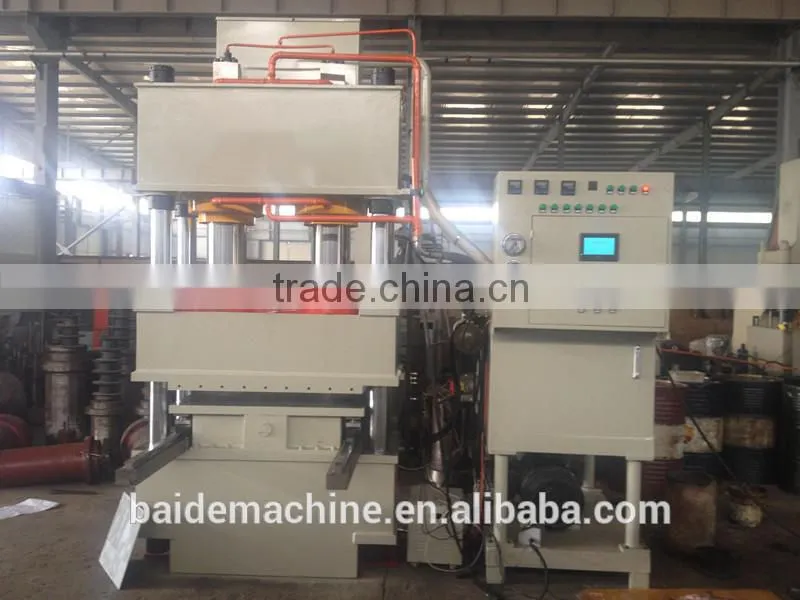

product show

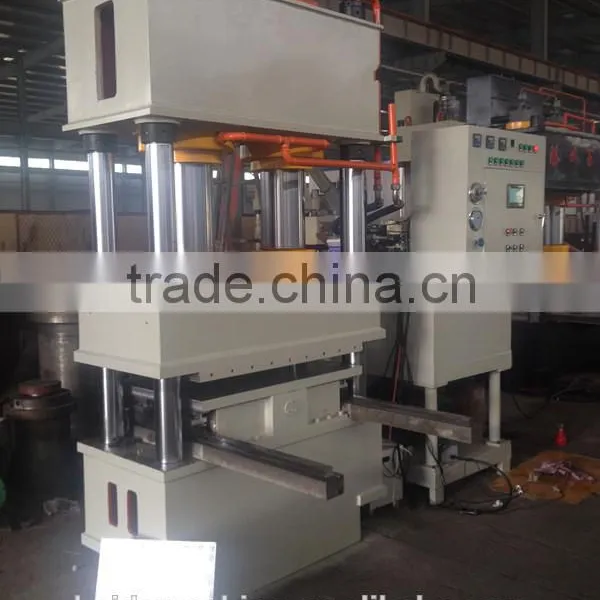

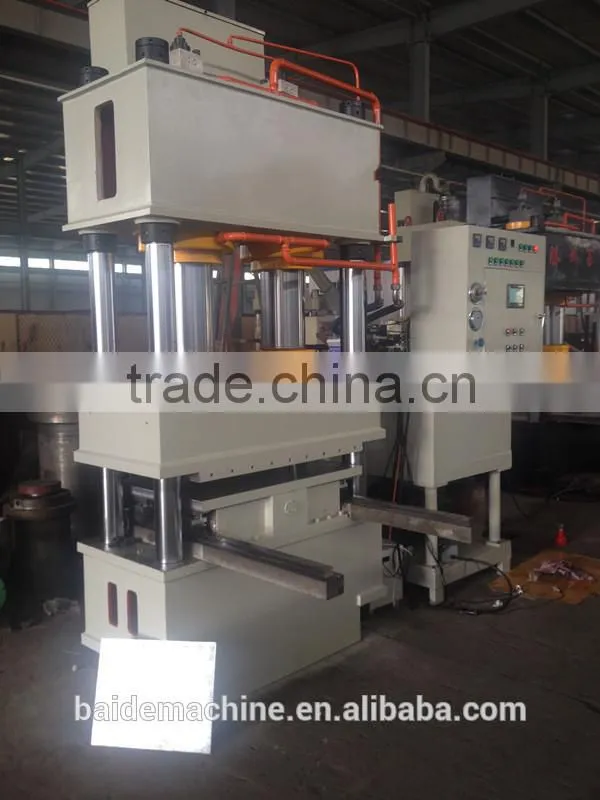

The host structure

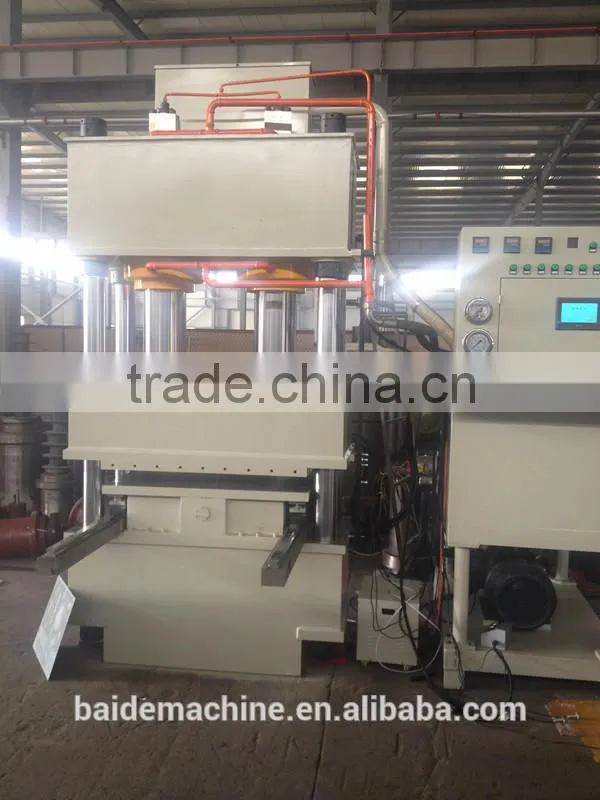

1. This machine adopts three beam four column structure, the fuselage by fixed on the workbench, slider, beams, columns, lock and adjusting nut, etc.Girder adopts steel plate welding, the main structure using co2 gas shielded welding.After welding inspection and aging treatment, eliminate the internal stress of the welded beam.Ensure the fuselage rigidity and accuracy.

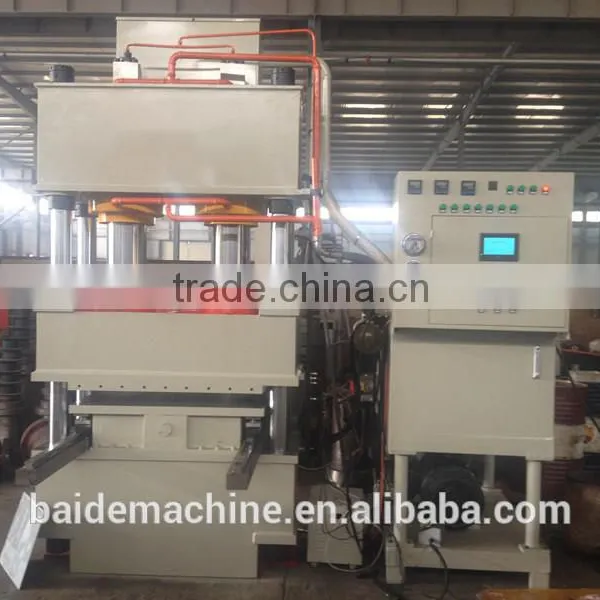

2. The machine has enough stiffness and strength, rely on host precision adjustment nut on the adjusting column to adjust. The machine has compact structure, beautiful appearance.
3. The slider movement on pillar and set selflubricating bearing guide in interplanting oriented to achieve movement up and down.

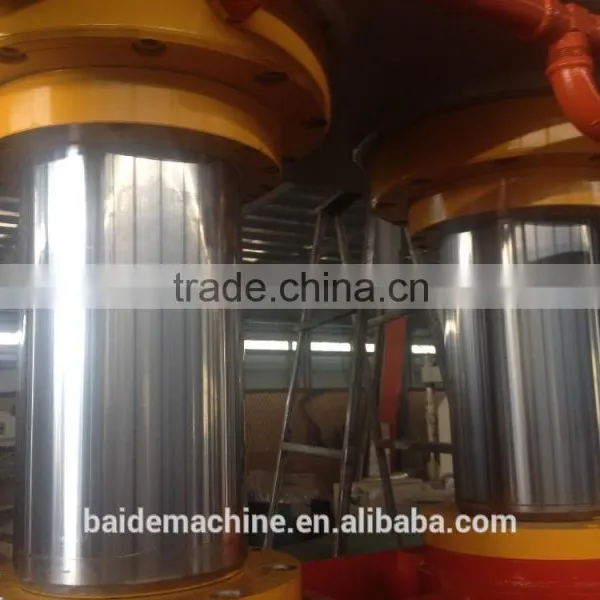

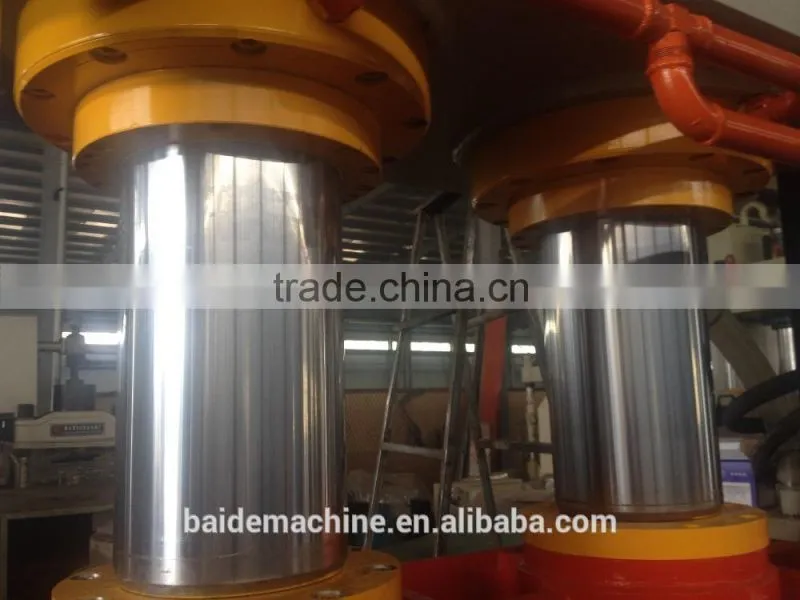

4. The forging of 45 # steel is used in the main oil cylinder, pillar, column, the surface of the piston rod for intermediate frequency quenching process to ensure that the surface hardness HRC45-52. Oil cylinder seals use high-quality domestic sealing ring.
Hydraulic control system
1. The hydraulic system adopts the integrated instrumentation system, which can realize the requirement of large flow, high precision, simple and compact structure, reliable.System is equipped with overload protection device to prevent damage ultrahigh pressure.Pipeline connection preferred flange connection, reduce the oil, easy to maintenance.Power system equipped with filtering system
2. The domestic wellknown enterprise product is used in the hydraulic components (Dr Germany rexroth cartridge valve), axial plunger pump,oil pump USES the liquid valve selection discharge type liquid valve normally closed.
3. Work N46 number is recommended for the hydraulic oil in the hydraulic oil
Electrical system
1. The electrical system for relay control.

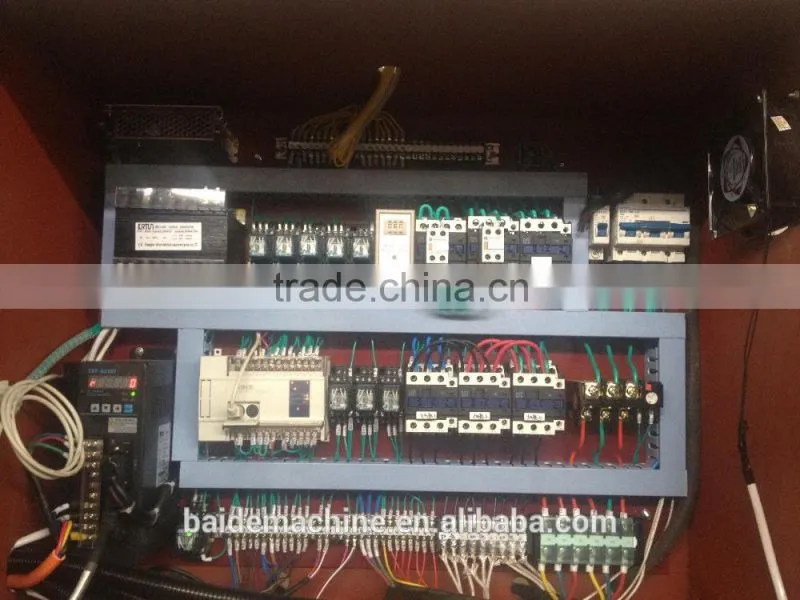

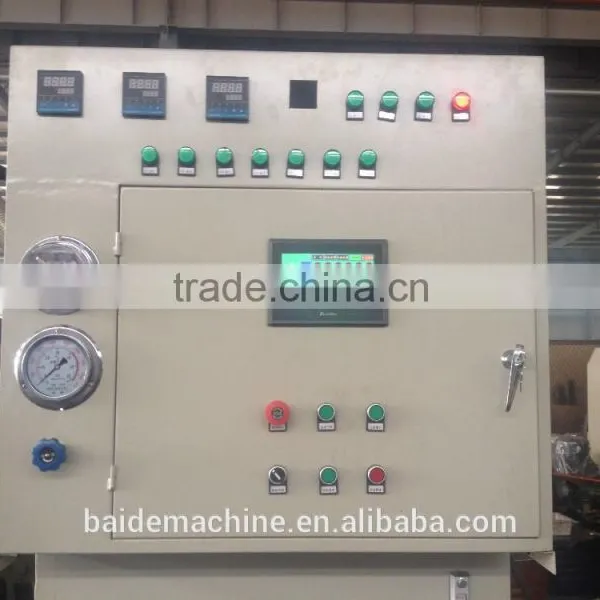

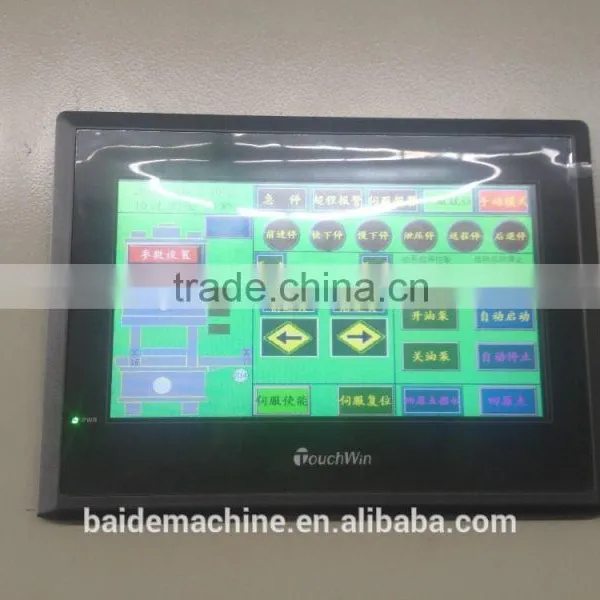

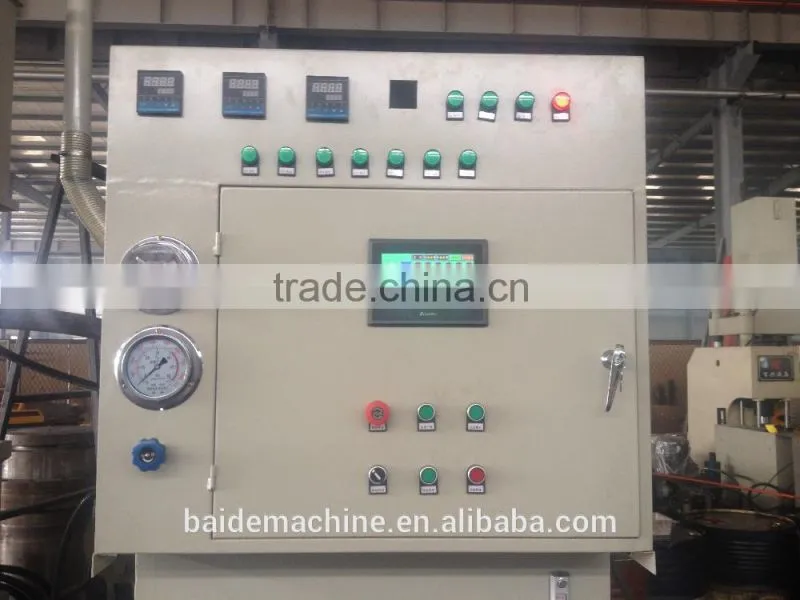

2. The electronic control system is composed of electrical cabinets and control button, power facilities and relay are installed in the electrical cabinet, various actions can be realized in control on the ark.
3. The power line of 380 v.Line of 220 v, 50 hz.Solenoid valve solenoid valve for ac 220 v.(voltage) can be modified
main parameters
Parameter name |
Unit |
Y28-63/100 |
Y28-100/160 |
Y28-200/300 |
Y28-315/400 |
Y28-400/630 |
|
Nominal force |
KN |
1000 |
1600 |
3000 |
4000 |
6300 |
|
Drawing force |
KN |
630 |
1000 |
2000 |
3150 |
4000 |
|
Blank holder force |
KN |
300 |
600 |
1000 |
800 |
2300 |
|
Max working pressure of the hydraulic |
Mpa |
28 |
28 |
28 |
28 |
28 |
|
Drawing slide stroke |
mm |
500 |
700 |
700 |
800 |
800 |
|
Blank holder slide stroke |
mm |
300 |
200 |
400 |
300 |
450 |
|
Drawing slide stroke opening height |
mm |
1100 |
1300 |
1400 |
1400 |
1700 |
|
Blank bolder slide stroke opening height |
mm |
700 |
700 |
900 |
800 |
1150 |
|
Drawing slide size |
R-L |
mm |
560 |
1000 |
1000 |
1260 |
2540 |
F-B |
mm |
500 |
800 |
900 |
1200 |
1580 |
|
Blank holder slide size |
R-L |
mm |
560 |
1000 |
1000 |
1260 |
2540 |
F-B |
mm |
500 |
800 |
900 |
1200 |
1580 |
|
Table size |
R-L |
mm |
560 |
990 |
1000 |
1260 |
1580 |
F-B |
mm |
500 |
900 |
900 |
1200 |
1580 |
|
Power |
kw |
7.5 |
22 |
30 |
22 |
42.5 |
|
Weight |
kg |
3500 |
12000 |
18000 |
19000 |
40000 |
|
Main component suppliers
Hydraulic valve: Bosch Rexroth,Germany
high-pressure pump: Chengjie Aviation Silence Pump,China
Main electric components:Schneider,France
Motor: Siemens,Germany
Main cylinder seals: NOK,Japan
Oil cylinder: Parker,USA
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer)
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
