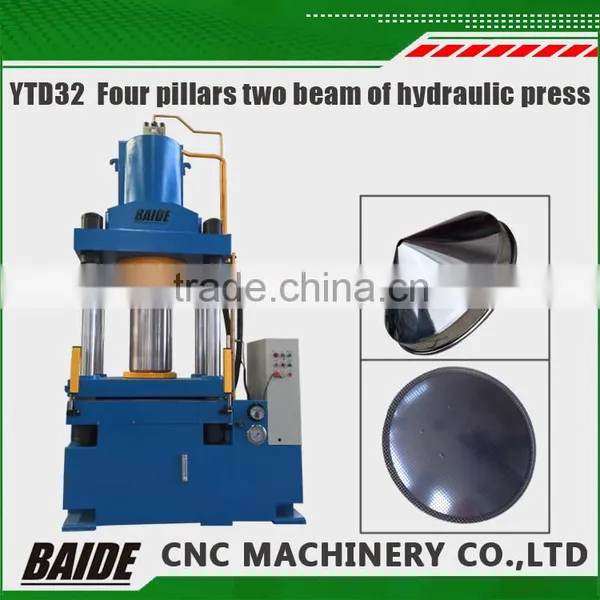

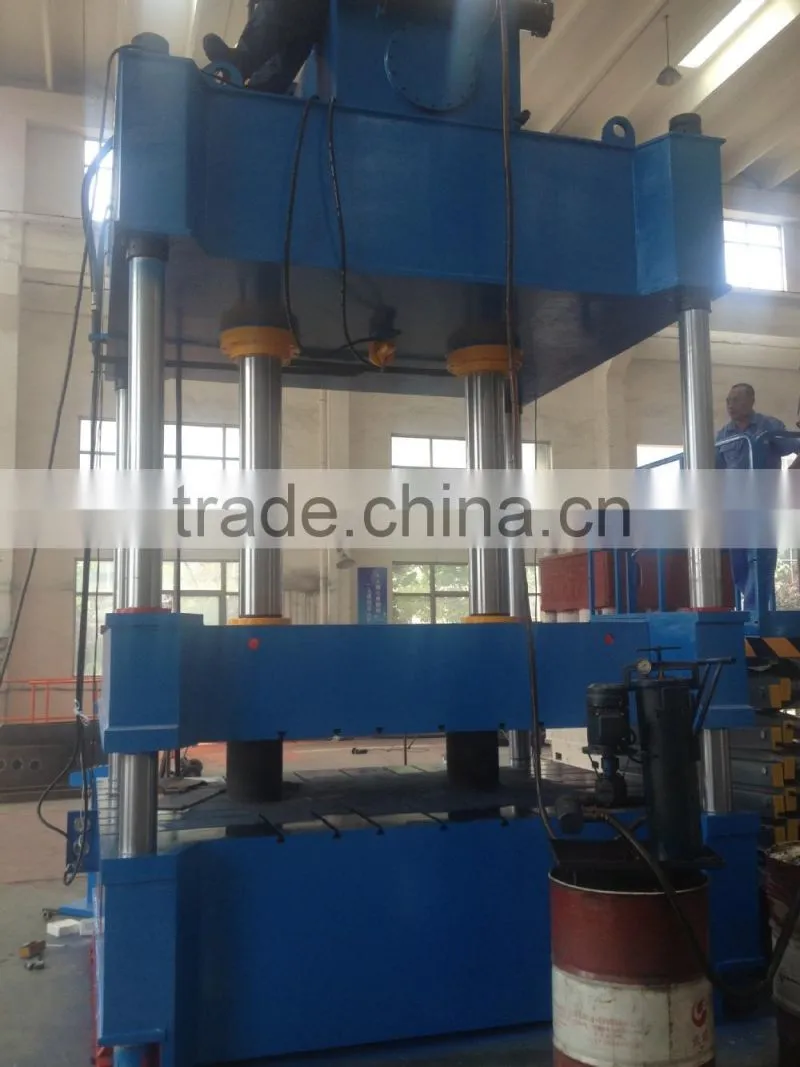

Four Columns Hydraulic Press Machine HYDRAULIC PRESS MACHINE

Name: Four Columns Hydraulic Press Machine HYDRAULIC PRESS MACHINE
Brand: Baide
SKU: 106233751

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Maanshan Baide CNC Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Anhui, China

Brand Name Baide

Model Number YQ32

Voltage 380V

Power(W) 1500W

Weight varies with dimension

Dimension(L*W*H) varies

Certification CE

Warranty 1 year

After-sales Service Provided Overseas third-party support available

Product Description

1. This equipment is mainly used for metal forming process, at the same time can also

engaged in other sheet metal drawing, blanking, punching, bending, correction, etc.

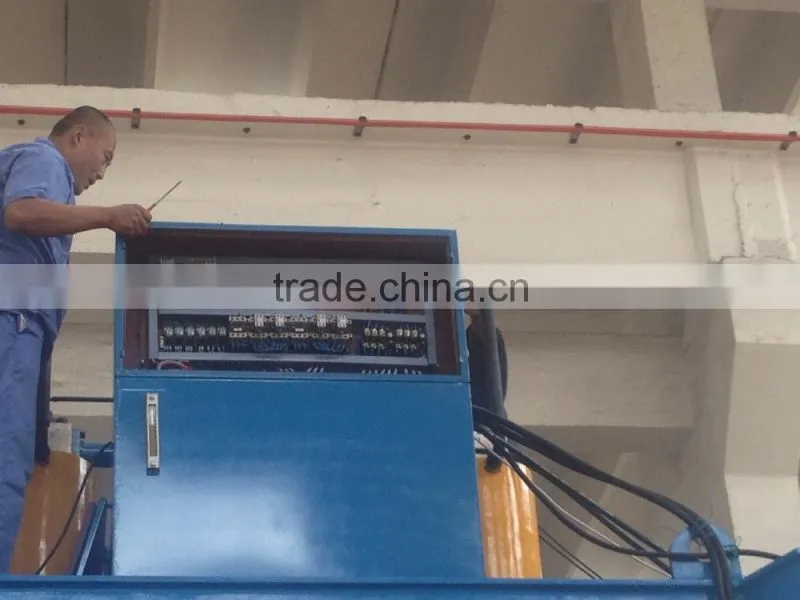

2. This machine has the independent power mechanism and electrical system,

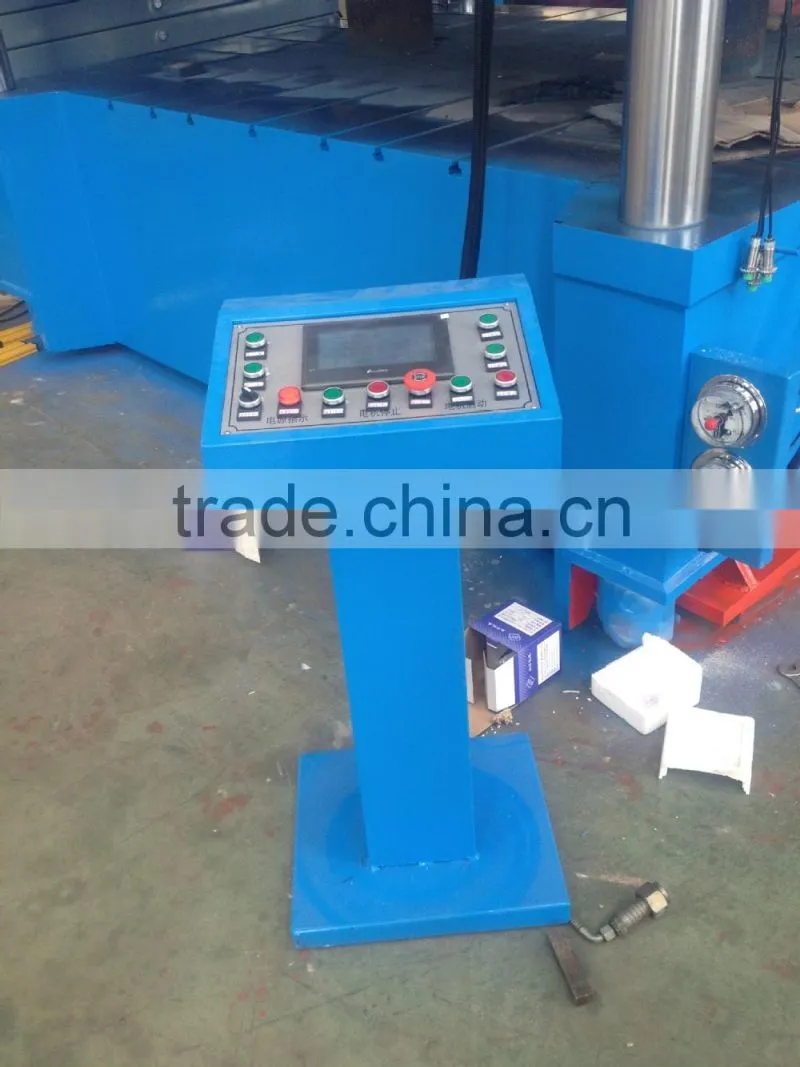

USES the relay control technology, centralized control buttons, and is equipped

with a mobile station button, which can realize both points, semi-automatic operation mode.

3. The machine working pressure, the traveling schedule scope may be adjusted

according to the technological requirements.Stroke control using non-contact proximity switch.

Main technical parameter:

Item	Unit
Nominal force	kn	3150
Max. pressure of liquid	mpa	31
Ram stroke	mm	400
Max. opening height	mm	650
Column center distance (around before and after )	mm	800×500
size of the working platform (around before and after )	mm	700×700
Worktable size(around before and after )	mm	1000×700
Worktable height	mm	680
Machine overall dimensions	mm	2150×900×2400
Motor power	kw	11
