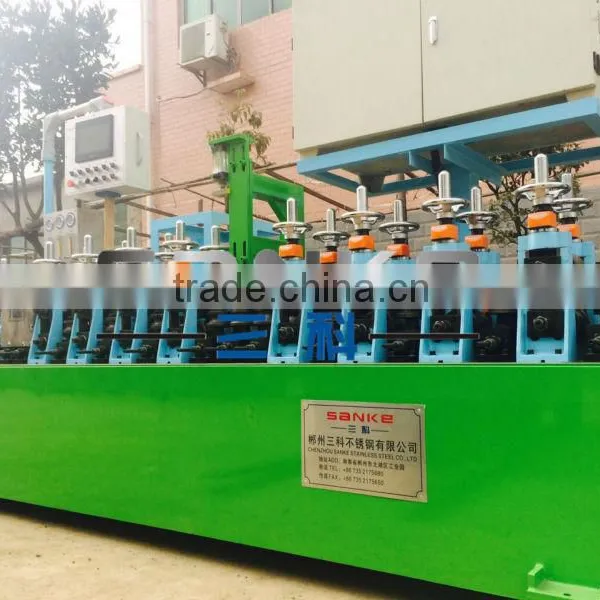

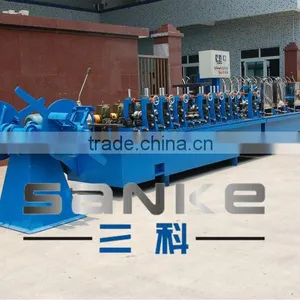

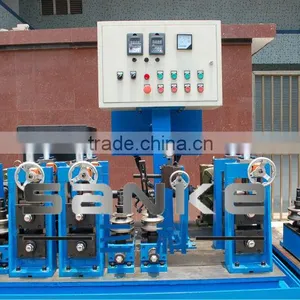

Help CenterGood Stainless Steel Pipe Making Machine/stainless Steel Tube Production Line
Related Products
-
Advanced New Condition SS Pipe Production Line/pipe MillUS$ 18,000 - 600,000MOQ: 1 Set -
Square/rectangular Pipe Making Machine/pipe Mill Apply for Decoration UsesUS$ 12,000 - 300,000MOQ: 1 Set
-
Corrugated/stainless Steel Pipe Making Machine for Hand RailingUS$ 3,360 - 45,000MOQ: 1 Set
-
High Quality Stainless Steel Pipe Mill Decorative Type Making Machine With Factory PriceUS$ 10,000 - 30,000MOQ: 1 Set
-
Auto Exhaust Stainless Steel Pipe Making Machine /Pipe Mill New Made in ChinaUS$ 15,000 - 20,000MOQ: 1 Set
| Model | Main motor power(kw) | Pipe OD(mm) | Pipe thickness(mm) | Speed of welding(m/min) | Horizontal axis diameter(mm) | Vertical axis diameter(mm) | Size of host machine(l*w*h) |
| ZG30 | 5.5 | 6-38 | 0.2-0.8 | 0.5-7 | 40 | 30 | 7.2*0.9*1.82 |
| ZG40 | 7.5 | 9.5-50.8 | 0.3-1.5 | 0.5-6 | 40 | 30 | 8.7*1.08*1.82n |
| ZG50 | 11 | 38.1-76.2 | 0.4-2 | 0.5-5 | 50 | 35 | 9.4*1.26*1.92 |
| ZG60 | 15 | 50.8-89 | 0.6-2.5 | 0.5-4.5 | 60 | 40 | 11.5*1.7*2.0 |
| ZG70 | 18.5 | 63.5-143 | 0.8-3.5 | 0.5-4 | 70 | 45 | 12.8*1.8*2.05 |
| ZG80 | 22 | 89-168 | 1.2-4 | 0.5-3 | 80 | 50 | 13.5*1.9*2.07 |
| ZG90 | 30 | 127-219 | 1.5-5 | 0.5-2.5 | 90 | 55 | 14*2.3*2.1 |
| ZG100 | 37 | 143-273 | 2-5.5 | 0.5-2 | 100 | 60 | 16*2.8*2.4 |
| ZG120 | 75 | 168-325 | 2-6 | 0.5-1.5 | 120 | 70 | 18*3.0*2.6 |
1.Send engineers to make the foundation and install the machine until it works out qualified pipes.
2.Provide skilled master to guide your workers to operate the machine,even work at your site if needed.
3.Provide the technical documents about machinery installation,maintenance,operation and so on.
4.Any problem during production process contact us directly.We will solve it as soon as possible.
we have special technology on stainless steel making machine with more than 20 years design and reserch experience.
Q:How to trust your company?
A:Because we are professional and enjoyed a good reputation both at home and abroad.
Q:How to guarantee your quality?
A:we have a strict quality management systerm to check every order carefully
Q:How can I get more details about products?
A:We will offer you best price referring to your detail request,so please kindly inform us of the material,thickness,size(length,width)color and other requirements you prefer, special offer will be given. If you need any information, we can give you our suggestions.
Contact us to discuss more details :we are at ur serive all the time
Send Inquiry to This Supplier
