Home > Products > Central locking system > Promotion price central door locking system for car
Promotion price central door locking system for car
- 100000 Set / Sets per Month
- GUANGZHOU
- T/T L/C D/P D/A PayPal
- Promata Remote Keyless Entry kit for Car Central Locking System DC 12V Ce automotive parts accessories
- Promata Remote Keyless Entry +security function for Car Central Locking System DC 12V Ce automotive parts accessories
- Promata Remote Keyless kit for Car Central Locking System DC 12V/24V
- Promata high quality 24VDC truck Remote Keyless kit with 2 doors lock actuators
- Car Door Lock Actuator With Connector Used For Renault Oe No. 7702127213
- Manufacturer OE actuator for Renault car door lock
Product Details
Certification: | Other, CE, CE/ FCC/ ROHS/ CCC/ E-mark | Voltage: | DC 12V | Material: | Plastic material |
Place of Origin: | Guangdong, China | Brand Name: | BATTLESNAKE | Model Number: | CF305 |
Warranty: | 12 Months |
Product Description
Promotion price central door locking system for car CF305
Univeral for any 12V car type Door Locking System
Function:
Central locking system is the car door locking system, which supporting the car door LOCK and UNLOCK working, the 4 door actuators will provide the enough motor power to the car door system working well.
Advantage:
1-With the metal wheel inside of the door actuator which support the working of the high power motor 5.5kgs; |
2-Don't use the recycle plastic cover materials, all used 757ABS; |
3-Long working life, the endurance is more than 100,000.00 times; |
4-Never use the aluminum coated wire for the door actuator, the main harness wire is adopted good copper wire. |
5-Providing the strong hardware fitting parts, not easier to get the rustiness. |
6-With tacks for each door actuator to make sure the door actuator will not blow out |
Photo:

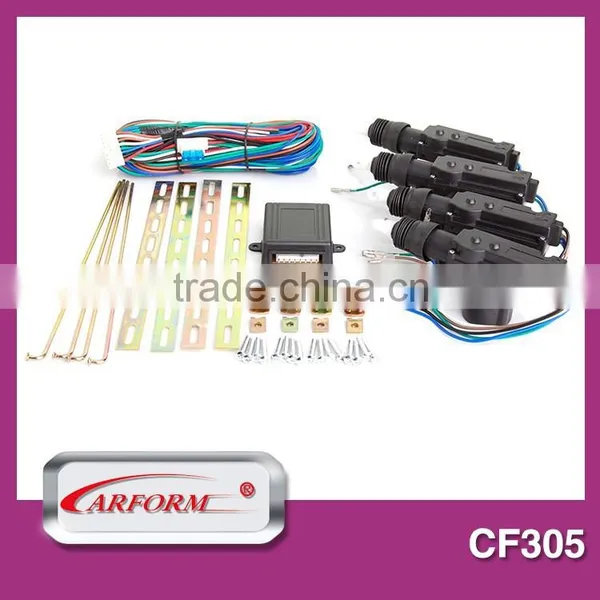

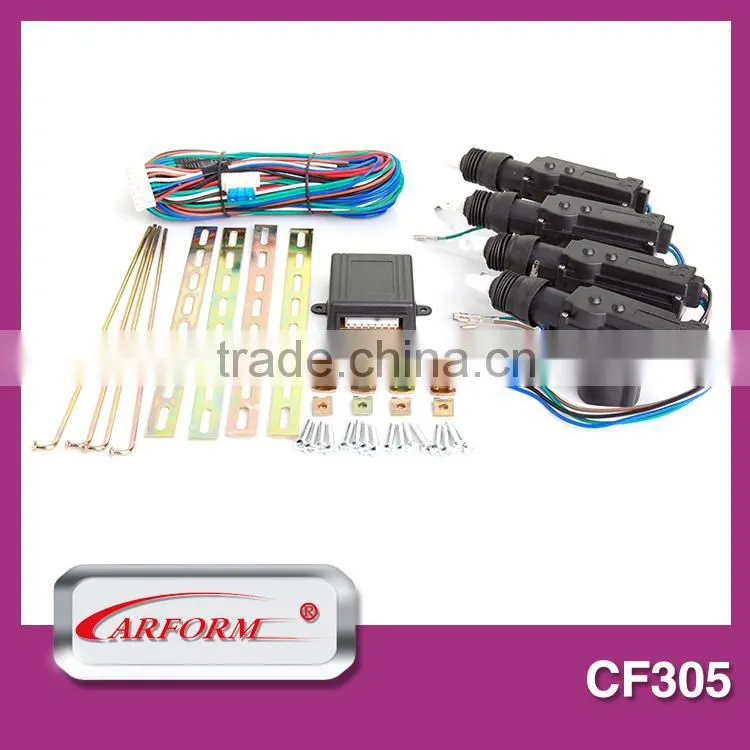

CF305 car central door locking system whole kits view
Remarks:1-You can choose 1 master or 2 master
CF305A | 1 master:1 pcs of 5 door actuators, 3pcs of 2 door actuators |
CF305B | 2 master:2 pcs of 5 door actuators, 2pcs of 2 door actuators |
2-You can choose the actuator head in white or black color
CF305 central door locking system whole kits accessories :
1 | Control unit | 1pcs | 5 | Iron rods | 4pcs |
2 | door actuators | 4pcs | 6 | Screws | 24pcs |
3 | Iron parts(8 holes) | 4pcs | 7 | Wire(2 master:35.4M; 1 master:27M) | 1pcs |
4 | English Manual | 1pcs | 8 | Color box | 1pcs |
Specification:
Operation temperature | -30~80°C | Stroke | 21-22mm |
Voltage | 12/24V | No-load &load current | 1.5A+ OR -5% & 3A+ or - 10% |
Actuating force | 5.5kgs | The cover materials(actuators & mainunit) | 757ABS |
Endurance(up & down) | >100000times | Wiring | 2 master:35.4M; 1 master:27M |
Packing:
Size(cm) | Qty | 1 master Weight(kgs) | 2 master Weight(kgs) | |
Color box | 24*18*6.5 | 1pcs | 1kgs | 1.15kgs |
Carton | 50.5*31.5*50 | 20pcs | 20kgs | 23kgs |
20GP container | 7000sets | 7000kgs | 8050kgs |
Promotion price central door locking system for car CF305
