Home > Auto, Motorcycle Parts & Accessories > Car Lock > Cheap Durable Central Locking System Door Locking System With 4 Guns Actuators

Cheap Durable Central Locking System Door Locking System With 4 Guns Actuators

Cheap Durable Central Locking System Door Locking System With 4 Guns Actuators photo-1
Cheap Durable Central Locking System Door Locking System With 4 Guns Actuators photo-2
Cheap Durable Central Locking System Door Locking System With 4 Guns Actuators photo-3
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
Other, CE, CE ISO9000
Voltage:
DC 12V
Material:
Plastic material, Plastic material
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Certification Other, CE, CE ISO9000
Voltage DC 12V
Material Plastic material, Plastic material
Place of Origin Guangdong, China
Brand Name BATTLESNAKE
Model Number CF306
Warranty 12 Months

Cheap durable central locking system door locking system with 4 guns actuators

Product Description



Function:

Central locking system is the car door locking system, which supporting the car door LOCK and UNLOCK working, the 4 door actuators will provide the enough motor power to the car door system working well.



Advantage:

1-With the metal wheel inside of the door actuator which support the working of  the high power motor 5.5kgs;
2-Don't use the recycle plastic cover materials, all used 757ABS;
3-Long working life, the endurance is more than 100,000.00 times;
4-Never use the aluminum coated wire for the door actuator, the main harness wire is adopted good copper wire.
5-Providing the strong hardware fitting parts, not easier to get the rustiness.
6-With tacks for each door actuator to make sure the door actuator will not blow out



Photo:

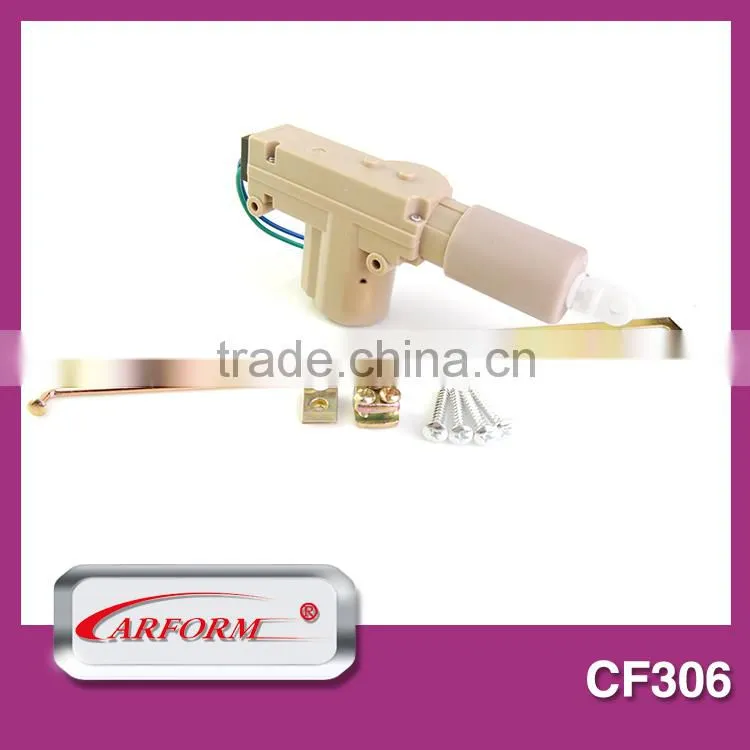

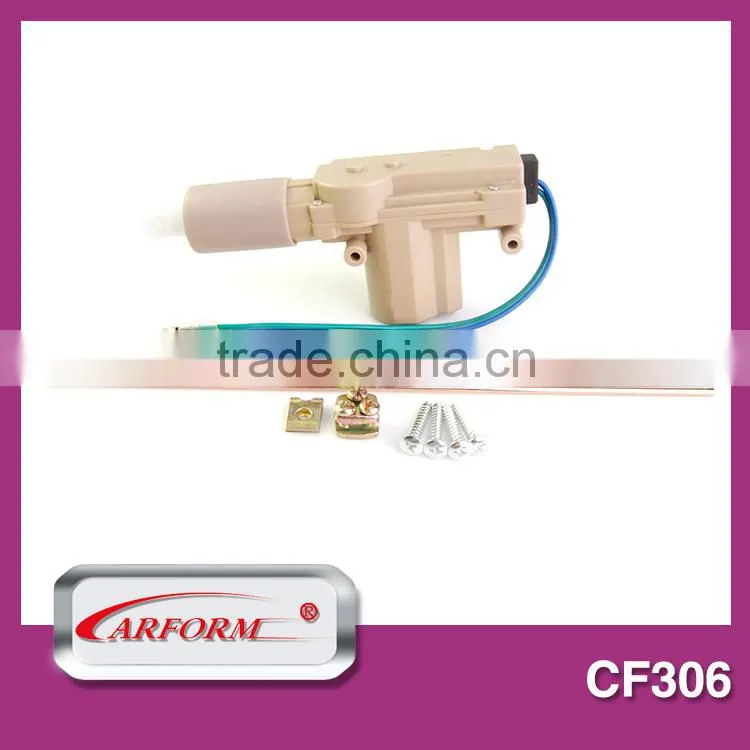

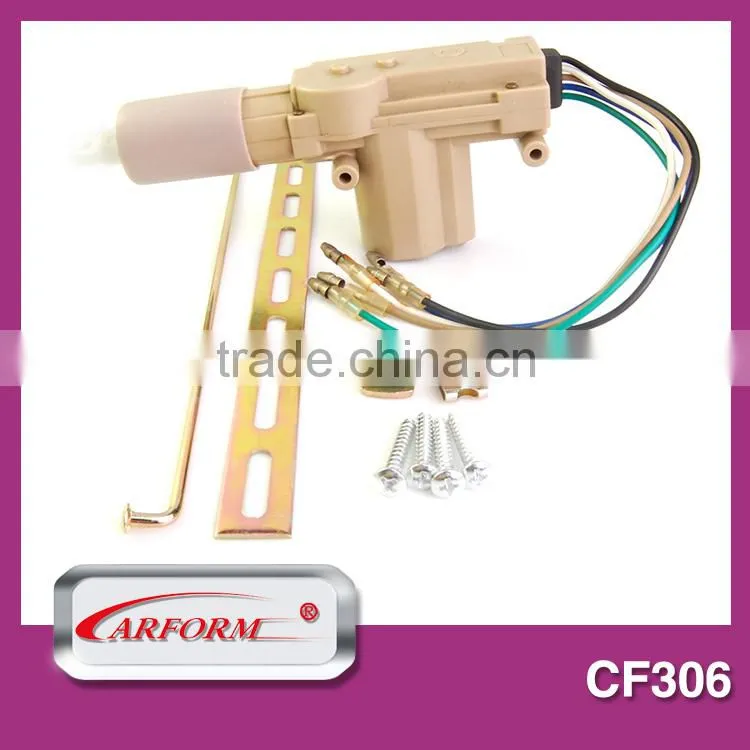

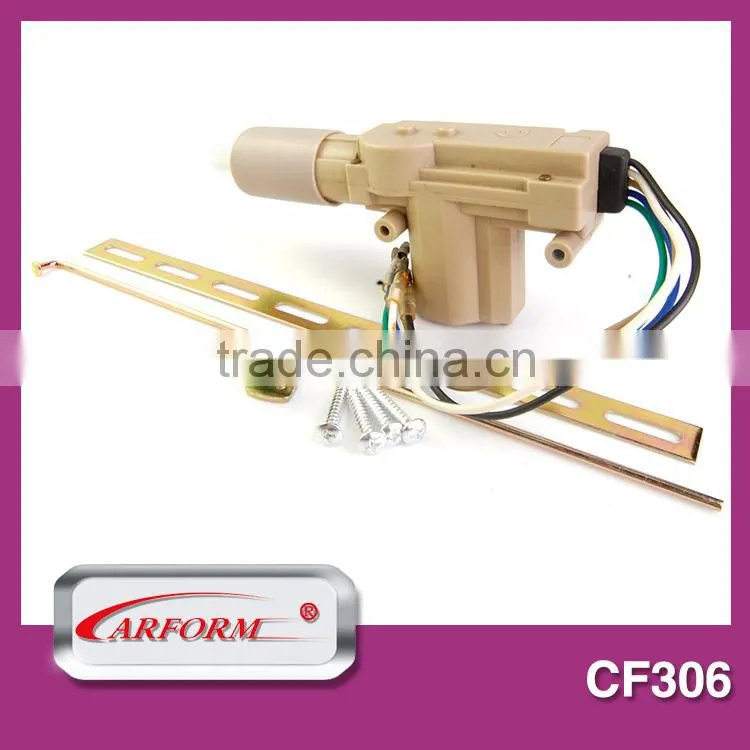

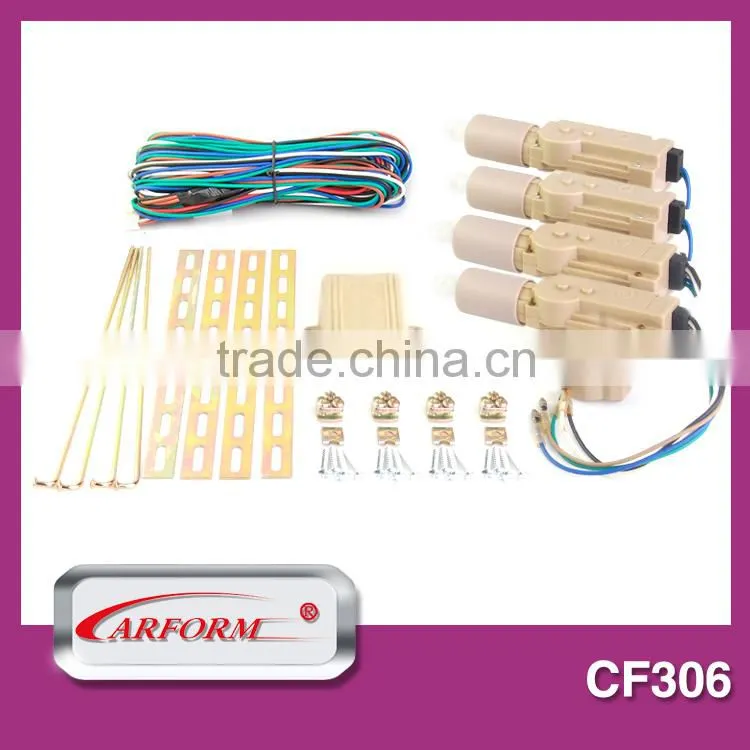

CF306 car central door locking system whole kits view:

CF306 car central door locking system Accessories:



Remarks:
1-You can choose 1 master or 2 master

CF305A

1 master:1 pcs of 5 door actuators,

3pcs of 2 door actuators

CF305B

2 master:2 pcs of 5 door actuators,

2pcs of 2 door actuators


2-You can choose the actuator head in white or black color



CF305 central door locking system whole kits accessories :

1 Control unit 1pcs 5   Iron rods 4pcs
2 door actuators 4pcs 6 Screws 24pcs
3 Iron parts(8 holes) 4pcs 7 Wire(2 master:35.4M; 1 master:27M) 1pcs
4 English Manual 1pcs 8 Color box 1pcs



Specification:Cheap durable central locking system door locking system with 4 guns actuatorsCheap durable central locking system door locking system with 4 guns actuatorsCheap durable central locking system door locking system with 4 guns actuatorsCheap durable central locking system door locking system with 4 guns actuatorsCheap durable central locking system door locking system with 4 guns actuators

Operation temperature -30~80°C Stroke 21-22mm
Voltage 12/24V No-load &load current 1.5A+ OR -5% & 3A+ or - 10%
Actuating force 5.5kgs The cover materials(actuators & mainunit) 757ABS
Endurance(up & down)  >100000times Wiring

2 master:35.4M;

1 master:27M









Packaging & Shipping



Packing:

Cheap durable central locking system door locking system with 4 guns actuators  Size(cm) Qty 1 master Weight(kgs) 2 master Weight(kgs)
Color box 24*18*6.5  1pcs 1kgs 1.15kgs
Carton 50.5*31.5*50  20pcs 20kgs 23kgs
20GP container   7000sets 7000kgs 8050kgs
