Home > Products > DC-DC step down 3.3-9V output > waterproof DC-DC converter 12v12v-22v to 9v2a step down power converter, car power supply module

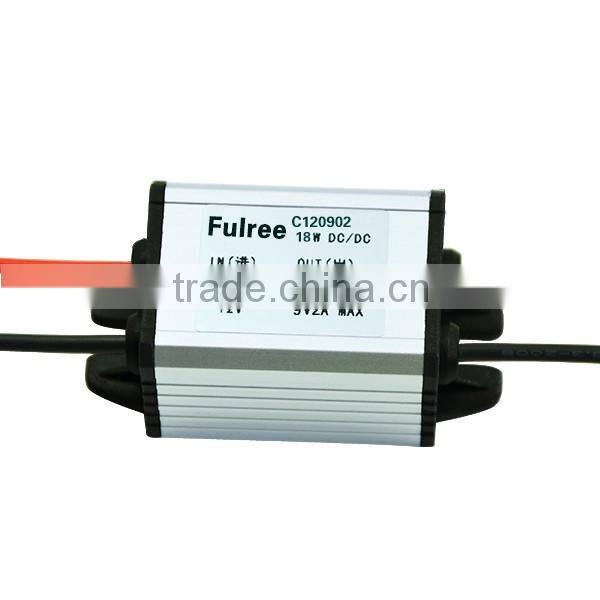

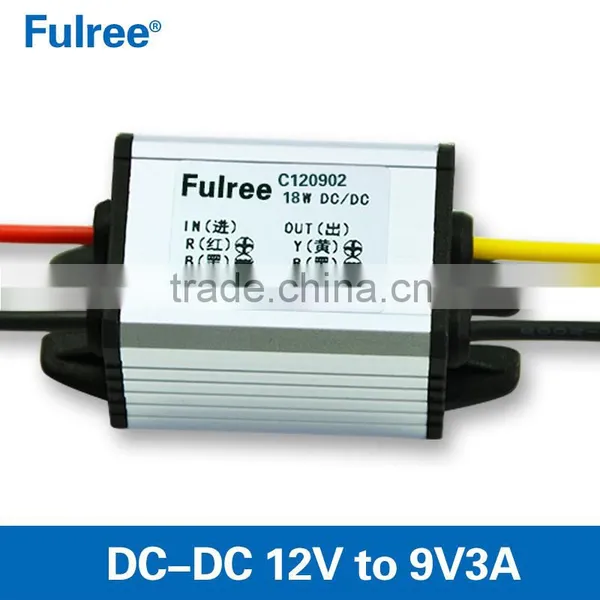

waterproof DC-DC converter 12v12v-22v to 9v2a step down power converter, car power supply module
- 10000 Piece / Pieces per Month
- SHENZHEN/HONGKONG
- Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Guangdong, China | Brand Name: | fulree | Model Number: | 120902L |
Output Power: | 1 - 50W | Output Type: | Single | Size: | 35*25*21MM |
Weight: | 35G | Input Voltage: | 12-22V | Output Voltage: | 9V |
Type: | DC/DC Converters | Output Frequency: | 0-400HZ | Output Current: | 3A MAX |
Product Description
waterproof DC-DC converter 12v12v-22v to 9v2a step down power converter, car power supply module ower converter, car power supply module
Model | 120902L |
Input rated voltage | 12V |
Input voltage range | 12-22V |
Efficiency | 93% (half load), 91% (full load) |
Output voltage | 9v(minimum pressure difference:3V) |
Output current | 2A MAX |
Output rated power | 18W |
Voltage regulation | < 1% |
Load regulation | < 2% |
Working temperature | -40°c ~+80°c( If ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) |
Module Properties | non-isolated buck module(buck) |
Rectification | synchronous rectification |
Waterproof rating | IP68 |
Full load temperature rise: | 50°c |
Protection | Over-current, Over-temperature, Input Reverse Polarity Protection, Short-circuit protection, Auto-recovery when device is back to normal operating, waterproof IP68 design, anti-shock protection |
NW | 50G |

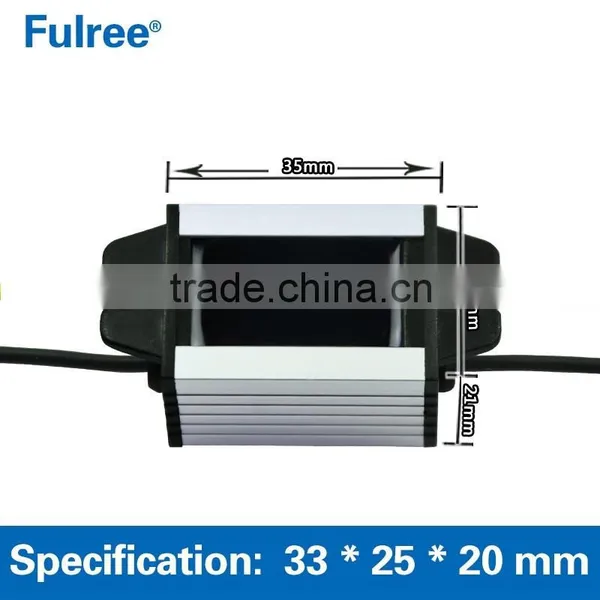

Product size | 35*25*21MM |
Other output voltage available | 3.3V, 3.7V, 4.2V, 5V, 6V, 7.5V, 9V (pls contact with our sales manager if need) |
Attention: >Pls install according to the the label strictly,positive pole and nagative pole can’t be reversed, or the module and device might be damaged |
