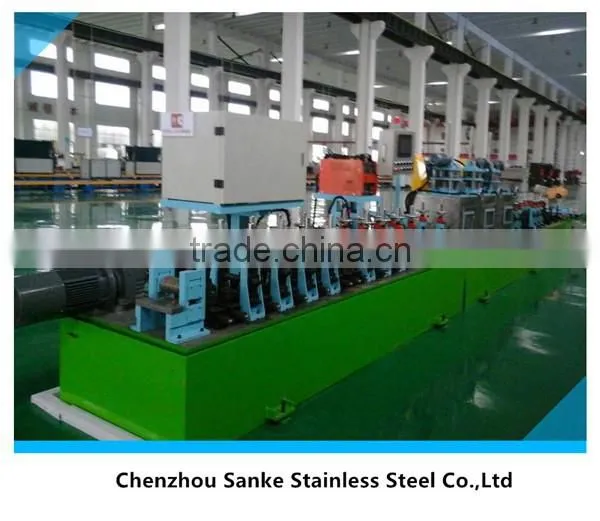

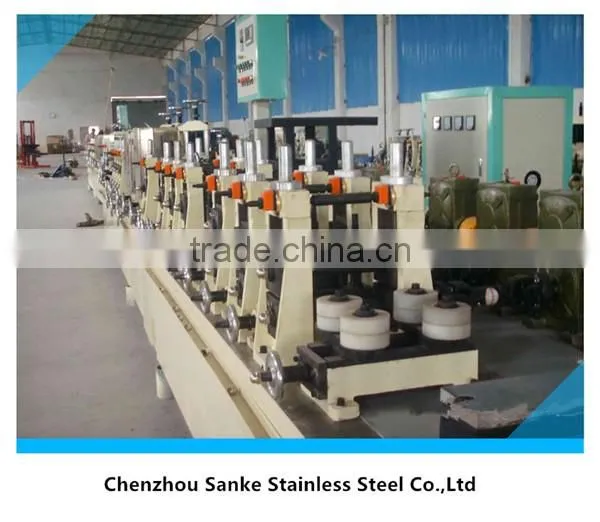

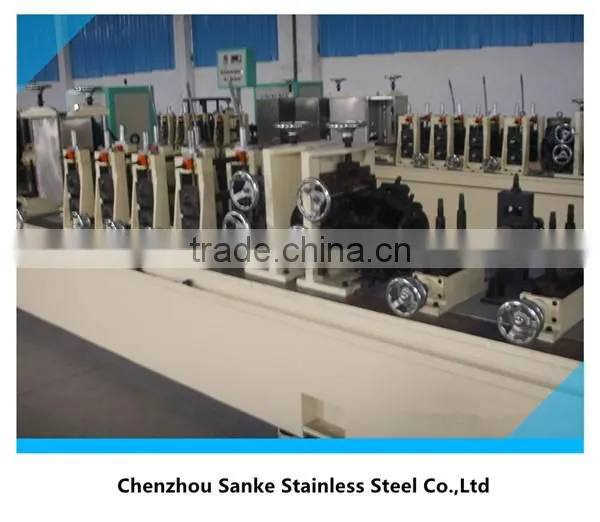

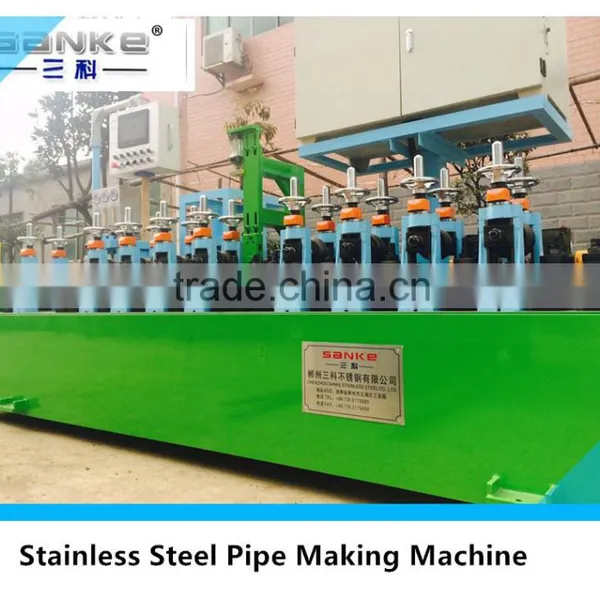

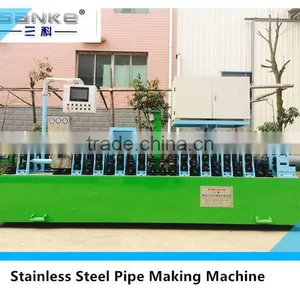

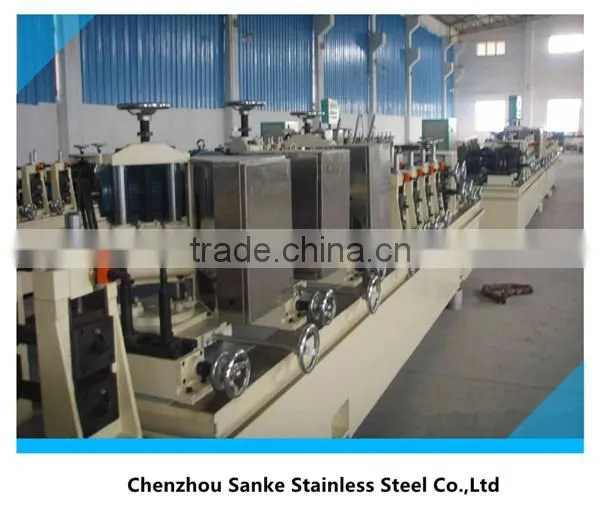

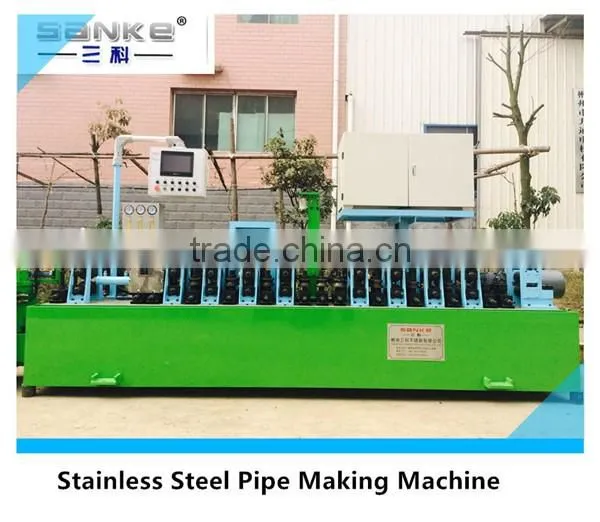

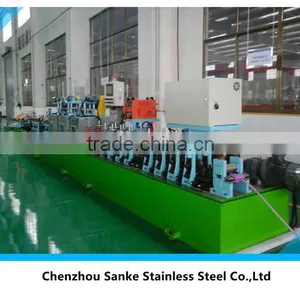

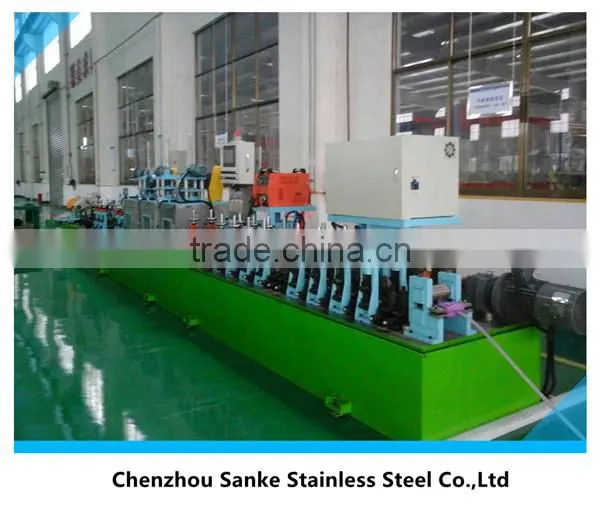

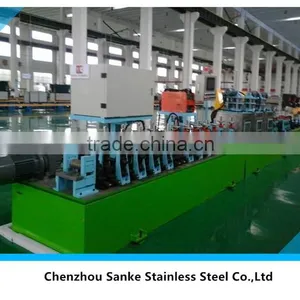

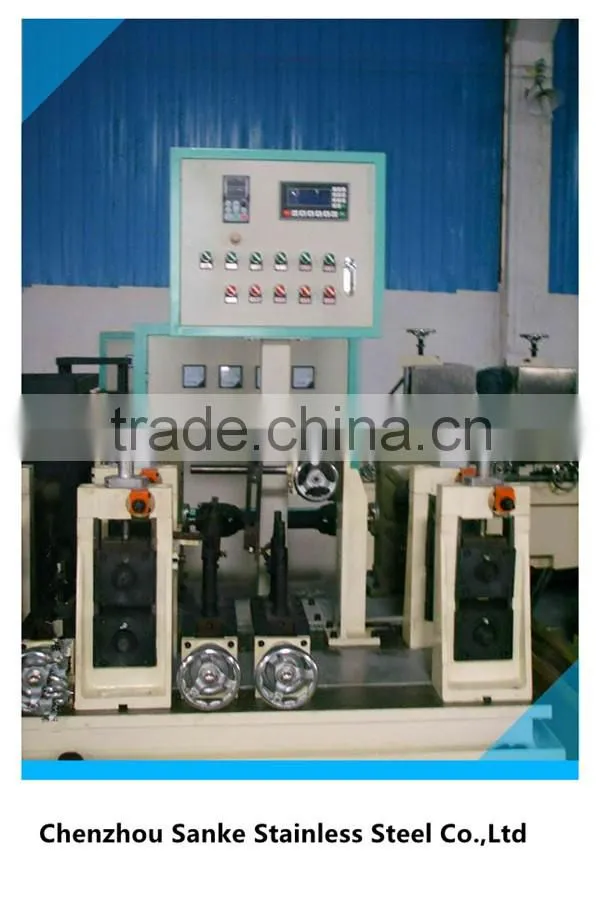

Advanced new Condition stainless steel Pipe making machine for round tube mill
1.Manufacture Stainless Steel pipe making machine widely applied in furniture,windows,construction decorative,domestic application,mechanical structure,biycle,chair,desk,etc
2.Process of Stainless Steel pipe making machine:
Uncoiling--Branding--Forming--Welding--Outside weld bead grinding--sizing straightening--testing--fixing length--cutting--collecting.All process could be done at one time.
3.Advantage of Stainless Steel pipe making machine
--Manufacture from finest material.Steady,durable,and long lifetime.
--Cost effective,high return of investment
--Automatic control,safe&easy to operate
--Easy to replace the molds,save working hour,,and encrease efficiency
--Low noise
--99.5%of pipe production passrate,less waste of coils.
--Offer investment consulation on Stainless Steel tube mill production line plan.
--Oversea Service Center Available
Applications:
1)provide the technical paper material for installment,maintenance,operation and so on;
2)provide equipment's key element bill of materials;
3)provide technical training for the equipment operation attendants;
4)provide the installment instruction and the debugging work of the equipment;
5)provide the perpetual paid service after the quality guarantee period.
1Established in 1993.More than 20years experience in stainless steel pipe making machinery.
2)Sanke Company has established a high-tech enterprise in Hunan Province.
3)Gained many state patents and honorary certificate
4)Passed GB/TISO9001-2000 quality management certification.
5)Obtained national independent import & export right since 2004.
Q.What are the types of stianless steel pipe making machine?
Stainless steel pipe welder equipment is classified by use: Industrail stainless steel pipe making machine, Decorative stainless steel pipe making machine.
Q.What are the supporting part of stainless steel pipe making machine?
1. Decoiler: According to the specifications of the pipe to buy steel strip,put the coil up material on the shelf,introduction of forming part.

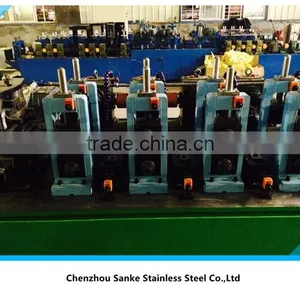

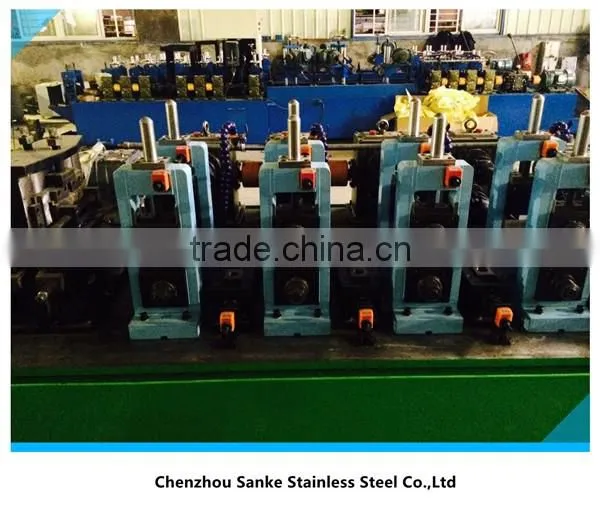

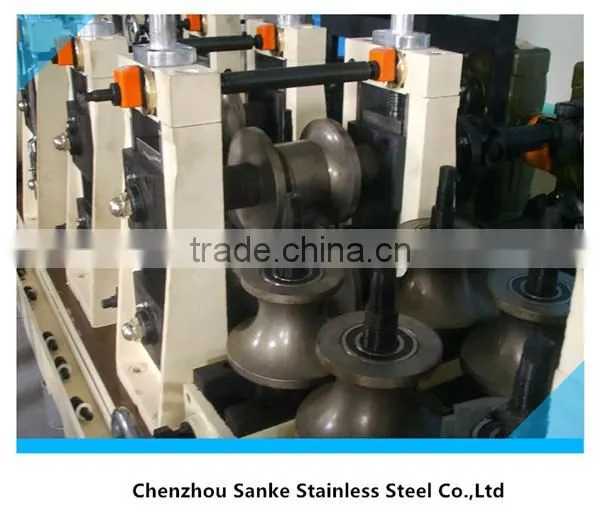

2. Forming Part: Using the scroll welded pipe dies.
3. Welder: Welding.
4. Grinding Part: Weld grinding.
5. Straightening and Sizing Part: Fine-tuning pipe diameter.

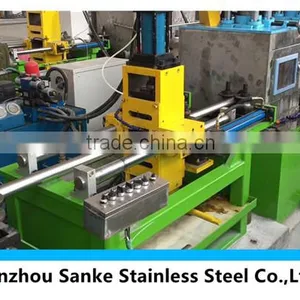

6. Cutting Part: Metal hydraulic cutting or grinding wheel cutting.
7. Length fixed: Automatic defining material.
Q.What are the features of Chenzhou Sanke stainless steel pipe making machine ?
ChenzhouSanke stainless steel pipe welder equiment is sturdy and durable, high precision, full automation, easy operation, continuous production, high efficiency, less waste of materials, the rate of finished product is high, low production cost.
Q.Why steel pipe leakage welding?
1. Welding torch position is too high;
2. Welding torch around is not aligned;
3. Current is too high to melt;
4. Welding current is too small is not on;
5. No argon welding fire do not focus; (Replace argon)
6. Mould and steel with water or oil, caused by welding fire is not focused.(With Nitrocellulose lacquer thinner, turpentine or toluene cleaning steel strip)
Q.What are the production of stainless steel pipe making machine and accessories needed?
A whole set of stainless steel pipe welder equipment including, pipe making machine, welder, mould(die/roller), round pipe polishing machine/square pipe polishing machine, polishing material, steel strip, etc.
