Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Foldable/collapsible Plywood Box Machine

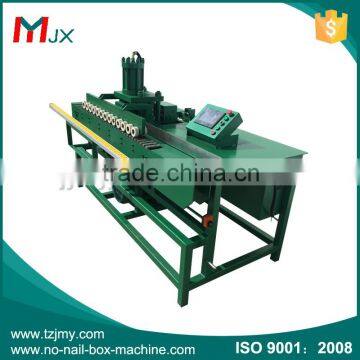

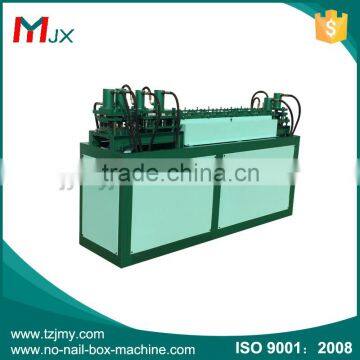

Foldable/collapsible Plywood Box Machine

Foldable/collapsible Plywood Box Machine thumbnail-3

Foldable/collapsible Plywood Box Machine thumbnail-4

Foldable/collapsible Plywood Box Machine thumbnail-5

Foldable/collapsible Plywood Box Machine thumbnail-6

Foldable/collapsible Plywood Box Machine photo-1

Foldable/collapsible Plywood Box Machine photo-2

Foldable/collapsible Plywood Box Machine photo-3

Foldable/collapsible Plywood Box Machine photo-4

Foldable/collapsible Plywood Box Machine photo-5

Foldable/collapsible Plywood Box Machine photo-6

US$ 8,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Cartons, Case

Contact Supplier Request Quote Chat Now

Taizhou Jiangyan Mingyu Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Machinery & Hardware

Packaging Type Cartons, Case

Packaging Material Metal, Wood

Automatic Grade Automatic

Driven Type Hydraulic

Voltage 380V/50HZ

Power 6.3KW

Place of Origin Jiangsu, China

Brand Name MJY

Model Number MJY-D

Weight 300kg

Dimension(L*W*H) 85mm*50mm*118mm

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

foldable/collapsible plywood box machine

Taizhou Jiangyan MingYu Machinery factory is manufacturer can offer you foldable/collapsible nailless plywood box machine with high quantity and best price.

we are focuses on the technology research& production& marketing of high quality machinery and

m old. The company mainly produces plywood box series machinery and other related accessories

Our foldable/collapsible nailless plywood box machine-double hole steel strip machine can product

five width:40mm,45mm,50mm, 55mm, 60mm.Set the width you need on the screen, it will product the width

you input.

Style	MJY foldable/collapsible nailless plywood box machine
External unit dimension	L=85mm B=50mm H=118mm
Maximum input power	3.6KW
Input voltage	Alternating current 380V 50HZ, three phases and five lines
PLC	Siemens S7-200 , PLC CPU 224
Servo motor	Taiwan Dongyuan Power:0.45KW
Dedicated servo reducer	Taiwan high precision servo reducer Speed ratio1:16
IPC	19 LCD
Mold lubricating oil	100#gear oil
Hydraulic oil cylinder	Bore 80mm and 63mm, Piston stroke 60 mm
Total unit quality	300kg
Hydraulic oil brand	# 46 antiwear machine oil, tank volume of about 45 liters

Another foldable/collapsible nailless plywood box machine

Steel strip machine can product dual-steel strip at one time , You can choose three width:41.5mm,35mm, 32mm.Our machine uses the most advanced IPC. The new control system, more stable, efficient, simple.

Systemic self-diagnostic function can protect the equipment from damage to the maximum

style	MJY foldable/collapsible nailless plywood box machine
External unit dimension	L=2100mm B=580mm H=1400mm
Maximum input power	6.3 KW
input voltage	Alternating current 380V 50HZ, three phases and five lines
PLC	Siemens S7-200 , PLC CPU 226
Servo motor	Taiwan Dongyuan Power:3.0KW
Dedicated servo reducer	Taiwan high precision servo reducer Speed ratio1:28
IPC	19”LCD
	Windows XP Professional SP3
Mold lubricating oil	100#gear oil
Hydraulic oil cylinder	Bore 63mm and 50mm ,Piston stroke 30 mm
Total unit quality	720 kg
hydraulic oil brand	# 46 antiwear machine oil, tank volume of about 140 liters

Buckle machine

we have single-sided buckle machine and double-sided buckle machine

Input the length and quantity of panel and position of buckle on the operation page, then just

feeding the panels manually

Style	MJY foldable/collapsible nailless plywood box machine
External unit dimension	L=2050mm B=960mm H=1350mm
Maximum input power	8KW
Input voltage	Alternating current 380V 50HZ, three phases and five lines
PLC	Siemens S7-200, PLC CPU 224XP
Servo motor	Taiwan Power:p=450W; p=1KW
Dedicated servo reducer	Taiwan high precision servo reducer Speed ratio1:28 1:32
Display	7 inch touch color screen
Pump motor	5.5.0 kW 1450r.p.m
Hydraulic oil brand	46# anti-wear machinery oil volume of tank: about 60L
Mold lubricating oil	100#gear oil
Hydraulic oil cylinder	Diameter of cylinder: 100mm, Piston stroke:50mm
Total unit quality	840 kg
Air pressure	0.4mpa
