Specifications
2.For gasoline;3.Computer controlling;
4.USB interface;
5.Automatic type.

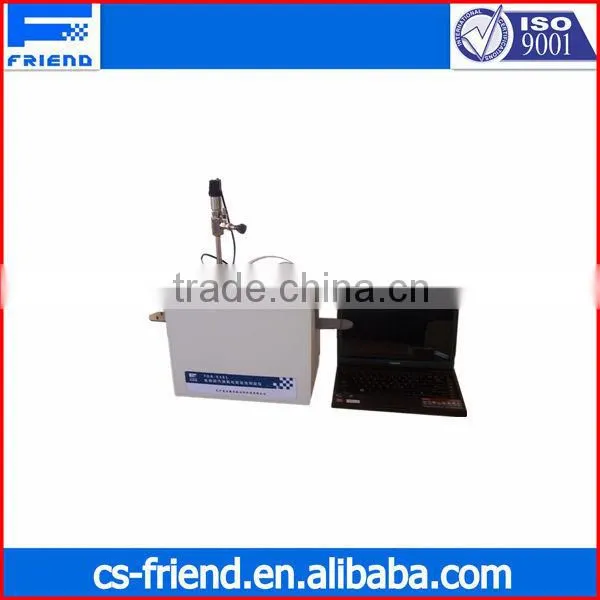

FDR-0181 automatic oxidation stability of gasoline Meter (induction period method)
Application range
confirm toGB/T8018, ISO5736,ASTM D525, DIN51781
Features
1,Oxidation stability analyzer, automatic petrol computer control technology, automatic detection, calculation and control, The whole operation is simple, control precision, High degree of automation, a series of advantages.
2, Fully automatic analyzer of oxidation stability of gasoline using the most advanced USB interface with a computer connected, simple to use.
3,Changed the traditional water bath for the metal bath, no pollution, no need to pay, the operation is more convenient to use.
4, To improve the design of the insulation system, both to save energy and avoid the risk of burn injury to the operator.
5, The integrated design of the test oxygen bomb assembly, not only greatly reduce the oil andgas pressure test tubing, pressure detection more accurate, and Since High tightness manual use of the needle valve, you can ensure that the testing process oxygen bomb good seal, so that The test
Specifications
1,Heating tube power: 1600W, The actual heating power is controlled automatically by a computer; ,
2,Control Point: 100 ° C ± 1°C, The temperature of The metal bath;
3, Oxygen bomb pressure transmitter measuring range: 0 to 1600kPa accuracy of ± 0.2%;
4, Thermometer: equipped with mercury-in-glass Thermometer, you can immediately necessary correction department degree;
5,Ambient temperature: less than or equal to 30 °C; ,
6,Ambient humidity: less than or equal to 80%;
7, power supply: AC220V ± 10%, 50Hz;
.What's the Dlivery method ?
Light-weight cargo is usually by express , Air transport and sea shipping is acceptable (provide with safty packing)
What's the delivery time?
According to different method and country , express will be 3~15 days
- ASTM D2857,ISO 1628, ASTM D1243, D1795, ISO 3104, ASTM D445
- ISO5736, ASTM D525
- ASTM D 665,IP135
- ASTM D892
- ASTM D1298
- ASTM D1401
- ASTMD2274
- ISO2160,ASTM D130,IP154
- ISO3735
- astm d4530
- ASTM D2699 ASTM D2700
- ASTMD2272
- ASTM D2711
- ASTM D5621
- astm d5293
oxidation stability analyzer | |||||||
|
FDH-0171 |
FDH-0131 |
FDH-0181 |
FDR-0101 |
FDR-0131 |
FDR-0181 |
FDR-0401 |
Standards |
SH/T0193,ASTMD2272
|
ISO5736,ASTM D525,DIN51781 |
GB/T8018,ISO5736, D525,N51781 |
GB/T8018 ASTM D525 |
SH/T0175-94,ASTMD2274 |
||
methods |
rotating bomb method |
induction period method |
induction period method |
induction period method |
|
||
Power |
AC220V ± 10% |
AC220V ± 10% |
AC220V ± 10% |
AC220V ± 10% |
AC220V ± 10% |
AC220V ± 10% |
AC220V ± 10% |
heating tube power |
2500W |
1500W, 2 × 800W heater three groups |
2500W |
2000W |
2000W |
1600W |
2500W 800W |
pressure sensor range |
0 ~ 1.6MPa, Accuracy: ± 2 ‰ |
|
0 ~ 1.6MPa, Accuracy: ± 2 ‰ |
|
Range 0 ~ 1500KPa |
0~1600kPa |
|
oil bath temperature range |
room temperature ~ 200.0 ℃ |
140 ℃-150 ℃ |
room temperature ~ 200.0 ℃ |
|
|
100℃±1℃ |
|
Temperature accuracy |
± 0.1 ℃ |
± 0.1 ℃ |
± 0.1 ℃ |
98 ~ 102 ℃± 0.1 ℃ |
|
|
95 ± 0.2 ℃ |
rotating mechanism speed |
100 ± 5r / min |
100 ± 5r / min |
100 ± 5r / min |
|
|
|
|
Name |
Automatic lubricant oxidation stability analyzer |
Gasoline Oxidation Stability Tester |
Automatic analyzer oxidation stability of gasoline |
Distillate Fuel Oil Oxidation Stability Tester |
|||
