Home > Products > Fuels Testing Equipment > essential oil distillation equipment
essential oil distillation equipment
- 200 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hunan, China | Brand Name: | Friend | Model Number: | FDR-4371 |
Power: | Other, Electronic, Electronic | Usage: | Other, Universal Testing Machine, measuring device distillation range of petroleum products |
Product Description
Specifications
1,we are Automatic crude distillation analyzer china manufacturer2 large-screen LCD,XEC reading system.High resolution,

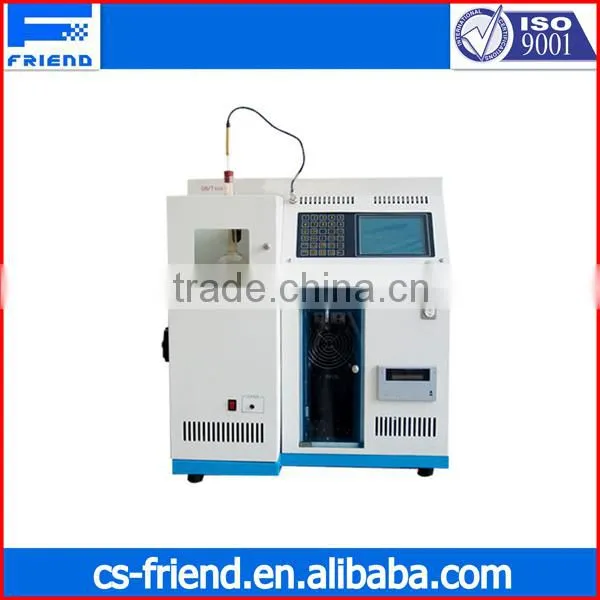

Automatic crude distillation analyzer FDR-4371
Place of Origin: | Changsha China (Mainland) | Brand Name: | Friend | Model Number: | Automatic Distillation Analyzer |
Power: | Electronic | Usage: | Automatic Distillation Analyzer for Sale | Testees: | High boiling point oils,wax oils,lubricating oils,etc |
Heater for distillation flask: | 1000 W | Heater for receiving flask: | 350 W | Feature: | Single chip temperature controller |
Advantage: | Automatic data storage and print | Heating power for distillation flask: | 0~1000 W continuously adjustable | Air bath: | room temperature~100 °C continuously adjustable |
Temperature controlling accuracy: | ±1°C |
|
| Standard: | GB/T2538-88 |
Crude oil distillation range tester automatically Applied standards: GB/T2538-88, instrument device complies SH/T0121 “measuring device distillation range of petroleum products and technical conditions” provisions. Modular structure for a single tube, using low-voltage direct distillation centralized Heating method , built-in small cycles chunks cold bath Temperature, the United States imported infrared cylinder reading system, automatic Temperature recovery room, multi-chip master unit, and has auto-complete real-time Detection of atmospheric pressure automatic correction make it a powerful, stable and reliable, simple operation, energy saving Function Features.
Function Features
1,large-screen LCD, the software prompts
2, entire English operating system platforms, multiple operating modes are available for customers to use programming
3, using the U.S. imported infrared cylinder XEC reading system, High resolution, literacy scale, High precision, good stability
4, using a button to set the calibration system, user-friendly design, completely solve the traditional equipment calibration operation complicated process tracking
5, using the U.S. HP Precision tracking systems, rail wear, excellent drive, tracking amplitude can be controlled 0.1ml
4, Instrument can be upgraded to a computer controlled by computer (usually the LCD screen, you can not upgrade to a computer), the distillation process dynamic display relevant parameters for automatic optimization of heating power
5, new document provides methods and call functions, sufficient storage space for storing test record 6, cold baths and bath cylinder Temperature using intelligent control system, providing the necessary conditions for seven experimental groups, and automatically determine the termination condition issued by Test results, printable reports
8, software provided with the anti-overshoot system, which can effectively prevent the gas bumps case
9, According to customer requirements, upgrade the computer wired control or wireless control (non-standard, need to customize)
Technical Specification |
1, Operating environment;: Temperature 0 ~ 60 °C Relative humidity: ≤ 80% |
2, Display: color LCD touch screen. |
3, Distilling rate: 4 ~ 5mL/min |
4, Cold bath Measuring range: -10 ~ +70 °C |
5, Measuring range: room Temperature ~ +400 °C, resolution: 0.1 °C |
6, The volume Detection range: 0 ~ 100mL, resolution 0.1mL |
7, Temperature components: Import Detection element |
8, Power: AC220V 50Hz, total power: 1.5kw |
Package:Plywood case
Delivery Time:15 working days
Payment & Shipping Terms | Supply Capacity |
| |
Payment term : | T/T or L/C | Production capacity : | 500pcs/month |
MOQ: | 1 pc | Packing : | Wooden case |
Price | negotiable | Delivery way | By Air |
Means of transport : | FOB , CIF , CFR | Delivery time : | 10 days |
From the decision to buy a oil Analysis tester until selling it again. We focus on the life cycle of your machine, its operational availability and productivity. As a china manufacture, we offer you a comprehensive range of Petroleum Testing services to your needs include such as sample service, OEM service. Consulting. one year warranty, Product maintenance, software upgrades, Training operators. Get a phone call within 2 hours to give back. with training, mentoring
Mission :
Friend Instruments is the leading manufacturer of laboratory and testing equipment. The mission of friend Instruments is
To provide user friendly, simplified, technologically advanced, reliable & robust instrumentation/automation to global customers backed by efficient services
Applying creative innovations and modern techniques to uplift the standard of quality as to satisfy customers' need of achieving high precision & accuracy in measurement and testing
Further, to create an enviorment to nurture and promote innovations and core values amongst the employees so as to leave no stone unturned in fulfilling the expectations of customers.
To deliv er reliability & credibility
Vision :
Vision rules our organization. A framework, a supreme code of conduct cherishes us every day to serve the world better.
Friend Instruments envisages itself as an emerging organisation standing ahead of the competition through its marketing and manufacturing of the advanced laboratory equipments.
Frined Instruments evolves itself as a workplace of efficient individuals dedicated to serve the nation & china industry with constant improvement driven by innovation, integrity & inspiration.
