Specifications

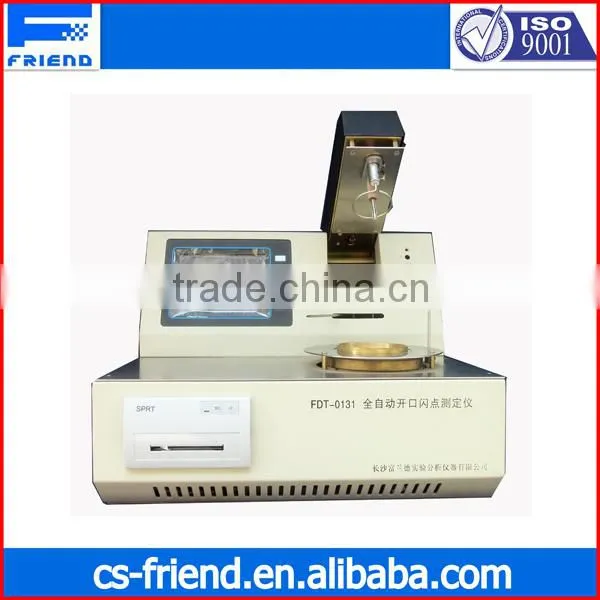

Automatic Cleveland Open Cup Flash Point Tester
1.Cleveland Open Cup Method
2.ASTM D92 and ISO 2592
3.LCD screen
4.Easy use
I. Summary
Automatic Flash Point Tester is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 centigrade.
Fully-automatic Cleveland Open Cup Flash Point Tester is designed according the standards GB/T3536-2008 Test Method for Flash Point and Fire Point of Petroleum Products - Cleveland Open Cup Method, ASTM D92 and ISO 2592
II. Main technical characteristics
1. Fully Automatic Open Cup Flash Point Apparatus adopts SCM controlling technologies, colored LCD, man machine conversation interface, and blank buttons. It has prompt menu to help inputting expected flash point, sample serial number, barometric pressure, test date, and other parameters.
2. Fully Automatic Open Cup Flash Point Apparatus adopts desktop structure. It is advanced, friendly, convenient, and accurate. It has been widely used in railway, aviation, power plant, petrochemical industry, relative college and universities, scientific research institutes, and measurement and inspection department for petroleum product flash point and fire point test.
Ⅲ. Main technical specification and parameters
| 1 | Power supply |
AC(220±10%)V, 50Hz |
| 2 | Temperature measurement | Range:room temperature~400°C |
| Repeatability:≤8°C | ||
| Reproducibility:≤17°C | ||
| Accuracy:0.1°C | ||
| 3 | Heating rate | Correspond with GB/T3536 and ASTM D92 |
| 4 | Igniting mode | Electric ignition |
| Gas flame diameter: 3.2mm~4.8mm | ||
| 5 | Ambient temperature | (10~40)°C |
| 6 | Relative humidity | ≤80% |
| 7 | Maximum power consumption | 500W |
open cup flash point series |
|
|
|
||
Model |
FDT-0101
|
FDT-0131
|
FDT-0132
|
FDT-0172
|
FDT-0192
|
Standards |
ISO2592,ASTM D92 |
||||
Range |
ambient~360℃ |
ambient~400℃ |
ambient~400℃ |
ambient~400℃ |
ambient~400℃ |
Repeatability |
≤4℃ |
≤4℃ |
≤4℃ |
≤4℃ |
≤4℃ |
Reproducibility |
≤6℃ |
≤6℃ |
≤6℃ |
≤6℃ |
≤6℃ |
Automatic up/down |
N |
Y |
Y |
Y |
Y |
Display |
N |
BlueScreen |
Color screen |
||
Automatic detect |
N |
Y |
Y |
Y |
Y |
Detect Fire point |
N |
N |
Y |
N |
N |
with microprinter |
N |
Y |
Y |
Y |
Y |
Sample cup |
1 |
1 |
1 |
3 |
6 |
Ignition source |
gas |
Electronic ignition,gas flame |
|||
1,warranty period, scope, and warranty conditions
" one year warranty, Product maintenance, software upgrades, installation, Training operators "
2,Speed problem solving
Get a phone call within 2 hours to give back
3,Devices with training, mentoring
