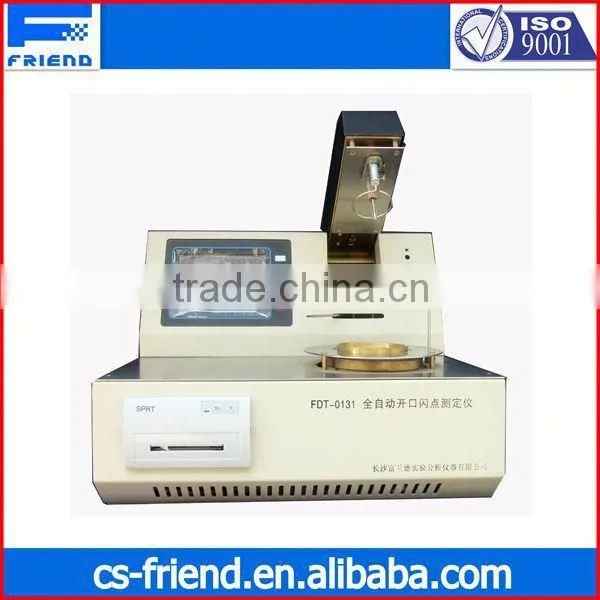

Petroleum Products Flash Point Apparatus

Petroleum Products Flash Point Apparatus thumbnail-1
Petroleum Products Flash Point Apparatus photo-1
US$ 3,000 - 4,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Friend
Model Number:
FDT-0131
Contact Supplier Request Quote Chat Now
Changsha Friend Experimental Analysis Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name Friend
Model Number FDT-0131
Power Electronic
Usage Other, Oil analysis

open cup flash point series







Model

FDT-0101

FDT-0131



FDT-0132



FDT-0172

FDT-0192

Standards

ISO2592,ASTM D92

Range

ambient~360℃

ambient~400℃

ambient~400℃

ambient~400℃

ambient~400℃

Repeatability

≤4℃

≤4℃

≤4℃

≤4℃

≤4℃

Reproducibility

≤6℃

≤6℃

≤6℃

≤6℃

≤6℃

Automatic up/down

N

Y

Y

Y

Y

Display

N

BlueScreen

Color screen

Automatic detect

N

Y

Y

Y

Y

Detect Fire point

N

N

Y

N

N

with microprinter

N

Y

Y

Y

Y

Sample cup

1

1

1

3

6

 Ignition source

gas

Electronic ignition,gas flame

asphalt flash point tester

1.Cleveland Open Cup Method
2.ASTM D92 and ISO 2592
3.LCD screen
4.Easy use

I. Summary

    Automatic Flash Point Tester  is used to determine flash point of petroleum products and bituminous materials, excepting fuel oil and materials having a flash point of lower than 79 centigrade.

     Fully-automatic Cleveland Open Cup Flash Point Tester is designed according the standards GB/T3536-2008 Test Method for Flash Point and Fire Point of Petroleum Products - Cleveland Open Cup Method, ASTM D92 and ISO 2592



II. Main technical characteristics





1. Fully Automatic Open Cup Flash Point Apparatus adopts SCM controlling technologies, colored LCD, man machine conversation interface, and blank buttons. It has prompt menu to help inputting expected flash point, sample serial number, barometric pressure, test date, and other parameters.

2. Fully Automatic Open Cup Flash Point Apparatus adopts desktop structure. It is advanced, friendly, convenient, and accurate. It has been widely used in railway, aviation, power plant, petrochemical industry, relative college and universities, scientific research institutes, and measurement and inspection department for petroleum product flash point and fire point test.



Ⅲ. Main technical specification and parameters



1
Power supply
 AC(220±10%)V, 50Hz
2 Temperature measurement Range:room temperature~400°C
Repeatability:≤8°C
Reproducibility:≤17°C
Accuracy:0.1°C
3 Heating rate Correspond with GB/T3536 and ASTM D92
4 Igniting mode Electric ignition
Gas flame diameter: 3.2mm~4.8mm
5 Ambient temperature (10~40)°C
6 Relative humidity ≤80%
7 Maximum power consumption 500W







  Asphalt series













 click

FDL-0401

FDL-0431

FDL-0501

FDL-0601

FDL-0631

FDL-0701



Standards

GB/T5304

SH/T0736

SH/T0425, T0615

T0613, GB/T4501

T0613 ,GB/T4501

SH/T0600



Power supply

AC 220V ± 10%, 50Hz



 Temperature range

163 ℃ ± 0.5 ℃

5 ~ 50 ℃

-10 ℃ ~ + 30 ℃

-30 ~ 100 ℃

-27 ℃ ~ 25 ℃

 room temperature ~ -75 ± 1 ℃



Temperature Resolution

 ± 0.5 ℃

 ± 0.5 ℃

 ± 0.5 ℃

1 ℃

± 0.5 ℃





 Heating power

2.5kw

 2.4kW

700W









Beaker effective volume















Relative humidity

≤85%

≤85%

≤85%



≤85%





Power consumption



less than 2.6kW

less than 1800W



less than 450W





Dimensions















Name

Asphalt rotating thin film oven (82)

Asphalt rotating thin film oven (85)

Bitumen wax content analyzer

Asphalt brittle point tester

Automatic asphalt brittle point tester

Asphalt crack point tester








petroleum products flash point apparatuspetroleum products flash point apparatus
