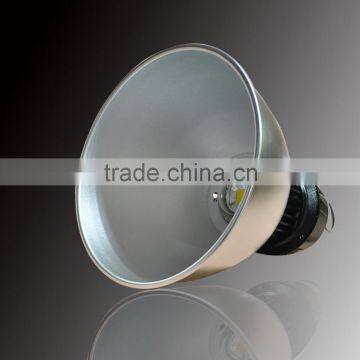

AC85-265V high bay light,High Quality 100w Led High Bay
Technical Data
Item No. |
100W |
Input Voltage |
AC 85-305V / 50-60Hz |
Working Voltage |
DC30-36V |
LED Type |
SMD LED |
Color Temperature (CCT) |
2700-3500K, 4500-5500K, 6000-7000K |
Beam Angle of Reflector (Optional) |
45°/ 90°/120° |
Color Rendering Index (CRI) |
>80 |
Lamp Efficiency |
>90% |
LED Luminous Efficiency |
100-105lm/w |
Power Factor (PF) |
>0.97 |
Total Harmonic Distortion (THD) |
≤9% |
Illuminance Uniformity |
>0.7 |
Light Distribution |
Symmetrical / Round Light Area |
LED Junction Temperature |
≤70℃ |
Waterproof Performance |
IP 54 |
Average Lifespan |
50,000hrs |
Net Weight (without Reflector) |
6.9kg |
Certificate |
CE / ROHS / SAA / UL |
Optional Lamp Cover
Photometric Diagram
Packing Information
Application
LED High Bay is more and more popular for indoor lighting, they can use widely in these
places below:Factory, Warehouse, GYM, Supermarket, etc.
Installation
Step 1: Connect the metal ring to the LED transformer cover, and tighten the screw, then install the LED high bay light to the right position.
Step 2: Loosen the 4 pieces screws in the Heat Sink, then fasten the screws after put the AL reflector into the right position.
Step 3: Connect LED high bay light to the power and lighten it, please distinguish the wires correctly.
1. Brown: L (Live wire)
2. Blue: N (Null wire)
3. Yellow: G (Ground wire)
Warning:
Please check the components before Installation, and read the User Manual before installation.
1. The installation must be implemented by qualified electrician.
2. Sulphides, corrosive and dissolve chemicals will damage the Lamp fixture, even the LED will be broken.
3. Working temperature: -20℃-45℃, the lifespan will be shorten if the working temperature beyond this range.
4. Please ensure the power is off, and the lamp fixture is cooled down sufficiently before installation.
5. Please ventilate the LED high bay light, and comply with local Fire Precautions Legislation.
AROMA Instruction
Aroma Technology Co.,Ltd was established in 2014, as a professional LED lighting manufacturers and LED lighting suppliers in China, we are specialized in research, development, manufacture and sales of LED panel light, LED down light, led floodlight and so on. Currently there are over 200 employees and a fabrication area of more than 6,000 square meters.
Aroma Technology Co.,Ltd is also a company focus on commercial lighting and outdoor lighting. all of our led panel light are with CE approval and ROHS compliance, part of the products gain FCC,PSE certification, and UL is pending .
As excellent quality, we provide all of our led panel light 3 years warranty.
