Home > Products > LED Tri-proof light > led high bay light 5 years warranty led high bay light 150w led high bay light

led high bay light 5 years warranty led high bay light 150w led high bay light

FOB Price

USD $80 - $220 / Piece

1 Piece(Min.Order)

Product Details

LED Light Source:	Philips/Cree	Warranty(Years):	5	Input Voltage(V):	AC100-277V
Lamp Power(W):	150	Lamp Luminous Flux(lm):	16500	Lamp Luminous Efficiency(lm/w):	110
Color Temperature(CCT):	Other, 2700k-7000k	Working Temperature(℃):	-20, 45	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP65	Certification:	CE, ETL, FCC, SAA, UL
Place of Origin:	Guangdong, China	Brand Name:	ARM	Model Number:	ARM-HB-7231ME7-150W, ARM-HB-7231ME7-150W

led high bay light 5 years warranty led high bay light 150w led high bay light

Product Features:

1.Energy saving: can reach 80% compare with traditional lamps.

2.Environment friendly: No radiation, no heavy metal pollution.

3.Wide voltage constant current, stable performance, safe and reliable.

4.Optimized heat sink design to ensure a excellent heat dissipation system.

5.Low power consumption, high intensity, low lumen attenuation.

6.High brightness, high lumen.

7.Easy to install and maintain, can directly replace incandescent/halogen lamp.

8.Cree/Philips led chip.

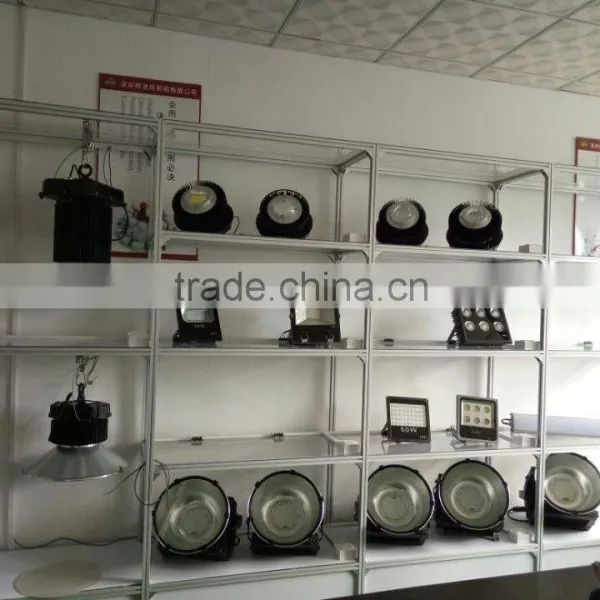

Product Picture:

Technical Data

Item No.	150W
Input Voltage	AC 100-277V 50Hz/60Hz
Working Voltage	DC30-38V
LED Type	SMD
LED Power	1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD)
Total Power Consumption	150W
Luminous Flux (±5%)	16500lm
Color Temperature (CCT)	2700-7000K
Beam Angle of Reflector (Optional)	45°/ 90°/120°
Color Rendering Index (CRI)	CRI>80
Lamp Efficiency	>90%
LED Luminous Efficiency	110lm/W
Power Factor (PF)	>0.95
Total Harmonic Distortion (THD)	≤10%
Illuminance Uniformity	>0.7
Light Distribution	Symmetrical / Round Light Area
LED Junction Temperature	150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535)
Waterproof Performance	IP 65
Average Lifespan	50,000hrs
Net Weight (without Reflector)	6.60kgs
Certificate	CE / RoHS / SAA / ETL/DLC

Mechanical Specifications

Lamp Housing	Design	High-power SMD, External Aluminum Reflector
Lamp Housing	Material	Die-cast Aluminum / Anodized Aluminum
Housing Processing	Lamp	(Black, Silver color optional)
Housing Processing	Reflector	Organic Oxidation Processing, Sandblasting Processed
LED Power Supply	Type	Constant Current LED Driver with Aluminum Shell, IP65
LED Power Supply	Power cable	Waterproof Rubber CableLength: 0.3m
Heat Dissipation	LED	Thermal Conductive Adhesive, Hollow Aluminum Lamp Body
	Heat Sink	Phase-chage Tech
	LED Driver	Aluminum Shell
PSU Connection	Brown	L (Live Line)
	Blue	N (Null Line)
	Yellow (Green)	G (Ground Line)

Environmental

Working	Working Temperature	-20ºC to 45ºC
Working	Humidity Range Operating	10 % to 80 %
Storage	Temperature Range of Storage	-40ºC to 85ºC
Storage	Humidity Range of Storage	10 % to 80 %

Specification

Packing

Application

Company Show

Shenzhen Aroma Lighting Technology Co., Ltd.: Contact nameCandy Ho; Phone0086-0755-27094769; Address2nd Floor, Bldg. A5, Shuiku Road, Huangpu Baimeigang Industrial Zone, Shajing Street, Bao'an District Shenzhen,Guangdong
