Home > Products > LED T8 Tube > High Lumen Top Selling Tube Led t8
High Lumen Top Selling Tube Led t8
- Shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| LED Light Source | 2835, 2835 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100-240V | Lamp Power(W) | 20 | |
| Lamp Luminous Flux(lm) | 2100 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Warm White | Working Temperature(℃) | -20, 60 | |
| Working Lifetime(Hour) | 30000 | Lamp Body Material | Aluminum | |
| IP Rating | IP54 | Certification | CCC, CE, ETL, LVD, PSE, SAA, UL | |
| Place of Origin | Guangdong, China | Brand Name | Aroma | |
| Model Number | Other, T8, ARM-T8-HG21 |
Product Description

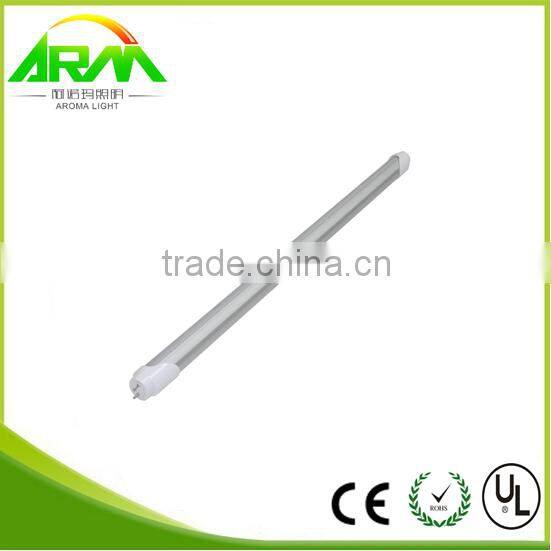

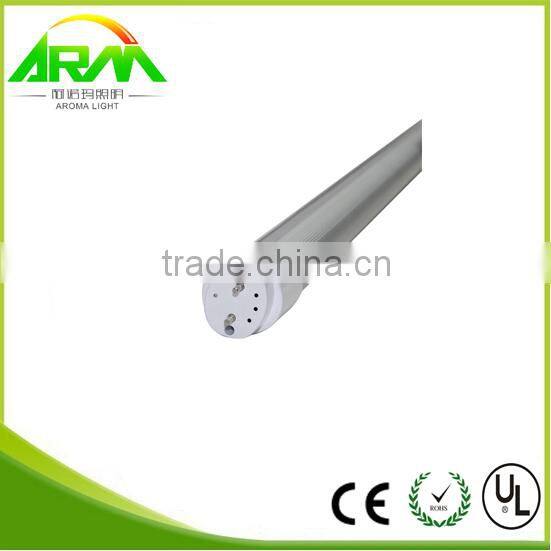

High lumen top selling tube led t8
Pictures

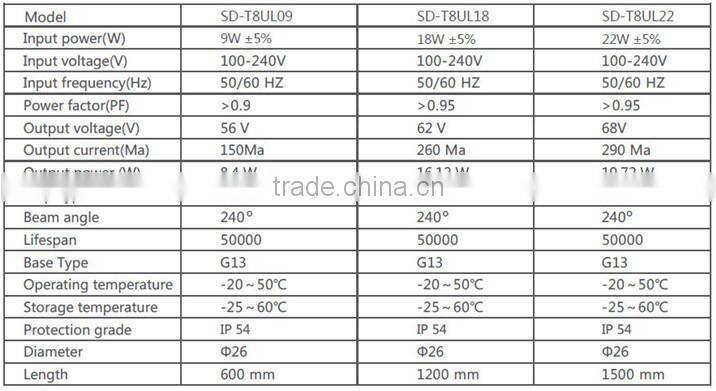

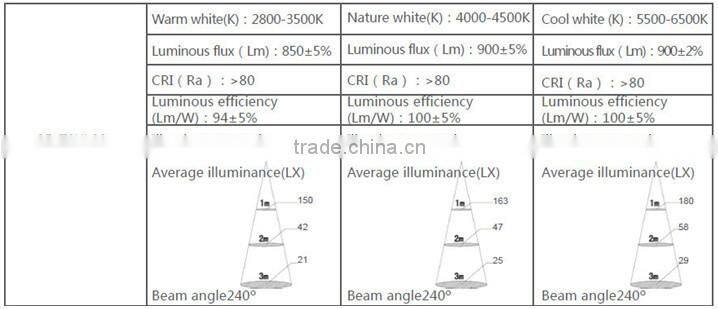

Technical Parameter of led t8 tube

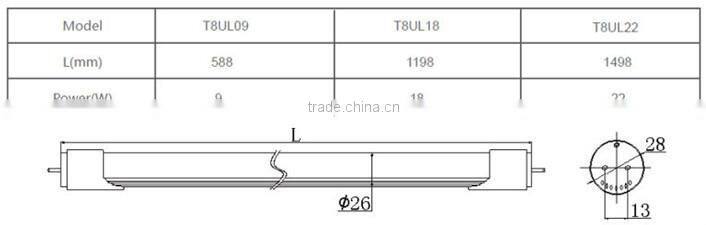

Dimension of t8

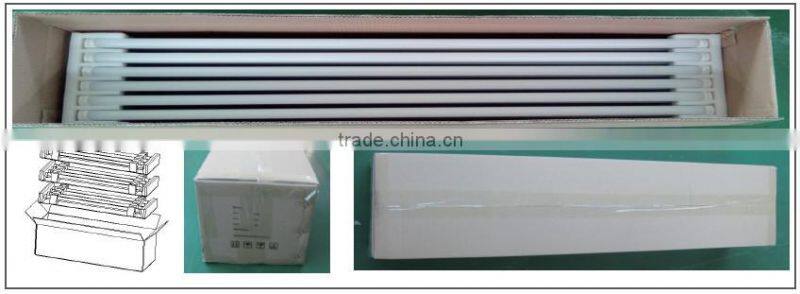

Packing

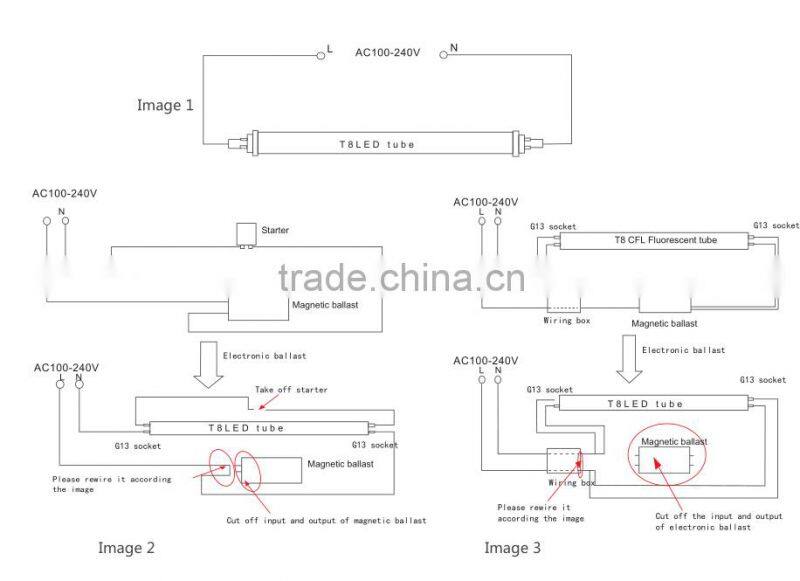

T8 LED Tube Installation Tips
1. Please cut off the mains supply before installation
2. Magnetic ballast: please take off the starter and CFL T8 fluorescent tube, then put T8 LED
Tube into the fixture,If you want to save more energy, please cut off the magnetic ballast
like the following image 2.
3. Electronic ballast:T8 LED tube can’t be compatible with electronic ballast, and have to
cut off the ballast and rewire it according the image 3,then put T8 LED tube into the fixture
4. Wiring diagram
Usage Attention
1, this product is used for indoor since it is nonwaterproof,don’t use it for outdoor, humid,
high temperature places.
2, this product is not dimmable, please don’t connect external dimmer in series
3, please don’t store it in humid environment for a long time.
4, Please confirm the input way if LED tube is as same as fixture before installation, or it burn LED tube.
5, please don’t open it or maintain it if it is fault without our approval in order to avoid accident.

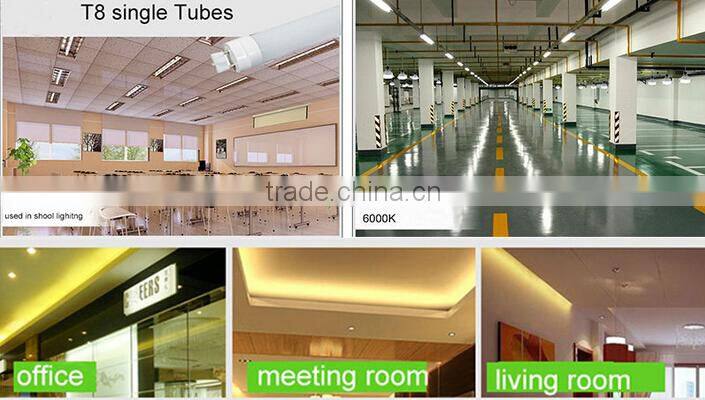

Application
