Home > Products > LED high bay light > 150w led high bay light low power consumption high quanlity led high bay light ul listed led high bay light

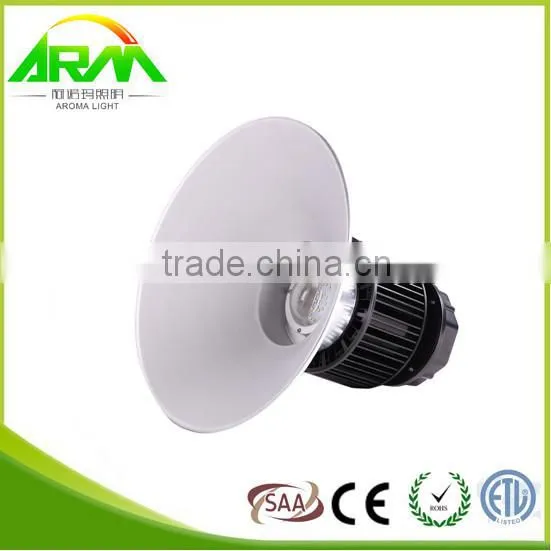

150w led high bay light low power consumption high quanlity led high bay light ul listed led high bay light
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- Hishine 80W X1 LED Linear Strip Light Led High Bay Lights
- Replacement E26 E27 Bulb High Bay LED Lights (75W)
- Replacement E26 E27 Bulb High Bay LED Lights (60W)
- Replacement E26 E27 Bulb High Bay LED Lights (45W)
- Replacement E26 E27 Bulb High Bay LED Lights (30W)
- Replacement E39 E40 CREE High Bay LED Lights (30-400W)
Product Details
LED Light Source: | Philips/Cree | Warranty(Years): | 5 | Input Voltage(V): | AC100-277V |
Lamp Power(W): | 150 | Lamp Luminous Flux(lm): | 15000 | Lamp Luminous Efficiency(lm/w): | 100 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 45 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP54 | Certification: | CE, EMC, Energy Star, ETL, FCC, LVD, PSE, SAA |
Place of Origin: | Guangdong, China | Brand Name: | AROMA | Model Number: | ARM-HB-0411M80-150W |
Product Description
150w led high bay light low power consumption high quanlity led high bay light ul listed led high bay light
Product Features:
1.Energy saving: can reach 80% compare with traditional lamps.
2.Environment friendly: No radiation, no heavy metal pollution.
3.Wide voltage constant current, stable performance, safe and reliable.
4.Optimized heat sink design to ensure a excellent heat dissipation system.
5.Low power consumption, high intensity, low lumen attenuation.
6.High brightness, high lumen.
7.Easy to install and maintain, can directly replace incandescent/halogen lamp.
8.Cree led chip.
Advantage:
Technical Data
Item No. | 150W |
Input Voltage | AC 100-277V 50Hz/60Hz |
Working Voltage | DC30-38V |
LED Type | SMD |
LED Power | 1-10W(CREE) 1-5W(PHILIPS) 1-3W(TD) |
Total Power Consumption | 150W |
Luminous Flux (±5%) | 15000lm |
Color Temperature (CCT) | 2700-7000K |
Beam Angle of Reflector (Optional) | 45°/ 90°/120° |
Color Rendering Index (CRI) | CRI>80 |
Lamp Efficiency | >90% |
LED Luminous Efficiency | 100lm/W |
Power Factor (PF) | >0.95 |
Total Harmonic Distortion (THD) | ≤10% |
Illuminance Uniformity | >0.7 |
Light Distribution | Symmetrical / Round Light Area |
LED Junction Temperature | 150ºC(CREE), 85ºC(PHILIPS),125ºC(TD3535) |
Waterproof Performance | IP 54 |
Average Lifespan | 50,000hrs |
Net Weight (without Reflector) | 6.60kgs |
Certificate | CE / RoHS / SAA / ETL/DLC |
Mechanical Specifications
Lamp Housing | Design | High-power SMD, External Aluminum Reflector |
Material | Die-cast Aluminum / Anodized Aluminum | |
Housing Processing | Lamp | (Black, Silver color optional) |
Reflector | Organic Oxidation Processing, Sandblasting Processed | |
LED Power Supply | Type | Constant Current LED Driver with Aluminum Shell, IP65 |
Power cable | Waterproof Rubber CableLength: 0.3m | |
Heat Dissipation | LED | Thermal Conductive Adhesive, Hollow Aluminum Lamp Body |
Heat Sink | Phase-chage Tech | |
LED Driver | Aluminum Shell | |
PSU Connection | Brown | L (Live Line) |
Blue | N (Null Line) | |
Yellow (Green) | G (Ground Line) |
Environmental
Working | Working Temperature | -20ºC to 45ºC |
Humidity Range Operating | 10 % to 80 % | |
Storage | Temperature Range of Storage | -40ºC to 85ºC |
Humidity Range of Storage | 10 % to 80 % |
Optional Reflector
Explosive View
Installation
Packing
Application
Company Show
Contact Us
- Shenzhen Aroma Lighting Technology Co., Ltd.
- Contact nameCandy Ho
- Phone0086-0755-27094769
- Address2nd Floor, Bldg. A5, Shuiku Road, Huangpu Baimeigang Industrial Zone, Shajing Street, Bao'an District Shenzhen,Guangdong
